Nimonic 90 Pyromet 90 Udimet 90 High Temperature Aluminium Alloys
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO 9001 |
| Model Number | Nimonic 90 |
| Minimum Order Quantity | 15 |
| Price | Bargain |
| Packaging Details | Spool package with Carton box, Coil package with polybag |
| Delivery Time | 5-21 Days |
| Payment Terms | T/T,L/C,Western Union,MoneyGram |
| Supply Ability | 300 Tons Per Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Nimonic 90 | Density | 8.18g/cm³ |
|---|---|---|---|
| Coefficient Of Expansion | 12.7 μm/m °C (20 – 100°C) | Modulus Of Elasticity | 213 KN/mm² 227 / 240 KN/mm² |
| Material | Nickel Chromium | Melting Point | 1370°C |
| Modulus Of Rigidity | 82.5 KN/mm² | ||
| Highlight | Custom Nimonic 90 Wire,Nimonic 90 Wire For Aerospace,High Temperature Aluminium Alloys For Aerospace |
||
You can tick the products you need and communicate with us in the message board.
Product Description

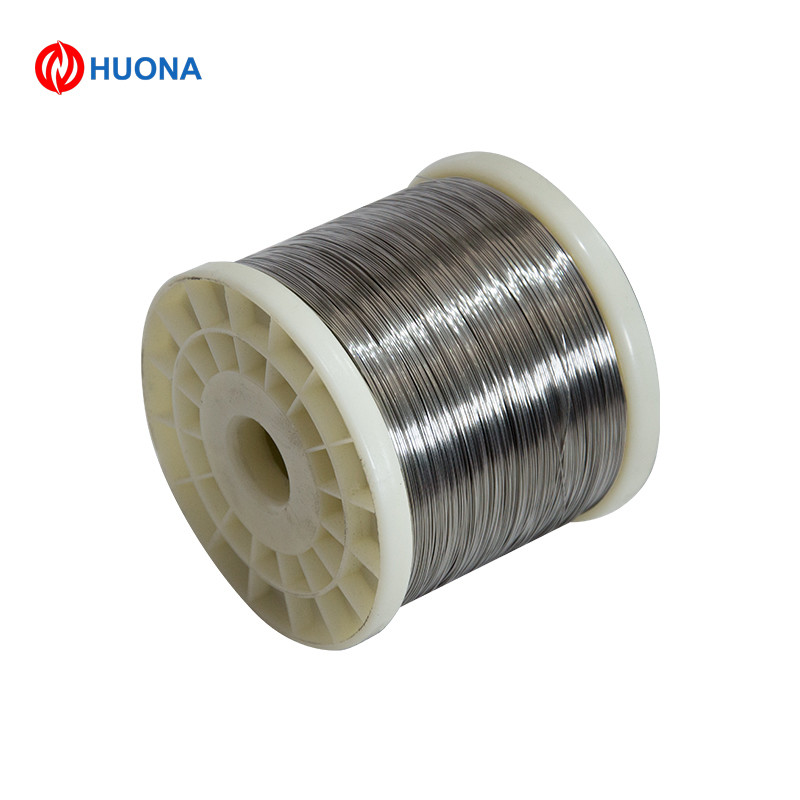

Nimonic 90 Pyromet 90 Udimet 90 High Temperature Aluminium Alloys
- Nimonic 90high temperature nickel alloy
Nimonic 90 wire, A Nickel-Chromium-Cobalt alloy being precipitation hardenable, having high stress-rupture strength and creep resistance at high temperatures up to about 950oC (1740oF). It is widely used and a well proven alloy in high temperature conditions.
Nimonic 90 is also known as Superimphy 90, Pyromet 90, and Udimet 90.
-
Nimonic 90 wire Chemical Composition
The chemical composition of Nimonic 90 wire is given in the following table.
| Element | Content (%) |
|---|---|
| Nickel, Ni | Bal |
| Chromium, Cr | 18-21 |
| Iron, Fe | ≤1.5 |
| Cobalt, Co | 15-21 |
| Titanium, Ti | 2-3 |
| Aluminum, Al | 1.0-2.0 |
| Manganese, Mn | ≤1 |
| Silicon | ≤1 |
| Others | Remainder |
-
Nimonic 90 Physical Properties
The following table discusses the physical properties of Nimonic 90.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.18 gm/cm3 | 0.296 lb/in3 |
-
Nimonic 90 Mechanical Properties
The mechanical properties of Nimonic 90 wire are tabulated below.
| Properties | ||||
|---|---|---|---|---|
| Condition | Approx. tensile strength | Approx. operating temperature depending on load^^ and environment | ||
| N/mm² | ksi | °C | °F | |
| Annealed | 800 – 1000 | 116 – 145 | – | – |
| Annealed + Aged | 1200 – 1400 | 174 – 203 | up to 550 | up to 1020 |
| Spring Temper | 1200 – 1500 | 175 – 218 | – | – |
| Spring Temper + Aged | 1500 – 1800 | 218 – 261 | up to 350 | up to 660 |
