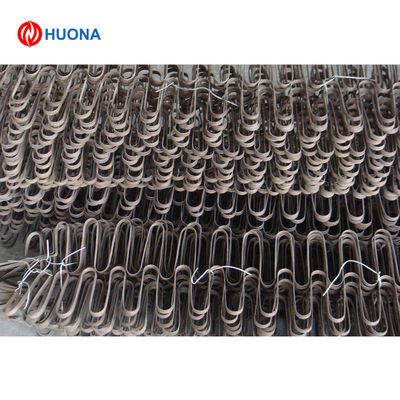

Fecral Coil Strip Heating Element For Stove 0cr25al5 Alloy Spiral Ribbon Electric Stove Flexible

  • Fecral Coil Strip Heating Element For Stove 0cr25al5 Alloy Spiral Ribbon Electric Stove Flexible
Place of Origin China
Brand Name HUONA
Certification ISO9001, RoHS
Model Number 0cr25al5
Minimum Order Quantity 1KG
Price Need to negotiate
Packaging Details Spool, Carton, Wooden Case
Delivery Time Around a week
Payment Terms T/T
Supply Ability 100 Tons/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Flexible Heating Coil Strip Element Product Type Electric Coil
Material Fe-Cr-Al Wire Form Heating Wire
Trademark HUONA Origin China
Highlight

Flexible High Temperature Alloy

,

Flexible spring metal wire

,

High Temperature Alloy For Stove
Leave a Message
Product Description
  • ver
Fecral Coil Strip Heating Element For Stove 0cr25al5 Alloy Spiral Ribbon Electric Stove Flexible

Attribute Details Attribute Details
Product Name Fecral Coil
Strip Heating Element		 Form Strip/Ribbon
Shape Coil Strip Density 7.1 g/cm³

Thermal

Conductivity

 46.1 kJ/m·h* Resistivity 1.42±5% Ω·m*
Melting Point 1500°C Surface

Bright, Acid White,

Oxidation
Hardness 200-260 Hv Elongation >12%*
Working Temperature 1250°C Transport Package Carton or Wooden Box
Specification Customizable Trademark HUONA
Origin China HS Code 7223000000
Production Capacity 100 Tons/Month

FeCrAl alloy has the characteristic of high resistivity,low temperature resistance coefficient,high operating temperature,
goodanti-oxidation and anti-corrosion under high temperature.

It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive,
and other industries producing heating elements and resistance elements.
Alloy Nomenclature Performance 1Cr13AL4 0Cr25Al5 0Cr21AL6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2

Cr 12.0-15.0 23.0-26.0 19.0-22.0 20.5-23.5 18.0-21.0 21.0-23.0 26.5-27.8

Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.3 3.0-4.2 5.0-7.0 6.0-7.0
Main Chemical composition Re opportune opportune opportune opportune opportune opportune opportune

Fe Rest Rest Rest Rest Rest Rest Rest







Nb0.5 Mo1.8-2.2
Max. continuous service temp. of element(ºC) 950 1250 1250 1250 1100 1350 1400
Resistivity at 20ºC(μΩ/m) 1.25 1.42 1.42 1.35 1.23 1.45 1.53
Density(g/cm3) 7.4 7.1 7.16 7.25 7.35 7.1 7.1
Thermal conductivity(KJ/m.h.ºC) 52.7 46.1 63.2 60.2 46.9 46.1 --
Coefficient of lines expansion(α*10-6/ºC) 15.4 16 14.7 15 13.5 16 16
Melting point approx.( ºC) 1450 1500 1500 1500 1500 1510 1520
Tensile strength(N/mm2) 580-680 630-780 630-780 630-780 600-700 650-800 680-830
Elongation at rupture(%) >16 >12 >12 >12 >12 >12 >10
Variation of area(%) 65-75 60-75 65-75 65-75 65-75 65-75 65-75
Repeat Bending frequency(F/R) >5 >5 >5 >5 >5 >5 >5
Hardness(H.B.) 200-260 200-260 200-260 200-260 200-260 200-260 200-260
continuous service time(Hours/ ºC) -- ≥80/1300 ≥80/1300 ≥80/1300 ≥80/1250 ≥50/1350 ≥50/1350
Micrographic structure Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Magnetic properties Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic
Fecral Coil Strip Heating Element For Stove 0cr25al5 Alloy Spiral Ribbon Electric Stove Flexible 0
Fecral Coil Strip Heating Element For Stove 0cr25al5 Alloy Spiral Ribbon Electric Stove Flexible 1
Fecral Coil Strip Heating Element For Stove 0cr25al5 Alloy Spiral Ribbon Electric Stove Flexible 2
Fecral Coil Strip Heating Element For Stove 0cr25al5 Alloy Spiral Ribbon Electric Stove Flexible 3
