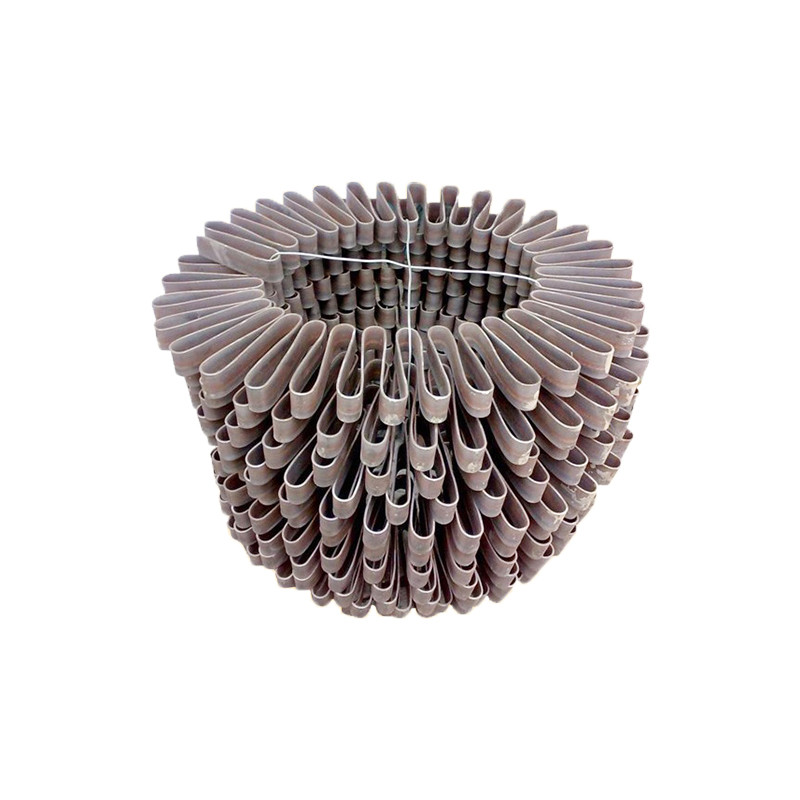

Z-Shaped Furnace Annealed Strip 0cr21al6nb Hn A1 Heating Element Resistance Ribbon

Place of Origin	CHINA
Brand Name	HUONA
Certification	ISO9001
Model Number	0cr21al6nb
Minimum Order Quantity	10KG
Price	Negotiate
Packaging Details	Spool, Carton, Wooden Case
Delivery Time	Around a week
Payment Terms	T/T
Supply Ability	300 Tons/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Z-Shaped Furnace Annealed Strip	Composition	0cr21al6nb
Product Shape	Z-shaped	Product Type	Strip
Product Usage	Heating Resistance Element For Urnace	Sample	Support
MOQ	10KG	Origin	China
Highlight	Z-Shaped Heating element , 0cr21al6nb Heating Strip , Fecral Heating Ribbon For Furnace

Leave a Message

Product Description

Company Info.

Z-shaped Furnace Annealed Strip Resistance / 0cr21al6nb / Hn A1/Heating Resistance Ribbon

Attribute	Details	Attribute	Details
Model NO.	Hn A1	Chemical Composition	0Cr21Al6Nb*
Product Name	Heating Resistance Strip	Characteristics	High Resistivity, Good Oxidation Resistance
The Highest Use Temperature	1400°C	Density	7.1 g/cm³
Resistivity*	1.45 μΩ·m	Elongation	>10%
Sample	Support	Transport Package	Wooden Cases or Cartons
Specification	Customizable	Trademark	HUONA
Origin	China	HS Code	7408220000
Production Capacity	300 Tons/Month

Kan-thal A-1 large-sized cold-drawn wire products can be used for high-temperature resistance furnace. Practice has proved that: the product process is stable,
integrated performance is good. Has good high temperature oxidation resistance and longer service life; excellent winding properties at room temperature
processing, ease of processing molding; little rebound resilience and so on. Processing performance is very good; operating temperature can reach 1400 ºC.
Main specifications and uses:

Conventional Product specifications: 0.5 ~ 10 mm

Uses: mainly used in powder metallurgy furnace, diffusion furnace, radiant tube heater and all kinds of high-temperature furnace heating body.

MAIN CHEMICAL ELEMENTS AND PROPERTIES

Properties Grade

25.0

6.0

Suitable

Balance

Max Continuous Service Temperature(ºC)

Diameter 1.0-3.0

Diameter large than 3.0,

1225-1350ºC

1400ºC

Resisivity 20ºC (ohm*mm2/m)

1.45

Density(g/cm³)

7.1

Approximate Melting Point( ºC)

1500

Elongation (%)

16-33

Repeatedly Bend Frequency(F/R) 20ºC

7-12

Continuous Service Time under 1350 ºC

More than 60 hours

Micrographic Structure

Ferrite

The relationship between the maximum operating temperature and the furnace atmosphere

Furnace

Dry Air

Humid Air

hydrogen-argon

Argon

Decomposition

atmosphere

gas

ammonia gas

Temp(ºC)

1400

1200

1400

950

1200

User Manual

Rated Voltage: 220V/380V

The installation process to avoid knocking, to avoid the damp, hand-held stove wire, they should wear gloves. Wire should be installed after the furnace
has remained flat, and prevent surface scratches, dirt, corrosion, or improper installation, by affecting the life of

In the rated voltage to use. In strong reducing atmosphere, acid atmosphere, an atmosphere of high humidity will affect the use of life;

Temperature before use should be in dry non-corrosive atmosphere, about 1000 ºC spend a few hours, so that furnace wire protective film formed
on the surface after normal use, so that can guarantee the normal life of furnace wire;

Furnace installation should ensure that the insulated wire good power to avoid touching furnace after the wire, guard against electric shock or burns.
