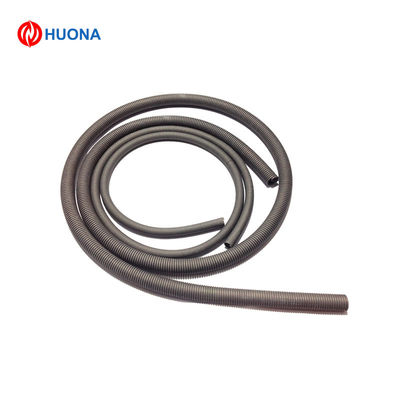

Heating Cr20Ni80 Element 3000W AC 220V Resistance Coil Nichrome Resistance Wire For Furnace

  • Heating Cr20Ni80 Element 3000W AC 220V Resistance Coil Nichrome Resistance Wire For Furnace
Place of Origin China
Brand Name HUONA
Certification ISO9001, RoHS
Model Number Ni80Cr20
Minimum Order Quantity 3KG
Price $15/KG-$28/ KG
Packaging Details Spool, Carton, Wooden Case
Delivery Time Around a week
Payment Terms T/T
Supply Ability 100 Ton/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Heating Cr20ni80 Element Product Type Coil Wire
Product Composition Ni80Cr20 Application Aviation, Electronics, Industrial, Medical, Chemical
Customization ODM/OEM Condition Soft Annealed
Highlight

Coil Heating Element For Furnace

,

3000w Coil Heating Element

,

Nichrome Resistance Wire For Furnace
Leave a Message
Product Description
  • Overview
  • Product Descriptio



Basic Info.

Product name
Cr20ni80 Heating Element
Purity
78%
Alloy
Nicr Alloy
Type
Nickel Coil
Powder
Not Powder
Density
8.4 g/cm3
Elongation
≥20%
Delivery Time
7 Working Days
Max Continuous Operating Temperature
1200℃
Technique
Cold Drawing
Treatment
Hydrogen Annealing
Surface
Bright, Acid White, Oxidation
Condition
Soft Annealed
MOQ
3kg
Transport Package
Carton or Wooden Case
Specification
0.018-8mm
Trademark
HUONA
Origin
China
HS Code
7506100000
Production Capacity
100 Tons/Month

Product Description

Heating Cr20Ni80 Element 3000W AC 220V Resistance Coil Nichrome Resistance Wire For Furnace

The material NiCr8020 with the material number 2.4869 is applied in the form of strips, sheets, tubes and wires for furnace construction components and heating conductors.

This is a unique nickel-chromium heating conductor alloy, engineered to function optimally at operating temperatures reaching up to 1150 °C. Distinctively, it often incorporates additives of rare earth elements. These additives significantly enhance its oxidation resistance, particularly in scenarios involving frequent on-off switching operations or substantial temperature fluctuations.

Exhibiting remarkable atmospheric corrosion resistance at 20 °C, this alloy maintains a high level of resistance to air and various oxygen-rich gases throughout its operational temperature range. It also demonstrates excellent resistance to nitrogen-based low-oxygen gases. However, it shows relatively low resistance when exposed to both oxidizing and reducing gases that contain sulfur.
Heating Cr20Ni80 Element 3000W AC 220V Resistance Coil Nichrome Resistance Wire For Furnace 0
Heating Cr20Ni80 Element 3000W AC 220V Resistance Coil Nichrome Resistance Wire For Furnace 1

Product Description



Chemical Composition and Propertes:
Propertes/Grade NiCr 80/20 NiCr 70/30 NiCr 60/15
Main Chemical Composition(%) Ni Bal. Bal. 55.0-61.0
Cr 20.0-23.0 28.0-31.0 15.0-18.0
Fe ≤ 1.0 ≤ 1.0 Bal.
Max Working Temperature(ºC) 1200 1250 1150
Resistivity at 20ºC(μ Ω · m) 1.09 1.18 1.12
Density(g/cm3) 8.4 8.1 8.2
Thermal Conductivity(KJ/m· h· ºC) 60.3 45.2 45.2
Coefficient of Thermal Expansion(α × 10-6/ºC) 18 17 17
Melting Point(ºC) 1400 1380 1390
Elongation(%) > 20 > 20 > 20
Micrographic Structure austenite austenite austenite
Magnetic Property nonmagnetic nonmagnetic nonmagnetic

Propertes/Grade NiCr 35/20 NiCr 30/20 Karma Evanohm
Main Chemical Ni 34.0-37.0 30.0-34.0 Bal Bal
Composition(%) Cr 18.0-21.0 18.0-21.0 19.0-21.5 19.0-21.5
  Fe Bal. Bal. 2.0-3.0 -
Max Working Temperature(ºC) 1100 1100 300 1400
Resistivity at 20ºC 1.04 1.04 1.33 1.33
(μ Ω · m)
Density(g/cm3) 7.9 7.9 8.1 8.1
Thermal Conductivity 43.8 43.8 46 46
(KJ/m· h· ºC)
Coefficient of Thermal 19 19 - -
Expansion(α × 10-6/ºC)
Melting Point(ºC) 1390 1390 1400 1400
Elongation(%) > 20 > 20 > 20 > 20
Micrographic Structure austenite austenite austenite austenite
Magnetic Property nonmagnetic nonmagnetic nonmagnetic nonmagnetic

Typical Mechanical properties(1.0mm)

  1. Elongation: 30%
  2. Yield Strength: 420Mpa
  3. Tensile Strength: 810Mpa
Chemical Composition Nickel 80%, Chrome 20%
Condition Bright/Acid white/Oxidied Color

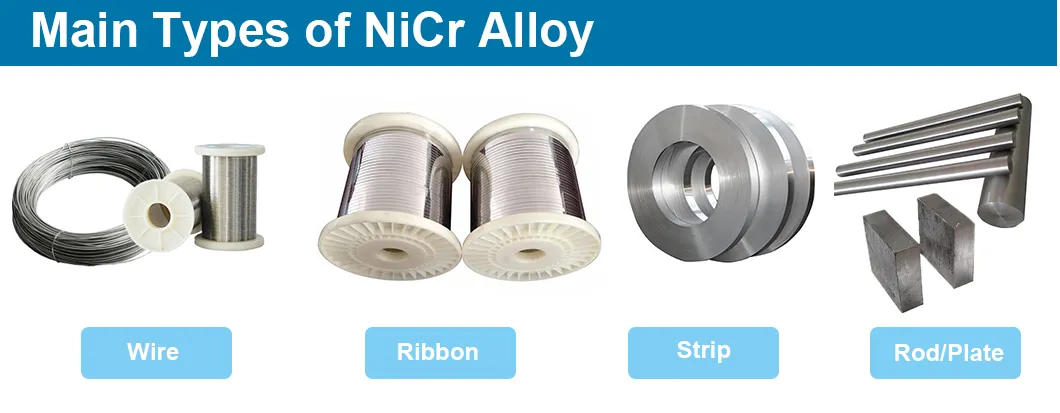

Diameter 0.018mm~1.6mm in spool, 1.5mm-8mm packing in coil, 8~60mm in rod
Nichrome Round Wire Diameter 0.018mm~10mm
Nichrome Ribbon Width 5~0.5mm, thickness 0.01-2mm
Nichrome Strip Width 450mm~1mm, thickness 0.001m~7mm
Diameter 1.5mm-8mm packing in coil, 8~60mm in rod
Grade Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe,
Ni30Cr20 Ni80, Ni70,Ni60, Ni40,
Advantage The metallurgical structure of nichrome
confers them a very good plasticity when cold.
Characteristics Stable performance; Anti-oxidation; Corrosion resistance;
High temperature stability; Excellent coilforming ability;
Uniform and beautiful surface condition without spots.
Usage Resistance heating elements;Material in metallurgy,
Household appliances;Mechanical manufacturing and
other industries.
Resistance Wires
RW30 W.Nr 1.4864 Nickel 37%, Chrome 18%, Iron 45%
RW41 UNS N07041 Nickel 50%, Chrome 19%, Cobalt 11%, Molybdenum 10%, Titanium 3%
RW45 W.Nr 2.0842 Nickel 45%, Copper 55%
RW60 W.Nr 2.4867 Nickel 60%, Chrome 16%, Iron 24%
RW60 UNS NO6004 Nickel 60%, Chrome 16%, Iron 24%
RW80 W.Nr 2.4869 Nickel 80%, Chrome 20%
RW80 UNS NO6003 Nickel 80%, Chrome 20%
RW125 W.Nr 1.4725 Iron BAL, Chrome 19%, Aluminium 3%
RW145 W.Nr 1.4767 Iron BAL, Chrome 20%, Aluminium 5%
RW155   Iron BAL, Chrome 27%, Aluminium 7%, Molybdenum 2%
