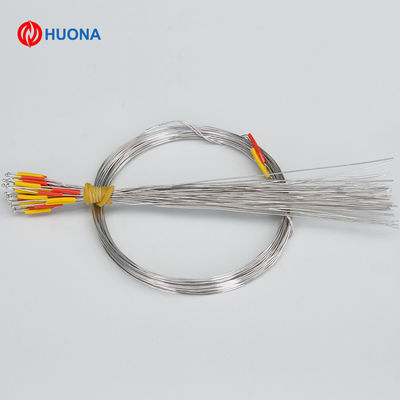

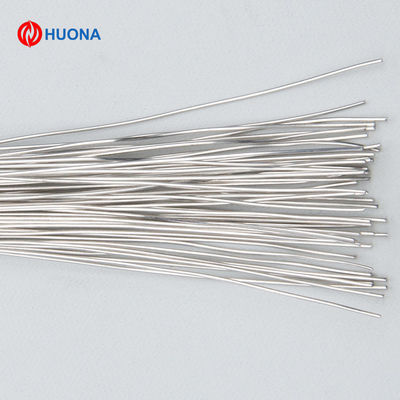

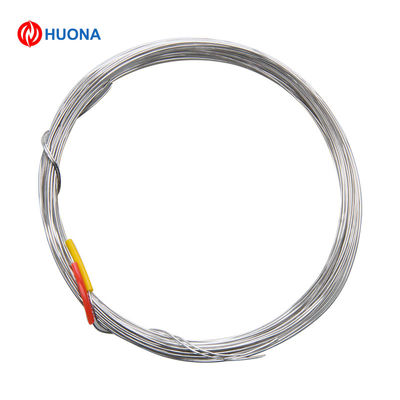

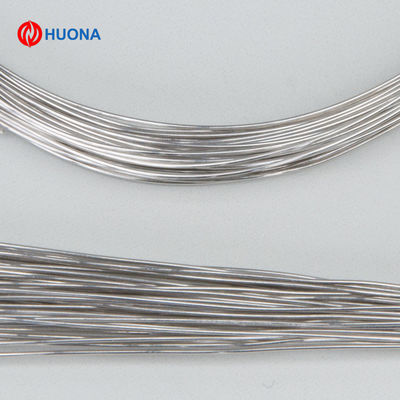

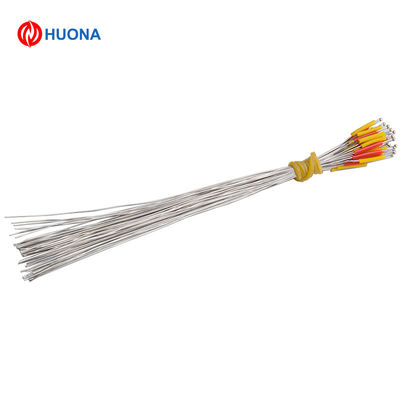

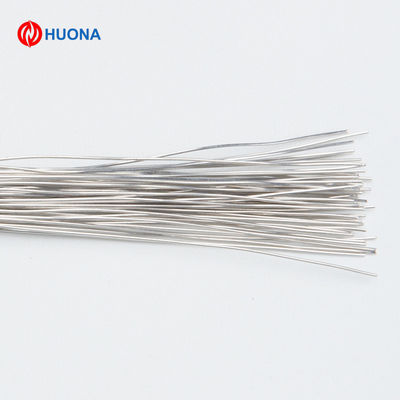

Platinum Type R Thermocouple Bare Wire FB 0.5mm For High Temperature Applications
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO 9001 |
| Model Number | Type R |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Spool package with Carton box, Coil package with polybag |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Thermocouple Bare Wire | Color | Bright |
|---|---|---|---|
| Temperature Range | -58 To 2700F (-50 To 1480℃) | EMF Tolerance | +/- 1.5C Or +/- .25% |
| Positive | Platinum Rhodium | Negative | Platinum |
| Highlight | Type R Thermocouple Bare Wire,Type R thermocouple extension wire,Platinum Thermocouple Bare Wire |
||
Product Description
- Thermocouple Wire
Type R Thermocouple (Platinum Rhodium -13% / Platinum):
The Type R is used in very high temperature applications. It has a higher percentage of Rhodium than the Type S, which makes it more expensive. The Type R is very similar to the Type S in terms of performance. It is sometimes used in lower temperature applications because of its high accuracy and stability. Type R has a slightly higher output and improved stability over the type S.
Type R, S, and B thermocouples are "Noble Metal" thermocouples, which are used in high temperature applications.
Type S thermocouples are characterized by a high degree of chemical inertness and stability at high temperatures. Often used as a standard for calibration of base metal thermocouples.
Platinum rhodium thermocouple(S/B/R TYPE)
Platinum Rhodium Assembling Type Thermocouple is widely used in production places with high temperature. It is mainly used to measure temperature in glass and ceramic industry and industrial salting.
Insulation material: PVC, PTFE, FB or as per the customer's requirement.
Type R Temperature Range:
- Thermocouple grade wire, -58 to 2700F (-50 to 1480C)
- Extension wire, 32 to 392F (0 to 200C)
Accuracy (whichever is greater):
- Standard: +/- 1.5C or +/- .25%
- Special Limits of Error: +/- 0.6C or 0.1%
Consideration for bare wire type R thermocouple applications:
- Heating - Gas burners for ovens
- Cooling - Freezers
- Engine protection - Temperatures and surface temperatures
- High temperature control - Iron casting
- Thermocouple Wire
| Code | Wires component of the thermocouple | |
| +Positive leg | -Negative leg | |
| N | Ni-cr-si (NP) | Ni-si-magnesium (NN) |
| K | Ni-Cr (KP) | Ni-Al(Si) (KN) |
| E | Ni-Cr (EP) | Cu-Ni<constantan> (EN) |
| J | Iron (JP) | Cu-Ni<constantan> (JN) |
| T | Copper (TP) | Cu-Ni<constantan> (TN) |
| B | Platinum Rhodium-30% | Platinum Rhodium-6% |
| R | Platinum Rhodium-13% | Platinum |
| S | Platinum Rhodium-10% | Platinum |
- Standards
| ASTM | ANSI | IEC | DIN | BS | NF | JIS | GOST |
| (American Society for Testing and Materials) E 230 | (American National Standard Institute) MC 96.1 | (European Standard by the International Electrotechnical Commission 584)-1/2/3 | (Deutsche Industrie Normen) EN 60584 -1/2 | (British Standards) 4937.1041, EN 60584 - 1/2 | (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 | (Japanese Industrial Standards) C 1602 - C 1610 | (Unification of the Russian Specifications) 3044 |
- Size range
Wire: 0.1 to 8.0 mm.
- Working temperature:
|
- Chemical Composition
|
