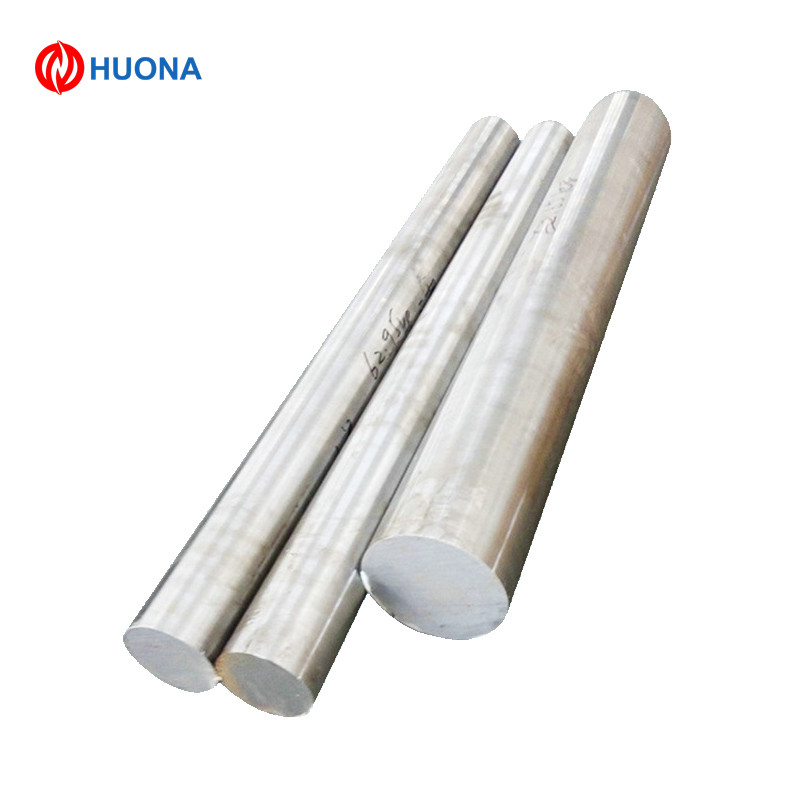

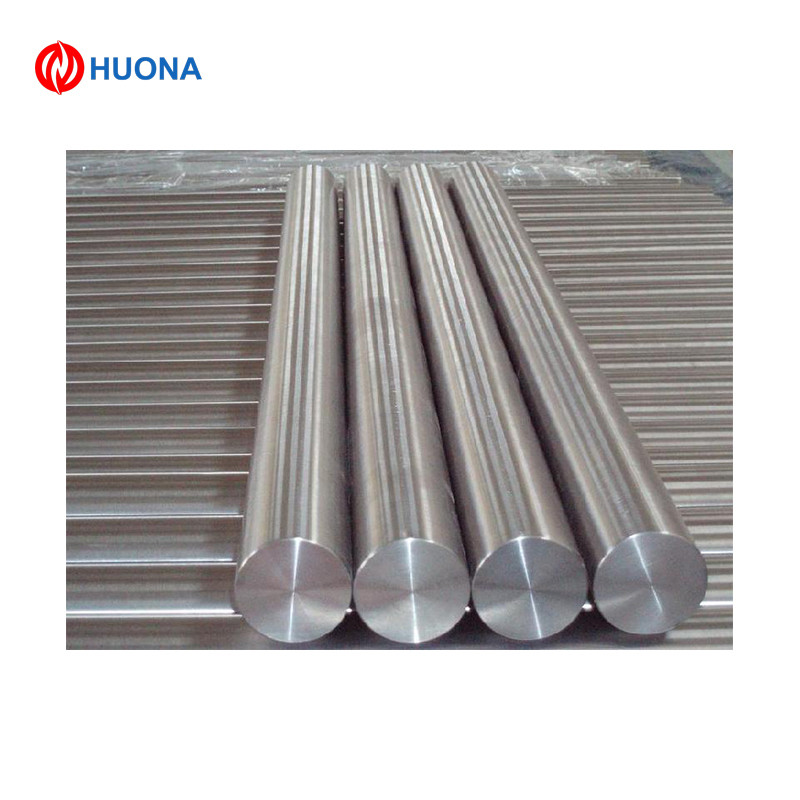

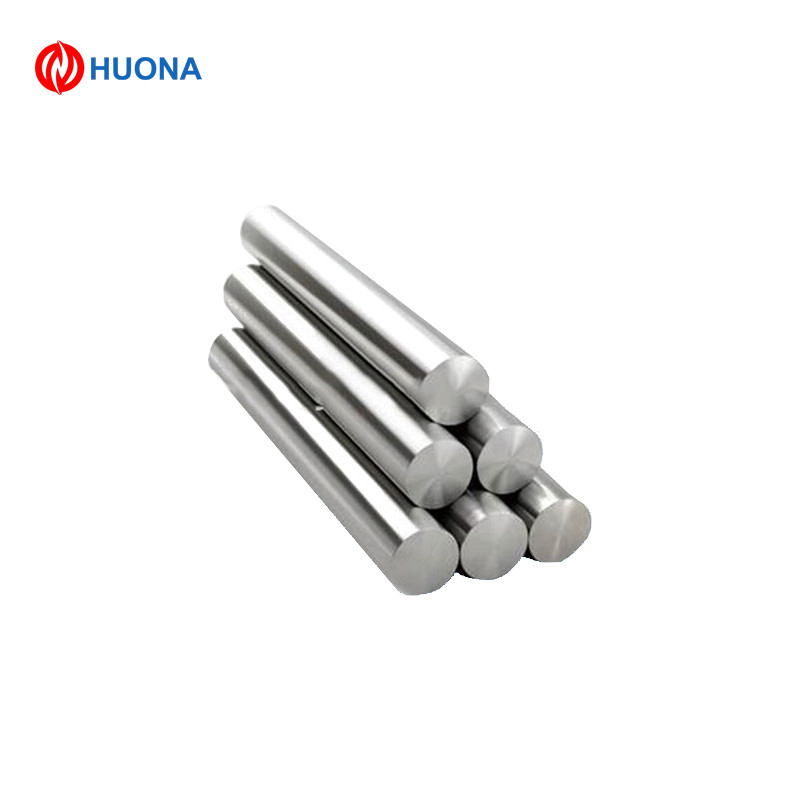

Industrial High Temperature Alloy Nimonic 75 UNS N06075/2.4951 Nickel Chromium Rod
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | Nimonic 75 |
| Minimum Order Quantity | 10 |
| Price | Bargain |
| Packaging Details | Spool Package With Carton Box, Coil Package With Polybag |
| Delivery Time | 5-21 Days |
| Payment Terms | T/T,Western Union,,L/C |
| Supply Ability | 300 Tons Per Month |
Product Details
| Product Name | Nimonic 75 | Density | 8.37g/cm³ |
|---|---|---|---|
| Coefficient Of Expansion | 11.0 μm/m °C (20 – 100°C) | Melting Point | 1380°C |
| Annealed | 700 – 800N/mm² | Material | Nickel Chromium |
| Highlight | industrial High Temperature Alloy,industrial Nickel Chromium Rod,N06075 High Temperature Alloy |
||
Product Description
Industrial High Temperature Alloy Nimonic 75
UNS N06075/2.4951 Nickel Chromium Rod
Product Overview
Nimonic 75 (UNS N06075/2.4951) is a creep-resistant nickel chromium 80/20 alloy with controlled additions of titanium and carbon. This high-temperature alloy offers excellent resistance to oxidizing atmospheres under 800°C, making it ideal for gas turbine engineering, industrial thermal processing, furnace components, and heat-treatment equipment.
Chemical Composition
| Element | Content (%) |
|---|---|
| Nickel (Ni) | Balance |
| Chromium (Cr) | 19-22 |
| Iron (Fe) | Max 1.0 |
| Phosphorus (P) | Max 0.015 |
| Copper (Cu) | Max 0.2 |
| Aluminum (Al) | Max 0.15 |
| Titanium (Ti) | 0.15-0.35 |
| Carbon (C) | Max 0.12 |
| Manganese (Mn) | Max 0.70 |
| Silicon (Si) | Max 0.80 |
| Sulfur (S) | Max 0.02 |
Material Specifications
| Grade | UNS | Werkstoff Nr. |
|---|---|---|
| Nimonic 75 | N06075 | 2.4951 |
Physical Properties
| Property | Value |
|---|---|
| Density | 8.4 g/cm³ |
| Melting Point | 1374°C - 1420°C |
Thermal Conduction
| Temperature (°C) | Thermal Conductivity (W/(m·°C)) |
|---|---|
| 100 | 15.1 |
| 200 | 16.3 |
| 300 | 18.0 |
| 400 | 19.3 |
| 500 | 20.9 |
| 600 | 22.2 |
| 700 | 23.4 |
| 800 | 25.1 |
| 900 | 26.4 |
Coefficient of Linear Expansion
| Temperature Range (°C) | Coefficient (10⁻⁶/°C) |
|---|---|
| 20-100 | 12.8 |
| 20-200 | 13.5 |
| 20-300 | 18.0 |
| 20-400 | 19.3 |
| 20-500 | 20.9 |
| 20-600 | 22.2 |
| 20-700 | 23.4 |
| 20-800 | 25.1 |
| 20-900 | 26.4 |
Available Size Range
- Nimonic 75 Wire: ￠0.1mm - ￠9mm
- Nimonic 75 Bar: ￠11mm - ￠200mm
- Nimonic 75 Strip: 75-110mm × 0.15-22mm
