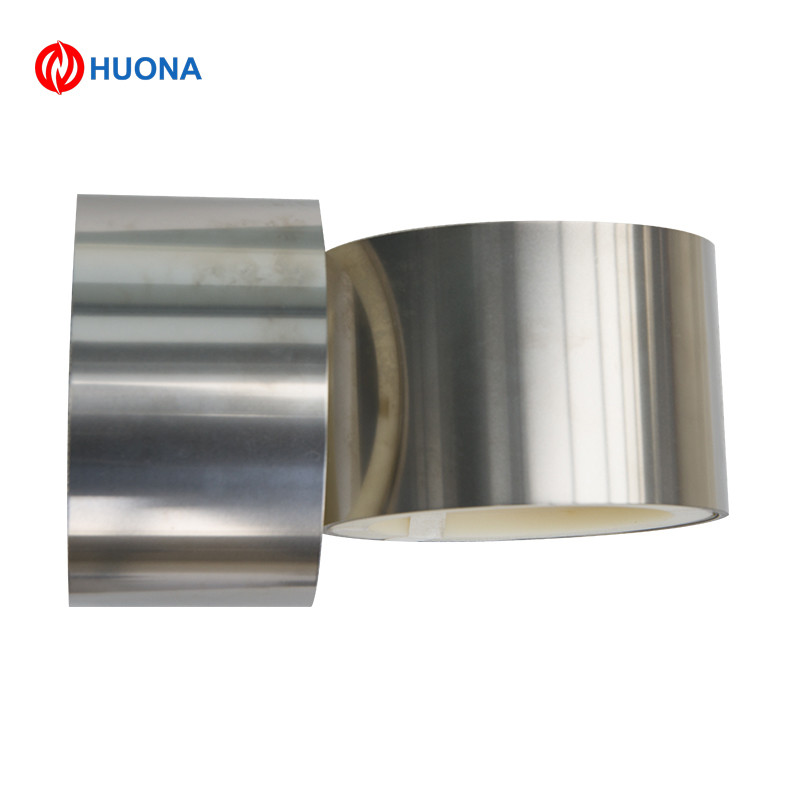

0Cr15Al5 Strip Iron Chromium Aluminium Resistance Alloy For Furnace Application

  • 0Cr15Al5 Strip Iron Chromium Aluminium Resistance Alloy For Furnace Application
Place of Origin CHINA
Brand Name HUONA
Certification ISO9001
Model Number 0Cr15Al5
Minimum Order Quantity 10KG
Price Negotiate
Packaging Details Spool, Carton, Wooden Case
Delivery Time Around a week
Payment Terms T/T
Supply Ability 100 Tons/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Resistance Strip Product Grade 0cr15al5
Product Type Strip Characteristics High Resistivity, Good Oxidation Resistance
Application Dynamic Braking Resistors, Heating Resistor Advantage Large Volume Weight,Uniform Resistance
MOQ 10KG Origin China
Highlight

0Cr15Al5 Strip

,

Iron Chromium Aluminium Resistance Alloy Strip

,

Fecral Ribbon For Furnace
Leave a Message
Product Description

Product Description

Company Info.

Basic Info.


Attribute Details Attribute Details
Model NO. 0Cr15Al5 Chemical
Composition		 0Cr15Al5
Product Name Heating Resistance Strip Characteristics High Resistivity,
Good Oxidation Resistance
The Highest
Use Temperature		 1350°C Density 7.1 g/cm³
Resistivity 1.45 Elongation >12%
Sample Support Thickness Customizable
Width Customizable Application Dynamic Braking Resistors,
Heating Resistor
Advantage Large Volume Weight,
Uniform Resistance		 Transport
Package		 Wooden Cases or Cartons
Specification Customizable Trademark HUONA
Origin China HS Code 7408220000
Production Capacity 300 Tons/Month



Product Description

Factory 0Cr15Al5 Strip Iron Chromium Aluminium Resistance Alloy For Furnace Applications

application area

Our products are widely used in heat treatment equipment, auto parts, iron and steel manufacturing,

aluminum industry, metallurgical equipment, petrochemical equipment, glass machinery, ceramic machinery,

food machinery, pharmaceutical machinery, and power engineering industry.

Chemical Content, %

Alloy material Chemical composition %
C P S Mn Si Cr Ni Al Fe others
max(≤)
1Cr13Al4 0.12 0.025 0.025 0.7 ≤1.00 12.5-15.0 - 3.5-4.5 Rest -
0Cr15Al5 0.12 0.025 0.025 0.7 ≤1.00 14.5-15.5 - 4.5-5.3 Rest -
0Cr25Al5 0.06 0.025 0.025 0.7 ≤0.60 23.0-26.0 ≤0.60 4.5-6.5 Rest -
0Cr23Al5 0.06 0.025 0.025 0.7 ≤0.60 20.5-23.5 ≤0.60 4.2-5.3 Rest -
0Cr21Al6 0.06 0.025 0.025 0.7 ≤1.00 19.0-22.0 ≤0.60 5.0-7.0 Rest -
0Cr19Al3 0.06 0.025 0.025 0.7 ≤1.00 18.0-21.0 ≤0.60 3.0-4.2 Rest -
0Cr21Al6Nb 0.05 0.025 0.025 0.7 ≤0.60 21.0-23.0 ≤0.60 5.0-7.0 Rest Nb add0.5
0Cr27Al7Mo2 0.05 0.025 0.025 0.2 ≤0.40 26.5-27.8 ≤0.60 6.0-7.0 Rest

Main technical characteristics of FeCrAl Alloy:

Brand

Property

 1Cr13Al4 1Cr21Al4 0Cr21Al6 0Cr23Al5 0Cr25Al5 0Cr21Al6Nb 0Cr27Al7Mo2
Major chemical component% Cr 12.0-12.5 17.0-21.0 19.0-22.0 20.5-23.5 23.0-26.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 2.0-4.0 5.0-7.0 4.2-5.3 4.5-6.5 5.0-7.0 6.0-7.0
Fe Balance Balance Balance Balance Balance Balance Balance
Re Appropriate Appropriate Appropriate Appropriate Appropriate Appropriate Appropriate






Addition Nb:0.5

Addition

Mo:1.8-2.2
Component max. use temperature 950 1100 1250 1250 1250 1350 1400
Melting Point 1450 1500 1500 1500 1500 1510 1510
Density g/cm3 7.40 7.35 7.16 7.25 7.10 7.10 7.10
Resistivity μΩ·m,20 1.25±0.08 1.23±0.06 1.42±0.07 1.35±0.06 1.45±0.07 1.45±0.07 1.53±0.07
Tensile Strength Mpa 588-735 637-784 637-784 637-784 637-784 637-784 684-784
Extension rate% 16 12 12
12 12 10
Repeated bending frequency

5 5 5 5 5
Fast lift h/ -

80/1300 80/1300
50/1350
Specific Heat J/g. 0.490 0.490 0.520 0.460 0.494 0.494 0.494
Heat Conduction Coefficient KJ/M.h 52.7 46.9 63.2 60.1 46.1 46.1 45.2

Linear expansion coefficient aX10-6/

(20-1000)

 15.4 13.5 14.7 15.0 16.0 16.0 16.0
Hardness HB 200-260 200-260 200-260 200-260 200-260 200-260 200-260
Microstructure Ferritic Ferritic Ferritic Ferritic Ferritic Ferritic Ferritic
Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic

0Cr15Al5 Strip Iron Chromium Aluminium Resistance Alloy For Furnace Application 00Cr15Al5 Strip Iron Chromium Aluminium Resistance Alloy For Furnace Application 1
0Cr15Al5 Strip Iron Chromium Aluminium Resistance Alloy For Furnace Application 2
0Cr15Al5 Strip Iron Chromium Aluminium Resistance Alloy For Furnace Application 3
0Cr15Al5 Strip Iron Chromium Aluminium Resistance Alloy For Furnace Application 4
