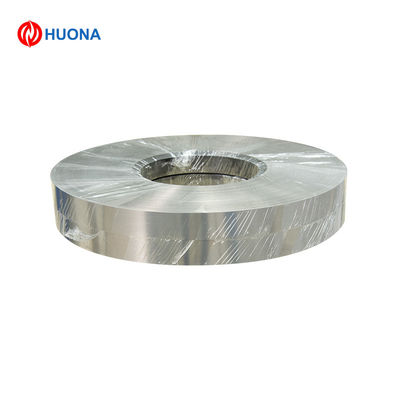

0.1-3mm Thickness 1Cr13Al4 Strip Fecral Tape Ribbon For Coils Braking Resistor

  • 0.1-3mm Thickness 1Cr13Al4 Strip Fecral Tape Ribbon For Coils Braking Resistor
Place of Origin CHINA
Brand Name HUONA
Certification ISO9001
Model Number Cr13al4
Minimum Order Quantity 10KG
Price Negotiate
Packaging Details Spool, Carton, Wooden Case
Delivery Time Around a week
Payment Terms T/T
Supply Ability 100 Tons/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1Cr13Al4 Strip Product Shape Strip
Product Model No. 1Cr13al4 Main Composition Fecral
Hardness 200~260hb Surface Bright Or Oxidation
MOQ 10KG Origin China
Highlight

1Cr13Al4 Strip

,

Fecral Tape Ribbon

,

0.04mm-0.1mm Thickness
Leave a Message
Product Description

Product Description


Basic Info.

Model NO. 1Cr13Al4 Strip Grade 1Cr13AI4
Certification ISO, RoHS, AISI, ASTM, GB Shape Strip
Technique Cold Rolled Surface Treatment Bright
Hardness 200~260 HB Melting Point 1500°C
Density 7.4 g/cm³ The Highest Temperature 1250°C
OEM Yes Sample Free
Surface Bright or Oxidation Thickness 0.1–3 mm
Width 5–200 mm Transport Package Waterproof Paper, Wooden Case
Specification 0.1–3 mm × 5–200 mm Trademark Huona
Origin China HS Code 7408229000
Production Capacity 2000 ton/Year

Product Description

1cral 13/4 Tape for double strip coils Braking Resistor

Thickness: 0.1mm to 3mm
Width: 5mm to 200mm
Mainly used in elecrica heating furnace, locomotive resistor part.

Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability;
Uniform and beautiful surface condition without spots.

Packing detail
Spool, coil, wooden case(as per client's requiryment)
C P S Mn Si Cr Ni Al Fe Other
Max0.12 Max 0.025 Max 0.025 Max 0.70 Max 1.0 12.0~15.0 Max 0.60 4.0~6.0 Bal. -


Mechanical Properties
Max Continuous Service Temp 950℃
Resisivity at 20C 1.25 ohm mm2/m
Density 7.4 g/cm3
Thermal Conductivity 52.7 KJ/m@h@C
Coefficient of Thermal Expansion 15.4×10-6/C
Melting Point 1450C
Tensile Strength 588~735 Mpa
Elongation Min 12%
Section Variation Shrink Rate 65~75%
Repeatedly Bend Frequency Min 5 times
Continuous Service Time -
Hardness 200-260HB
Micrographic Structure Ferrite
Magnetic Property Magnetic

Temperature Factor( degree Celsius)of Electrical Resistivity
20 100 200 300 400 500 600 700 800 900 1000
1 1.005 1.014 1.028 1.044 1.064 1.090 1.120 1.132 1.142 1.150


0.1-3mm Thickness 1Cr13Al4 Strip Fecral Tape Ribbon For Coils Braking Resistor 0
