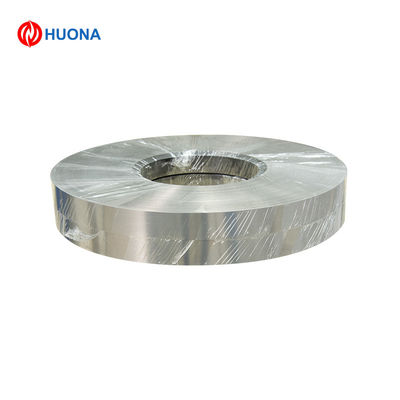

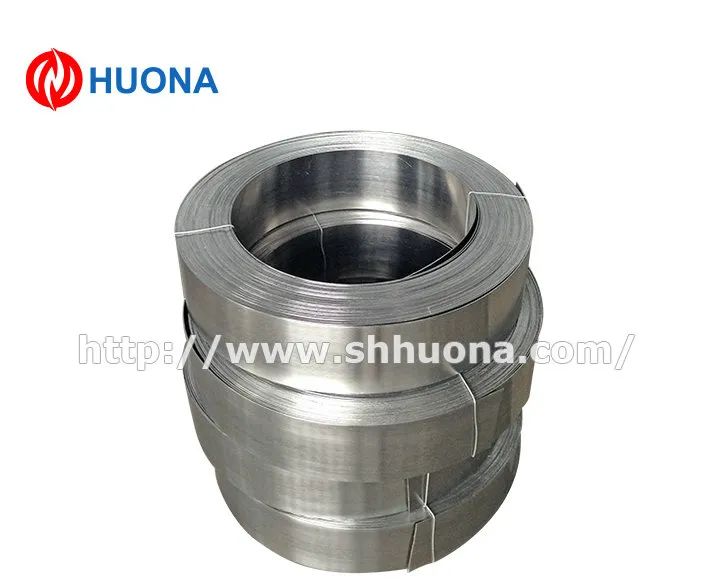

0.04mm-0.1mm Thickness 1cral 13/4 Tape For Double Strip Coils Braking Resistor

  • 0.04mm-0.1mm Thickness 1cral 13/4 Tape For Double Strip Coils Braking Resistor
Place of Origin China
Brand Name HUONA
Certification ISO9001, RoHS
Model Number Cr13al4
Minimum Order Quantity 1KG
Price $17/KG-$18/ KG
Packaging Details Spool, Carton, Wooden Case
Delivery Time Around a week
Payment Terms T/T
Supply Ability 100 Ton/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1cral 13/4 Tape For Double Strip Coils Braking Resistor Product Shape Strip
Product Model No. Cr13al4 Strip Technique Technique
Hardness 200~260hb Surface Bright Or Oxidation
Highlight

260hb Hardness High Temperature Alloy

,

260hb Hardness nickel iron alloy strip

,

Cold Rolled High Temperature Alloy
Leave a Message
Product Description

Product Description


Basic Info.

Model NO. Cr13Al4 Strip Grade 134
Certification ISO, RoHS, AISI, ASTM, GB Shape Strip
Technique Cold Rolled Surface Treatment Bright
Hardness 200~260 HB Melting Point 1500°C
Density 7.4 g/cm³ The Highest Temperature 1250°C
OEM Yes Sample Free
Surface Bright or Oxidation Thickness 0.1–3 mm
Width 5–200 mm Transport Package Waterproof Paper, Wooden Case
Specification 0.1–3 mm × 5–200 mm Trademark Huona
Origin China HS Code 7408229000
Production Capacity 2000 ton/Year

Product Description

1cral 13/4 Tape for double strip coils Braking Resistor

Thickness: 0.04mm to 0.1mm
Width: 0.01mm to1mm
Mainly used in elecrica heating furnace, locomotive resistor part.

Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability;
Uniform and beautiful surface condition without spots.

Packing detail
Spool, coil, wooden case(as per client's requiryment)
C P S Mn Si Cr Ni Al Fe Other
Max0.12 Max 0.025 Max 0.025 Max 0.70 Max 1.0 12.0~15.0 Max 0.60 4.0~6.0 Bal. -


Mechanical Properties
Max Continuous Service Temp 950℃
Resisivity at 20C 1.25 ohm mm2/m
Density 7.4 g/cm3
Thermal Conductivity 52.7 KJ/m@h@C
Coefficient of Thermal Expansion 15.4×10-6/C
Melting Point 1450C
Tensile Strength 588~735 Mpa
Elongation Min 12%
Section Variation Shrink Rate 65~75%
Repeatedly Bend Frequency Min 5 times
Continuous Service Time -
Hardness 200-260HB
Micrographic Structure Ferrite
Magnetic Property Magnetic

Temperature Factor( degree Celsius)of Electrical Resistivity
20 100 200 300 400 500 600 700 800 900 1000
1 1.005 1.014 1.028 1.044 1.064 1.090 1.120 1.132 1.142 1.150


0.04mm-0.1mm Thickness 1cral 13/4 Tape For Double Strip Coils Braking Resistor 0
