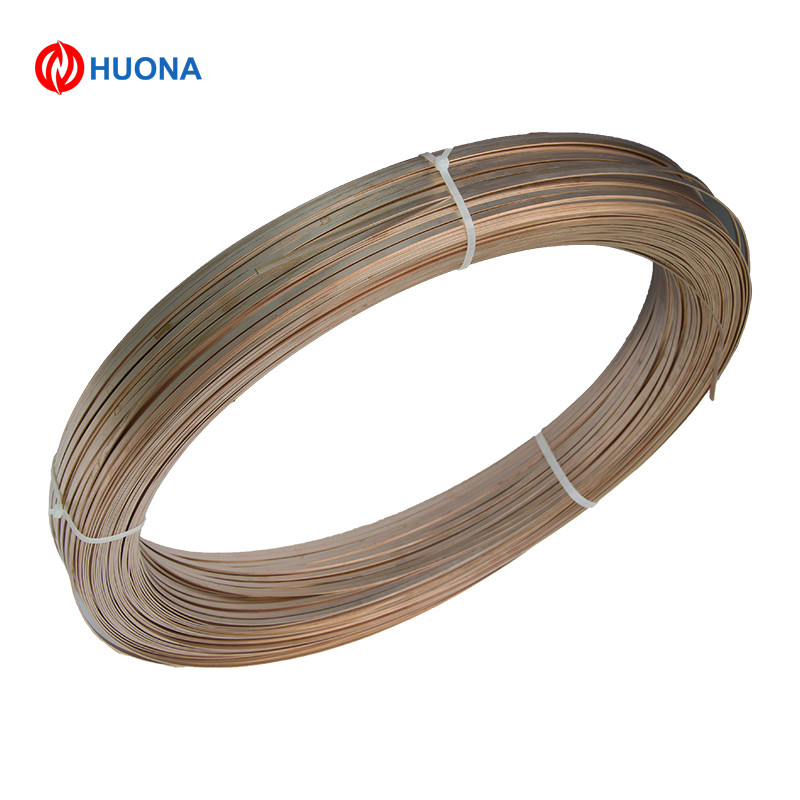

6J13 Enameled Bare Strip Copper Manganese Alloy CuMn Resistance Ribbon

  • 6J13 Enameled Bare Strip Copper Manganese Alloy CuMn Resistance Ribbon
Place of Origin CHINA
Brand Name HUONA
Certification ISO9001
Model Number 6J13
Minimum Order Quantity 10KG
Price Negotiate
Packaging Details Spool, Carton, Wooden Case
Delivery Time Around a week
Payment Terms T/T
Supply Ability 100 Tons/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Copper-Manganese Alloy Product Grade 6j13
Product Composition Copper-Manganese Product Type Strip/Ribbon
Quality High Quality Thickness 0.1-3mm
MOQ 10KG Origin China
Highlight

Enameled Copper Manganese Bare Ribbon

,

Enameled Copper Manganese Alloy

,

6J13 Enameled Strip
Leave a Message
Product Description

Product Description

Company Info.

Basic Info.


Attribute Details Attribute Details
Model NO. 6J13 Shape Stirp
Surface Bright Width Customized
Thickness 0.1-3.0 mm MOQ 10KG
Density 8.4 g/cm³ Resistivity 0.44
Type Strip/Ribbon Application Water Heater,
Air Condition
Refrigerator
Alloy CuMn alloy Standard GB/T
Transport Package Wooden Case Specification Customized
Trademark Huona Origin China
HS Code 7506220000 Production Capacity 1500 tons/Year


Product Description

6J13 Enameled Bare Strip Copper Manganese Alloy CuMn Resistance Ribbon

Product Description

Copper Manganin widely used for Shunt resistor with the highest requirements, Copper Manganin has been used in
precision built electrical components such as Wheatstone bridges, decade boxes, voltage drivers, potentiometers
and resistance standards.

Chemical Content, %

Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
2~5 11~13 <0.5 micro Bal - ND ND ND ND

Mechanical Properties

Max Continuous Service Temp 0-100ºC
Resisivity at 20ºC 0.44±0.04ohm mm2/m
Density 8.4 g/cm3
Thermal Conductivity 40 KJ/m·h·ºC
Temp Coefficient of Resistance at 20 ºC 0~40α×10-6/ºC
Melting Point 1450ºC
Tensile Strength(Hard) 585 Mpa(min)
Tensile Strength,N/mm2 Annealed,Soft 390-535
Elongation 6~15%
EMF vs Cu, μV/ºC (0~100ºC) 2(max)
Micrographic Structure austenite
Magnetic Property non
Hardness 200-260HB
Micrographic Structure Ferrite
Magnetic Property Magnetic
