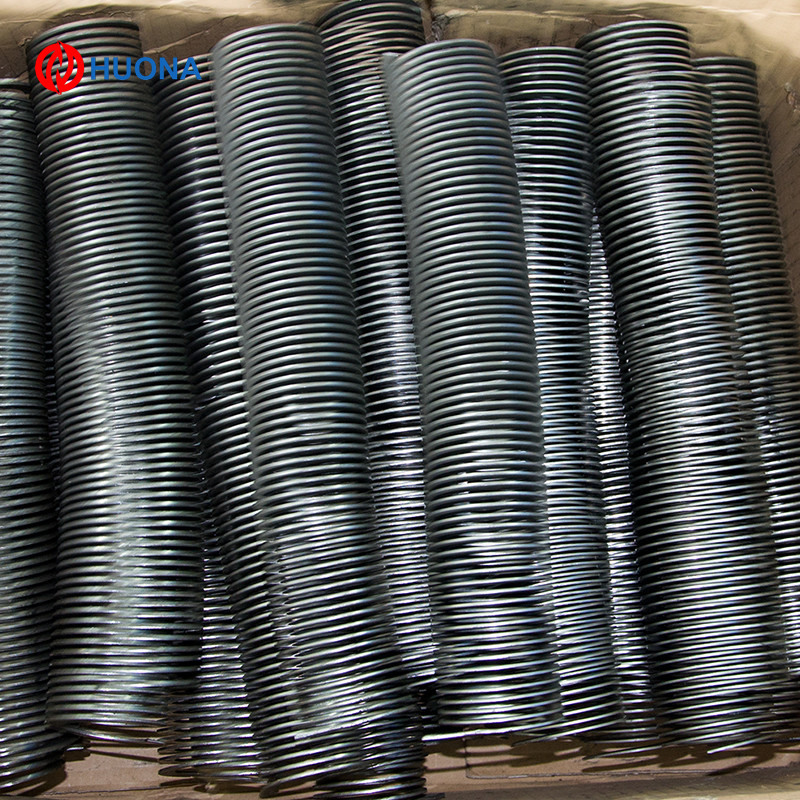

0Cr23Al5 Spring For Electric Furnace Wire Fecral Heating Element In High Resistivity

  • 0Cr23Al5 Spring For Electric Furnace Wire Fecral Heating Element In High Resistivity
  • 0Cr23Al5 Spring For Electric Furnace Wire Fecral Heating Element In High Resistivity
Place of Origin China
Brand Name HUONA
Certification ISO9001, RoHS
Model Number 0Cr23Al5
Minimum Order Quantity 1KG
Price $6.5/KG-$7.5/ KG
Packaging Details Spool, Carton, Wooden Case
Delivery Time Around a week
Payment Terms T/T
Supply Ability 100 Ton/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Kaf Spring Electric Furnace Strip Product Type Flat Strip
Material Fecral OEM/ODM Availability Yes
Sample Yes Surface Bright
Highlight

High Resistivity Electric Furnace Heat Strip

,

High Resistivity furnace heat strips

,

Bright Electric Furnace Heat Strip
Leave a Message
Product Description

Product Description

Company Info.

Basic Info.

Parameter Details Parameter Details
Model NO. 0Cr23Al5 Chemical Composition 0Cr23Al5
Product Name Heating Resistance
Strip		 Characteristics High Resistivity,
Good Oxidation
Resistance
The Highest Use Temperature 1250℃ Density 7.35g/cm³
Resistivity 1.35 Ω·m Elongation >12%
Sample Support Thickness 0.05-2mm
Width 0.2-6mm Application Dynamic Braking Resistors,
Heating Resistor
Max Coil Weight 15 Tons Advantage Large Volume Weight,
Uniform Resistance
Type Winding, Z-Shaped,
Spiral		 Standard GB/T 1234-2010
Transport Package Wooden Cases
or Cartons		 Specification 0.05×0.2-2.0×6mm
Trademark HUONA Origin Shanghai
HS Code 72209000 Production Capacity 100 Tons / Month


Product Description

KAF spring electric furnace wire in high resistivity

Our company mainly produces high-temperature heating strip with low impurities, high purity, good surface

oxidation resistance, stable resistivity, corrosion resistance, good processing performance and high temperature

strength and weldability. The products can be directly processed into winding, Z-shaped, spiral, etc.,

and widely used in metal smelting, mechanical manufacturing, industrial electric furnaces, small electric furnaces,

muffle furnaces, household appliances, transportation and other industries to produce heating elements and

resistance components. Our product specifications are complete in advanced technology and guaranteed quality.

Welcome new and old customers to order!


Product parameters:
1. The temperature resistance of nickel-chrome electric furnace wire is 1250 ºC, and the temperature resistance

 of iron-chromium-aluminum electric furnace wire is 1400 ºC;

2. The surface color is bright, black, and the primary color is green, such as nickel-chromium alloy;

3. The surface load of the furnace wire should be less than 1.5w / cm2.


When Inquiry, pls inform us below sizes

1. d1: wire diameter
2. D1: coil outer diameter
3. S1: distance from middle to middle of two coil
4. L1: heating length
5. Voltage and wattage, or resistance

Alloy material Chemical composition %
C P S Mn Si Cr Ni Al Fe others
max(≤)
1Cr13Al4 0.12 0.025 0.025 0.7 ≤1.00 12.5-15.0 - 3.5-4.5 Rest -
0Cr15Al5 0.12 0.025 0.025 0.7 ≤1.00 14.5-15.5 - 4.5-5.3 Rest -
0Cr25Al5 0.06 0.025 0.025 0.7 ≤0.60 23.0-26.0 ≤0.60 4.5-6.5 Rest -
0Cr23Al5 0.06 0.025 0.025 0.7 ≤0.60 20.5-23.5 ≤0.60 4.2-5.3 Rest -
0Cr21Al6 0.06 0.025 0.025 0.7 ≤1.00 19.0-22.0 ≤0.60 5.0-7.0 Rest -
0Cr19Al3 0.06 0.025 0.025 0.7 ≤1.00 18.0-21.0 ≤0.60 3.0-4.2 Rest -
0Cr21Al6Nb 0.05 0.025 0.025 0.7 ≤0.60 21.0-23.0 ≤0.60 5.0-7.0 Rest Nb add0.5
0Cr27Al7Mo2 0.05 0.025 0.025 0.2 ≤0.40 26.5-27.8 ≤0.60 6.0-7.0 Rest

Main technical characteristics of FeCrAl Alloy:

Brand

Property

 1Cr13Al4 1Cr21Al4 0Cr21Al6 0Cr23Al5 0Cr25Al5 0Cr21Al6Nb 0Cr27Al7Mo2
Major chemical component% Cr 12.0-12.5 17.0-21.0 19.0-22.0 20.5-23.5 23.0-26.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 2.0-4.0 5.0-7.0 4.2-5.3 4.5-6.5 5.0-7.0 6.0-7.0
Fe Balance Balance Balance Balance Balance Balance Balance
Re Appropriate Appropriate Appropriate Appropriate Appropriate Appropriate Appropriate






Addition Nb:0.5

Addition

Mo:1.8-2.2
Component max. use temperature 950 1100 1250 1250 1250 1350 1400
Melting Point 1450 1500 1500 1500 1500 1510 1510
Density g/cm3 7.40 7.35 7.16 7.25 7.10 7.10 7.10
Resistivity μΩ·m,20 1.25±0.08 1.23±0.06 1.42±0.07 1.35±0.06 1.45±0.07 1.45±0.07 1.53±0.07
Tensile Strength Mpa 588-735 637-784 637-784 637-784 637-784 637-784 684-784
Extension rate% 16 12 12
12 12 10
Repeated bending frequency

5 5 5 5 5
Fast lift h/ -

80/1300 80/1300
50/1350
Specific Heat J/g. 0.490 0.490 0.520 0.460 0.494 0.494 0.494
Heat Conduction Coefficient KJ/M.h 52.7 46.9 63.2 60.1 46.1 46.1 45.2

Linear expansion coefficient aX10-6/

(20-1000)

 15.4 13.5 14.7 15.0 16.0 16.0 16.0
Hardness HB 200-260 200-260 200-260 200-260 200-260 200-260 200-260
Microstructure Ferritic Ferritic Ferritic Ferritic Ferritic Ferritic Ferritic
Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic
