0.05X0.2-2.0X6mm High Resistivity Alloy 135/0Cr23Al5 Furnaces Element

  • 0.05X0.2-2.0X6mm High Resistivity Alloy 135/0Cr23Al5 Furnaces Element
Place of Origin China
Brand Name HUONA
Certification ISO9001, RoHS
Model Number 0cr23al5
Minimum Order Quantity 1KG
Price Need to negotiate
Packaging Details Spool, Carton, Wooden Case
Delivery Time Around a week
Payment Terms T/T
Supply Ability 300 Ton/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 0cr23al5 Alloy Product Usage Electric Element
Product Composition 0cr23al5 Surface Bright
Sample Support Brand Huona
Highlight

6mm Width High Temperature Nickel Alloys

,

6mm Width High Temperature Alloy

,

RoHS High Temperature Nickel Alloys
Leave a Message
Product Description

Product Description

Company Info.

Basic Info.


Attribute Details Attribute Details
Model NO. 0Cr23Al5 Chemical
Composition		 0Cr21Al6*
Product Name 0Cr23Al5
Furnaces Element		 Characteristics High Resistivity,
Good Oxidation Resistance
The Highest Use Temperature 1350°C Density 7.1 g/cm³
Resistivity 1.42 Elongation >12%
Sample Support Thickness Customized
Width Customized Application Dynamic Braking Resistors,
Heating Resistor
Max Coil Weight 15 Tons Advantage Large Volume Weight,
Uniform Resistance
Type Winding, Z-Shaped,
Spiral		 Standard GB/T 1234-2010
Transport Package Wooden Cases
or Cartons		 Specification   Customized
Trademark HUONA Origin Shanghai
HS Code 72209000 Production Capacity 300 Tons/Month

Product Description

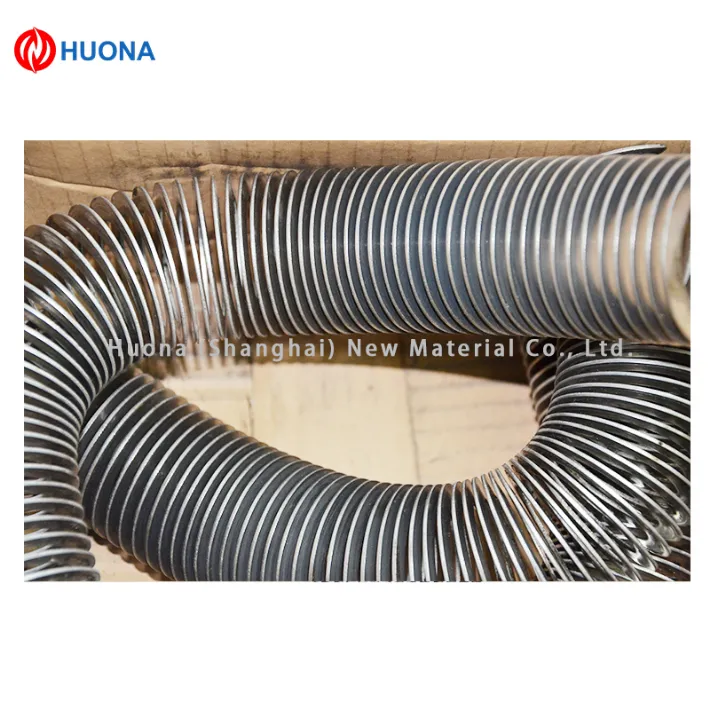

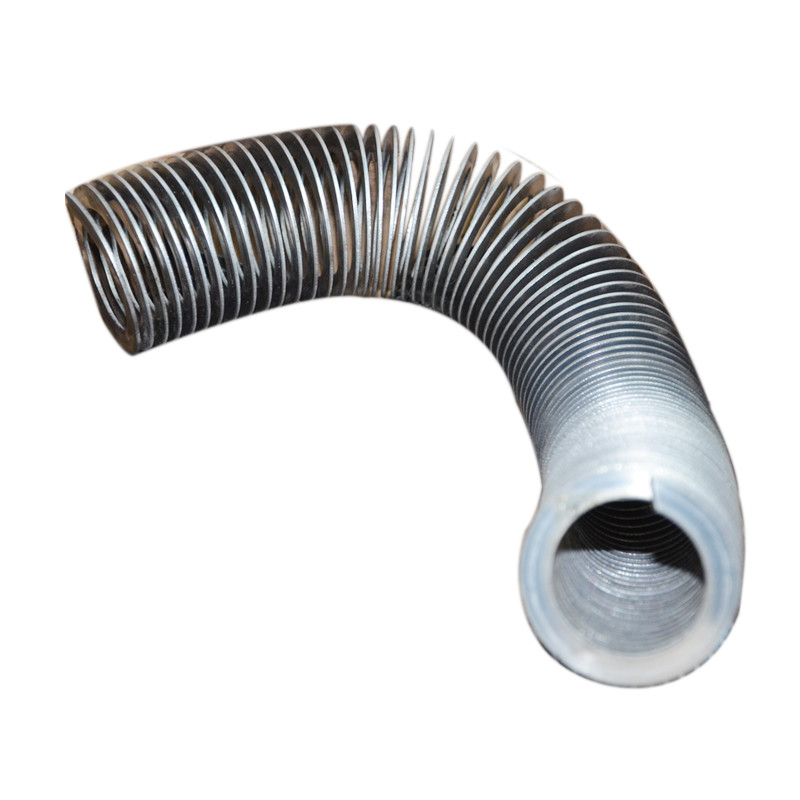

0.05X0.2-2.0X6mm High Resistivity Alloy 135/0Cr23Al5 Furnaces element

When Inquiry, pls inform us below sizes

1. d1: wire diameter
2. D1: coil outer diameter
3. S1: distance from middle to middle of two coil
4. L1: heating length
5. Voltage and wattage, or resistance
Alloy material Chemical composition %
C P S Mn Si Cr Ni Al Fe others
max(≤)
1Cr13Al4 0.12 0.025 0.025 0.7 ≤1.00 12.5-15.0 - 3.5-4.5 Rest -
0Cr15Al5 0.12 0.025 0.025 0.7 ≤1.00 14.5-15.5 - 4.5-5.3 Rest -
0Cr25Al5 0.06 0.025 0.025 0.7 ≤0.60 23.0-26.0 ≤0.60 4.5-6.5 Rest -
0Cr23Al5 0.06 0.025 0.025 0.7 ≤0.60 20.5-23.5 ≤0.60 4.2-5.3 Rest -
0Cr21Al6 0.06 0.025 0.025 0.7 ≤1.00 19.0-22.0 ≤0.60 5.0-7.0 Rest -
0Cr19Al3 0.06 0.025 0.025 0.7 ≤1.00 18.0-21.0 ≤0.60 3.0-4.2 Rest -
0Cr21Al6Nb 0.05 0.025 0.025 0.7 ≤0.60 21.0-23.0 ≤0.60 5.0-7.0 Rest Nb add0.5
0Cr27Al7Mo2 0.05 0.025 0.025 0.2 ≤0.40 26.5-27.8 ≤0.60 6.0-7.0 Rest

Main technical characteristics of FeCrAl Alloy:

Brand

Property

 1Cr13Al4 1Cr21Al4 0Cr21Al6 0Cr23Al5 0Cr25Al5 0Cr21Al6Nb 0Cr27Al7Mo2
Major chemical component% Cr 12.0-12.5 17.0-21.0 19.0-22.0 20.5-23.5 23.0-26.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 2.0-4.0 5.0-7.0 4.2-5.3 4.5-6.5 5.0-7.0 6.0-7.0
Fe Balance Balance Balance Balance Balance Balance Balance
Re Appropriate Appropriate Appropriate Appropriate Appropriate Appropriate Appropriate






Addition Nb:0.5

Addition

Mo:1.8-2.2
Component max. use temperature 950 1100 1250 1250 1250 1350 1400
Melting Point 1450 1500 1500 1500 1500 1510 1510
Density g/cm3 7.40 7.35 7.16 7.25 7.10 7.10 7.10
Resistivity μΩ·m,20 1.25±0.08 1.23±0.06 1.42±0.07 1.35±0.06 1.45±0.07 1.45±0.07 1.53±0.07
Tensile Strength Mpa 588-735 637-784 637-784 637-784 637-784 637-784 684-784
Extension rate% 16 12 12
12 12 10
Repeated bending frequency

5 5 5 5 5
Fast lift h/ -

80/1300 80/1300
50/1350
Specific Heat J/g. 0.490 0.490 0.520 0.460 0.494 0.494 0.494
Heat Conduction Coefficient KJ/M.h 52.7 46.9 63.2 60.1 46.1 46.1 45.2

Linear expansion coefficient aX10-6/

(20-1000)

 15.4 13.5 14.7 15.0 16.0 16.0 16.0
Hardness HB 200-260 200-260 200-260 200-260 200-260 200-260 200-260
Microstructure Ferritic Ferritic Ferritic Ferritic Ferritic Ferritic Ferritic
Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic

0.05X0.2-2.0X6mm High Resistivity Alloy 135/0Cr23Al5 Furnaces Element 0
0.05X0.2-2.0X6mm High Resistivity Alloy 135/0Cr23Al5 Furnaces Element 1
0.05X0.2-2.0X6mm High Resistivity Alloy 135/0Cr23Al5 Furnaces Element 2
0.05X0.2-2.0X6mm High Resistivity Alloy 135/0Cr23Al5 Furnaces Element 3
0.05X0.2-2.0X6mm High Resistivity Alloy 135/0Cr23Al5 Furnaces Element 4
