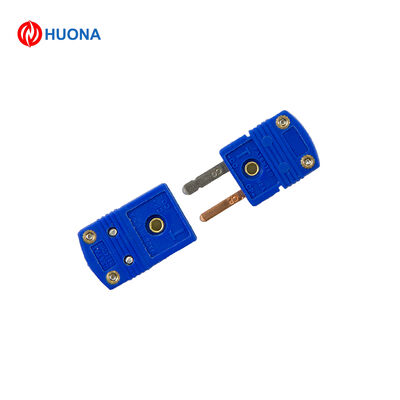

Miniature Type T Thermocouple Plug with Copper-Constantan for Cryogenic Range and Medical Grade Applications
| Place of Origin | China |
|---|---|
| Brand Name | HUONA |
| Certification | ISO 9001 |
| Model Number | Type T |
| Minimum Order Quantity | 100 Pieces |
| Price | Negotiable |
| Packaging Details | Carton/Wooden Case |
| Delivery Time | 3 working days for stock, 15-25 days for production |
| Payment Terms | T/T,L/C,PayPal,Western Union |
| Supply Ability | 50000 Pieces per Month |
Product Details
| Thermocouple Type | Type T (Copper-Constantan) | Connector Size | Miniature (Small) |
|---|---|---|---|
| Conductor Material | Copper / Constantan | Low-Temp Range | -200C To 100C |
| Body Material | Phenolic / PBT | Colour Code | ANSI Blue / IEC Brown-White |
| Termination | Screw Terminal | Application | Cryogenic & Cold Chain |
| Standards | ANSI MC96.1 / IEC 60584-3 | ||
| Highlight | Copper-Constantan Thermocouple Plug,Cryogenic Range Thermocouple Connector,Medical Grade Miniature Thermocouple Plug |
||
Product Description
Miniature Type T Thermocouple Plug - Cryogenic Grade
Designed around the naturally low-temperature-friendly copper-constantan pair, this miniature Type T plug holds its accuracy deep into the cryogenic range, from around -200°C upward. The compact body suits cryo-storage racks, cold chain shipping monitors and biomedical freezer systems where space and repeatability both matter.
Key Features
- Copper-constantan junction optimised for sub-zero measurement
- Usable from approximately -200°C to +100°C
- Miniature body fits compact cryogenic and cold chain equipment
- Polarity keying protects low-signal measurements
- Colour-coded body for fast identification
- Stable contact resistance across the low-temperature band
Technical Specifications
| Thermocouple Type | Type T, Copper-Constantan |
| Connector Format | Miniature Size (Small) |
| Conductor Material | Copper / Constantan |
| Recommended Range | -200°C to +100°C |
| Body Material | Phenolic / PBT |
| Colour Code | ANSI Blue / IEC Brown-White |
| Termination | Screw Terminal |
| Reference Standard | ANSI MC96.1 / IEC 60584-3 |
Typical Applications
- Cryogenic storage and biomedical freezer monitoring
- Cold chain shipping and vaccine temperature loggers
- Low-temperature laboratory research
- Compact medical refrigeration equipment
Why Choose Our Type T Plug
- Contacts matched for stable e.m.f. in the cryogenic band
- Continuity and polarity verified per batch
- Compact footprint supports dense cold chain panels
- Custom leads, mouldings and branding on request
Packing & Ordering
Packed in HUONA colour boxes with foam protection and shipped in export-grade cartons of 100 pieces. Advise your size, low-temperature requirement and quantity for a same-day quotation.
