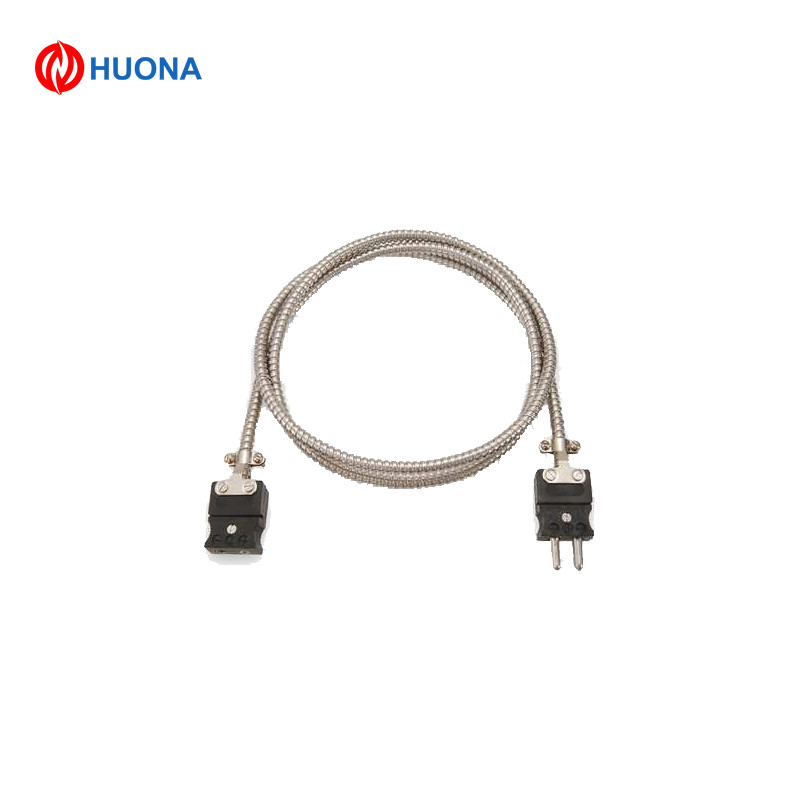

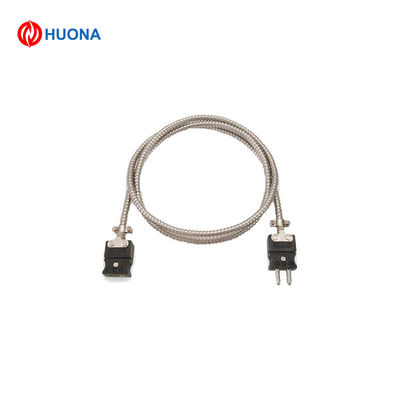

Thermal Resistance Rtd Thermocouple Pt100 Heat Furnace Temperature Sensor

  • Thermal Resistance Rtd Thermocouple Pt100 Heat Furnace Temperature Sensor
Place of Origin CHINA
Brand Name HUONA
Certification ISO9001
Model Number Thermal Resistance Rtd Thermocouple Pt100
Minimum Order Quantity 50 meters
Price Bargain
Packaging Details Coil/Spool+paper carton+ wooden pallet
Delivery Time 5-21days
Payment Terms L/C,T/T,Western Union,MoneyGram
Supply Ability 100000 meters / month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Thermal Resistance Rtd Thermocouple Pt100 Conductor Size 0.75mm2(3*7/0.37mm)
Shape Round Accuracy Class I (T±4%)
Temperature Range -10 To +260 °C Style Compensation Wire
Highlight

Rtd Flexible Thermocouple Cable

,

Rtd thermocouple compensating cable

,

Bare Flexible Thermocouple Cable
Leave a Message
Product Description

Thermal resistance rtd thermocouple pt100 heat furnace temperature sensor



Specifications



1.Style:Compensation Wire

2.Thermocouple RTD wire

3 wire stainless steel probe high temperature thermocouple RTD sensores PT 100
Thermocouple RTD wire Classification


1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.

2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.


Thermocouple Variety and Index
Variety Type Measurement Range(°C)
NiCr-NiSi K -200-1300
NiCr-CuNi E -200-900
Fe-CuNi J -40-750
Cu-CuNi T -200-350
NiCrSi-NiSi N -200-1300
NiCr-AuFe0.07 NiCr-AuFe0.07 -270-0


3 . Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire

Dimensions / Tolerance mm ) : 4.0+-0.25


Color code & initial calibration tolerances for thermocouple wire


Thermocouple Type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration

+/-

Conductor

 Jacket Temperature Range

Standard

Limits

Special

Limits

Iron(+) vs.

Constantan(-)

 J White/Red Brown

0°C to +285°C

285°C to +750°C

±2.2°C

± .75%

±1.1°C

± .4%

CHROMEL(+) vs.

ALUMEL(-)

 K Yellow/Red Brown

-200°C to -110°C

-110°C to 0°C

0°C to +285°C

285°C to +1250°C

± 2%

±2.2°C

±2.2°C

± .75%

±1.1°C

± .4%

Copper(+) vs.

Constantan(-)

 T Blue/Red Brown

-200°C to -65°C

-65°C to +130°C

130°C to +350°C

± 1.5%

±1°C

± .75%

± .8%

± .5°C

± .4%

CHROMEL(+) vs.

Constantan(-)

 E Purple/Red Brown

-200°C to -170°C

-170°C to +250°C

250°C to +340°C

340°C+900°C

± 1%

±1.7°C

±1.7°C

± .5%

±1°C

±1°C

± .4%

± .4%


Color Code & Initial Calibration Tolerance for Extension Wire


Extension type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration

+/-

Conductor

 Jacket Temperature Range

Standard

Limits

Special

Limits
Iron (+) vs. Constantan(-) JX White/Red Black 0°C to +200°C ±2.2°C ±1.1°C
CHROMEL (+) vs. ALUMEL (-) KX Yellow/Red Yellow 0°C to +200°C ±2.2°C ±1.1°C
Copper(+) vs. Constantan(-) TX Blue/Red Blue -60°C to +100°C ±1.1°C ± .5°C
CHROMEL(+) vs. Constantan(-) EX Purple/Red Purple 0°C to +200°C ±1.7°C ±1.1°C


PVC-PVC Physical Properties


characteristics Insulation jacket
Abrasion Resistance Good Good
Cut Through Resistance Good Good
Moisture Resistance Excellent Excellent
Solder Iron Resistance Poor Poor
Service Temperature

105℃ continuous

150℃ single

105℃ continuous

150℃ single
Flame Test Self-extinguishing Self-extinguishing


Thermal Resistance Rtd Thermocouple Pt100 Heat Furnace Temperature Sensor 0





Tags:

thermocouple extension wire

type K thermocouple cable

thermocouple compensating cable
