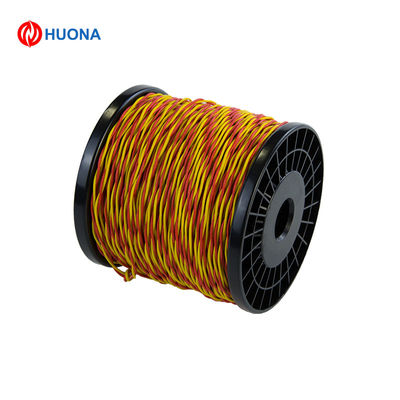

Type K 2x0.81mm Thermocouple Extension Wire Cable Reliable Accurate

  • Type K 2x0.81mm Thermocouple Extension Wire Cable Reliable Accurate
  • Type K 2x0.81mm Thermocouple Extension Wire Cable Reliable Accurate
  • Type K 2x0.81mm Thermocouple Extension Wire Cable Reliable Accurate
Place of Origin Shanghai
Brand Name Huona
Certification ISO 9001
Model Number Type K
Minimum Order Quantity 100m
Price Bargain

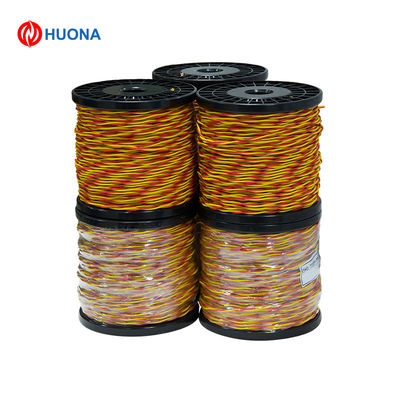

Packaging Details 100m/spool, 500m/roll
Delivery Time 5-21days
Payment Terms L/C,T/T,Western Union,MoneyGram
Supply Ability 500000meters/month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Dia 180AWG Size 0.65mm*7/2 Type K
Color Brown, Yellow, Red Jacket Material PFA
Standard ANSI96.1 Or IEC 584-2 Package 100m/roll
Highlight

Reliable Thermocouple Extension Cable Type K

,

Reliable k type wire

,

Accurate Thermocouple Extension Cable Type K
Leave a Message
Product Description

Type K 2x0.81mm Thermocouple Extension Wire Cable



Type K( CHROMEL vs ALUMEL) is used in oxidizing, insert or dry reducing atmospheres.Exposure to Vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres.Reliable and accurate at high temperatures.



1. Style:Extension Wire
2. Thermocouple extension wire


Thermocouple wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.


Thermocouple Type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor		 Jacket Temperature Range Standard
Limits		 Special
Limits
Iron(+) vs.
Constantan(-)		 J White/Red Brown 0°C to +285°C
285°C to +750°C		 ±2.2°C
± .75%		 ±1.1°C
± .4%
CHROMEL(+) vs.
ALUMEL(-)		 K Yellow/Red Brown -200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C		 ± 2%
±2.2°C
±2.2°C
± .75%		 ±1.1°C
± .4%
Copper(+) vs.
Constantan(-)		 T Blue/Red Brown -200°C to -65°C
-65°C to +130°C
130°C to +350°C		 ± 1.5%
±1°C
± .75%		 ± .8%
± .5°C
± .4%
CHROMEL(+) vs.
Constantan(-)		 E Purple/Red Brown -200°C to -170°C
-170°C to +250°C
250°C to +340°C
340°C+900°C		 ± 1%
±1.7°C
±1.7°C
± .5%		 ±1°C
±1°C
± .4%
± .4%



Thermocouple variety and index



Thermocouple Variety and Index

Variety
Type
Measurement Range(°C)

NiCr-NiSi
K
-200-1300

NiCr-CuNi
E
-200-900

Fe-CuNi
J
-40-750

Cu-CuNi
T
-200-350

NiCrSi-NiSi
N
-200-1300

NiCr-AuFe0.07
NiCr-AuFe0.07
-270-0



Globle thermocouple color standards:
Type K 2x0.81mm Thermocouple Extension Wire Cable Reliable Accurate 0

Products

Type K 2x0.81mm Thermocouple Extension Wire Cable Reliable Accurate 1Type K 2x0.81mm Thermocouple Extension Wire Cable Reliable Accurate 2



FAQ:

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.



2. How can you pay for small sample amount?

We have Western union account, wire transfer for sample amount also ok.



3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.



4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.



5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.



6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
