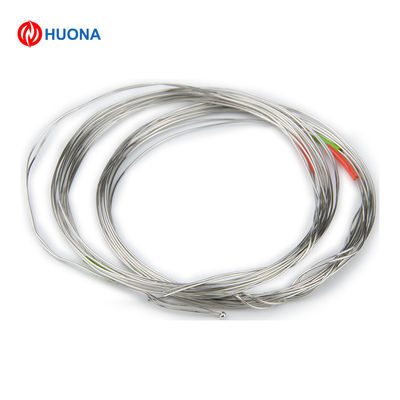

Platinum Rhodium Thermocouple Bare Wire B/R/S Type 0.3mm-0.5mm
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | B/R/S Type Platinum Rhodium Thermocouple Bare Wire |
| Minimum Order Quantity | 10 |
| Price | Bargain |
| Packaging Details | Spool+paper case + wooden case/plastic packing+papre case+ wooden box outside(or customized) |
| Delivery Time | 5-18 working days after payment confirmed |
| Payment Terms | T/T,Western Union |
| Supply Ability | 30kg per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Thermocouple Bare Wire | Color | Bright |
|---|---|---|---|
| Certificate | ISO9001 | Temperature Range | -58 To 2700F (-50 To 1480℃) |
| Positive | Platinum Rhodium | Negative | Platinum |
| Highlight | S Type Flexible Thermocouple Cable,S Type bare thermocouple wire,B Type Flexible Thermocouple Cable |
||
Product Description
0.3mm/0.4mm/0.5mm B/R/S Type Platinum Rhodium Thermocouple Bare Wire
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Thermocouple Bare Wire |
| Color | Bright |
| Certificate | ISO9001 |
| Temperature Range | -58 To 2700F (-50 To 1480℃) |
| Positive | Platinum Rhodium |
| Negative | Platinum |
Product Description
High-quality platinum rhodium thermocouple bare wire available in 0.3mm, 0.4mm, and 0.5mm diameters for B, R, and S type thermocouples.
Thermocouple Wire Composition
| Code | +Positive leg | -Negative leg |
|---|---|---|
| N | Ni-cr-si (NP) | Ni-si-magnesium (NN) |
| K | Ni-Cr (KP) | Ni-Al(Si) (KN) |
| E | Ni-Cr (EP) | Cu-Ni<constantan> (EN) |
| J | Iron (JP) | Cu-Ni<constantan> (JN) |
| T | Copper (TP) | Cu-Ni<constantan> (TN) |
| B | Platinum Rhodium-30% | Platinum Rhodium-6% |
| R | Platinum Rhodium-13% | Platinum |
| S | Platinum Rhodium-10% | Platinum |
Compliance Standards
- ASTM (American Society for Testing and Materials) E 230
- ANSI (American National Standard Institute) MC 96.1
- IEC (European Standard by the International Electrotechnical Commission 584)-1/2/3
- DIN (Deutsche Industrie Normen) EN 60584 -1/2
- BS (British Standards) 4937.1041, EN 60584 - 1/2
- NF (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324
- JIS (Japanese Industrial Standards) C 1602 - C 1610
- GOST (Unification of the Russian Specifications) 3044
Size Range
Wire diameter: 0.1 to 8.0 mm.
Working Temperature
| Diameter (mm) | Type | Long-term Working Temp (°C) | Short-term Working Temp (°C) |
|---|---|---|---|
| 0.5 | S | 1300 | 1600 |
| 0.5 | R | 1300 | 1600 |
| 0.5 | B | 1600 | 1700 |
Chemical Composition
| Conductor Name | Polarity | Code | Pt% | Rh% |
|---|---|---|---|---|
| Pt90Rh | Positive | SP | 90 | 10 |
| Pt | Negative | SN,RN | 100 | -- |
| Pt87Rh | Positive | RP | 87 | 13 |
| Pt70Rh | Positive | BP | 70 | 30 |
| Pt94Rh | Negative | BN | 94 | 6 |
