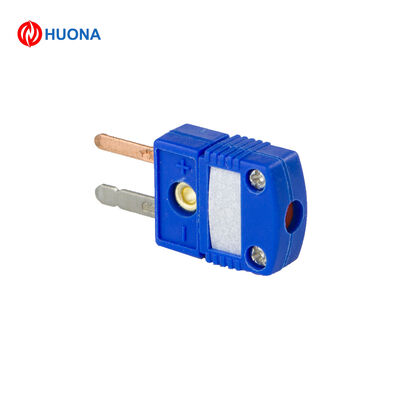

Miniature Type T Thermocouple Plug with Copper-Constantan Contacts for Medical Grade Applications
| Place of Origin | China |
|---|---|
| Brand Name | HUONA |
| Certification | ISO 9001 |
| Model Number | Type T |
| Minimum Order Quantity | 100 Pieces |
| Price | Negotiable |
| Packaging Details | Carton/Wooden Case |
| Delivery Time | 3 working days for stock, 15-25 days for production |
| Payment Terms | T/T,L/C,PayPal,Western Union |
| Supply Ability | 50000 Pieces per Month |
Product Details
| Thermocouple Type | Type T (Copper-Constantan) | Connector Size | Miniature (Small) |
|---|---|---|---|
| Conductor Material | Copper / Constantan | Contact Plating | Nickel Plated |
| Body Material | Phenolic / PBT | Color Code | ANSI Blue / IEC Brown-White |
| Operating Temperature | -60C To 150C | Termination | Screw Terminal |
| Application | Minimally Invasive Sensors | Standards | ANSI MC96.1 / IEC 60584-3 |
| Highlight | Miniature Size Thermocouple Plug,Copper-Constantan Type T Connector,Medical Grade Miniature Thermocouple |
||
Product Description
Miniature Type T Thermocouple Plug - Medical Grade
The miniature (small) Type T plug keeps the reliable copper-constantan measuring junction in a compact housing, so it fits the tight spaces of minimally invasive probes and handheld diagnostic instruments. Low mating force and a positive latch make it well suited to high-density sensor panels and portable medical electronics.
Key Features
- Miniature housing saves panel space in dense instrument layouts
- Copper-constantan contacts deliver stable low-temperature readings
- Lightweight body reduces strain on thin probe leads
- Polarity keying protects signal integrity during repeated connection
- Colour-coded cap speeds up identification and replacement
- Compatible with common miniature thermocouple sockets
Technical Specifications
| Thermocouple Type | Type T, Copper-Constantan |
| Connector Format | Miniature Size (Small) |
| Conductor Material | Copper / Constantan |
| Contact Plating | Nickel Plated |
| Body Material | Phenolic / PBT |
| Colour Code | ANSI Blue / IEC Brown-White |
| Operating Temperature | -60°C to +150°C |
| Termination | Screw / Ceramic Terminal |
| Reference Standard | ANSI MC96.1 / IEC 60584-3 |
Typical Applications
- Minimally invasive temperature catheters and probes
- Portable patient monitoring and diagnostic devices
- Compact laboratory instrumentation
- Wearable and point-of-care temperature sensing
Why Choose Our Type T Plug
- Compact form factor validated for high sensor-density assemblies
- Matched copper-constantan contacts for low drift and repeatability
- 100 percent electrical continuity check before shipment
- Custom lengths, mouldings and branding available for OEM builds
Packing & Ordering
Each miniature plug is bagged and boxed in HUONA colour packaging with foam protection, then loaded in export cartons of 100 pieces. Share your connector size, cable length and target quantity and we will issue a quotation promptly.
