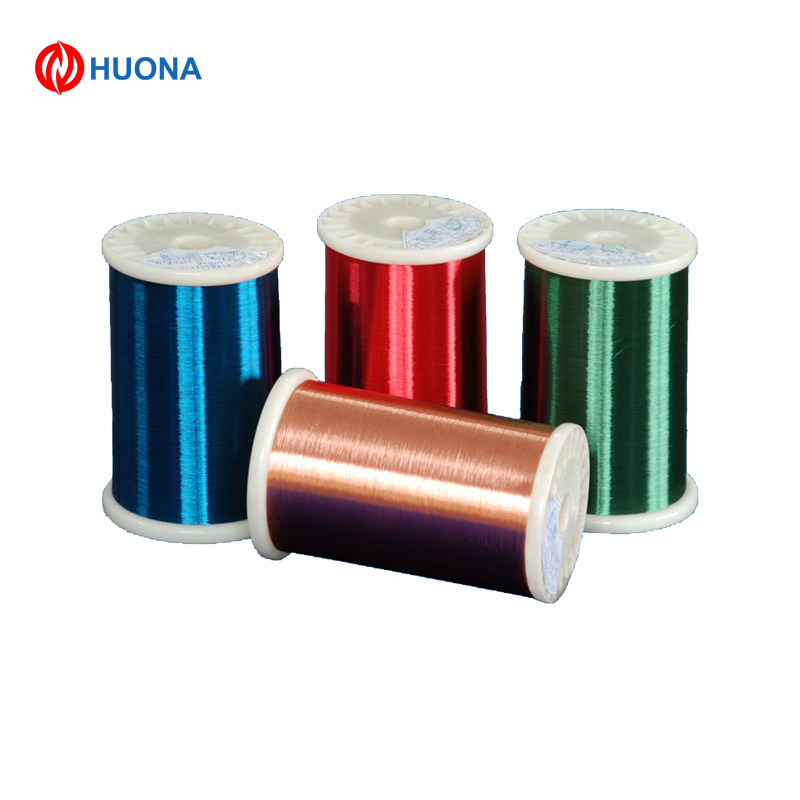

6J12 Manganin Enameled Wire CuMn12Ni2 Precision Resistance Wire For Shunt Resistor
| Place of Origin | China |
|---|---|
| Brand Name | HUONA |
| Certification | ISO 9001:2015 |
| Model Number | 6J12 (CuMn12Ni2) |
| Minimum Order Quantity | 5 Kilograms |
| Price | USD 25 / Kilogram |
| Packaging Details | Spool package with carton box, coil package with polybag |
| Delivery Time | 7-20 days after order confirmation |
| Payment Terms | T/T,L/C,Western Union,PayPal |
| Supply Ability | 100 tons per month |
Product Details
| Material | CuMn12Ni2 (Manganin 6J12) | Resistivity | 0.43 Micro-ohm.m At 20 C |
|---|---|---|---|
| Temperature Coefficient (TCR) | Plus Or Minus 10 X 10-6 Per C | Density | 8.44 G/cm3 |
| Tensile Strength | 450 MPa | Max Working Temperature | 300 C |
| EMF Vs Copper | Plus Or Minus 1 MicroV Per C | Insulation | Enamel / Polyurethane / Polyimide |
| Diameter Range | Customization | Standard | GB/T 6145 |
| Highlight | 6J12 Manganin Enameled Resistance Wire,CuMn12Ni2 Low TCR Precision Wire,Enamel Coated Manganin Shunt Wire |
||
Product Description
6J12 Manganin Enameled Wire (CuMn12Ni2)
6J12 is a precision manganese copper nickel resistance alloy (CuMn12Ni2), widely known as Manganin. It combines a medium resistivity with an exceptionally low temperature coefficient of resistance and a low thermal EMF against copper, making it the preferred material for precision resistors, shunts and measuring instruments. This product is supplied as enamel coated wire, with a durable insulating enamel layer that allows tight winding and reliable electrical isolation.
1. Key Features
- Near zero temperature coefficient of resistance for high precision resistors
- Low thermal EMF against copper for accurate current measurement
- Medium and stable resistivity with long term stability
- Durable enamel insulation suitable for tight winding and compact coils
- Excellent corrosion resistance and good workability
2. Applications
- Precision resistors, standard resistors and potentiometers
- Shunts for ammeters and current sensing
- Measuring and calibration instruments
- Electronic loads and precision control equipment
3. Specifications
| Common Name | 6J12 (CuMn12Ni2, Manganin) |
| Composition | Copper balance, Mn 11.5-13.0%, Ni 1.5-2.5% |
| Resistivity at 20 C | 0.43 micro-ohm.m |
| Temperature Coefficient (TCR) | plus or minus 10 x 10-6 per C |
| Density | 8.44 g/cm3 |
| Tensile Strength | 450 MPa |
| Max Working Temperature | 300 C |
| Melting Point | 960 C |
| EMF vs Copper | plus or minus 1 microV per C |
| Standard | GB/T 6145 |
4. Insulation and Dimensions
| Insulation Type | Enamel / Polyurethane / Polyimide |
| Wire Diameter | 0.02mm - 2.0mm |
| Insulation Grade | Class 130 - Class 220 |
| Surface | Bright, smooth enamel coating |
5. Packaging and Ordering
Standard packing is spool package with carton box or coil package with polybag, suitable for long distance sea and air shipment. Custom diameters, insulation types and spool sizes are available according to your specification. Please contact us with your required wire diameter, insulation class and order quantity for a prompt quotation.
