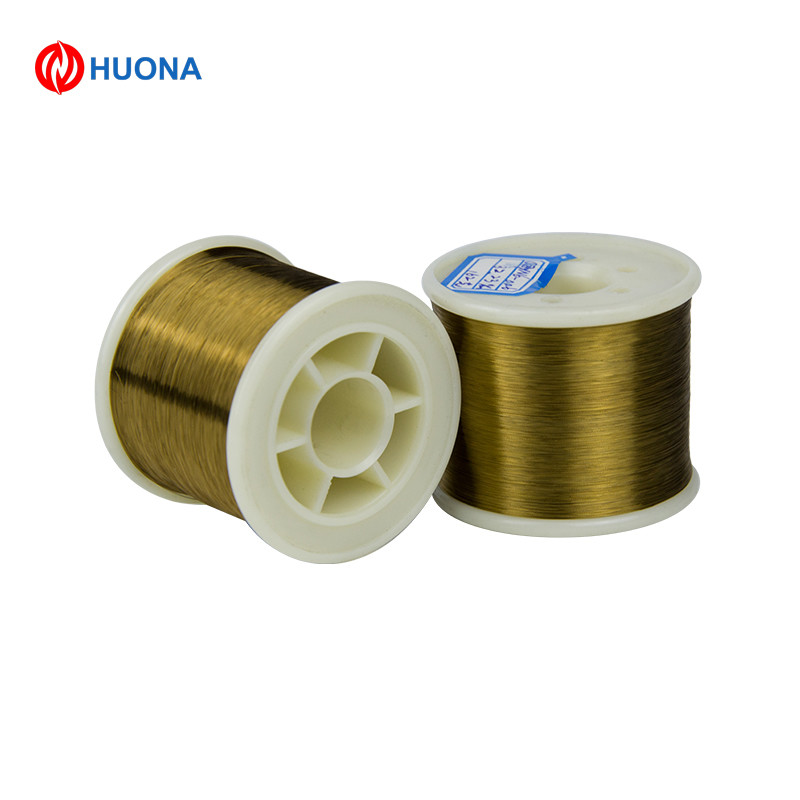

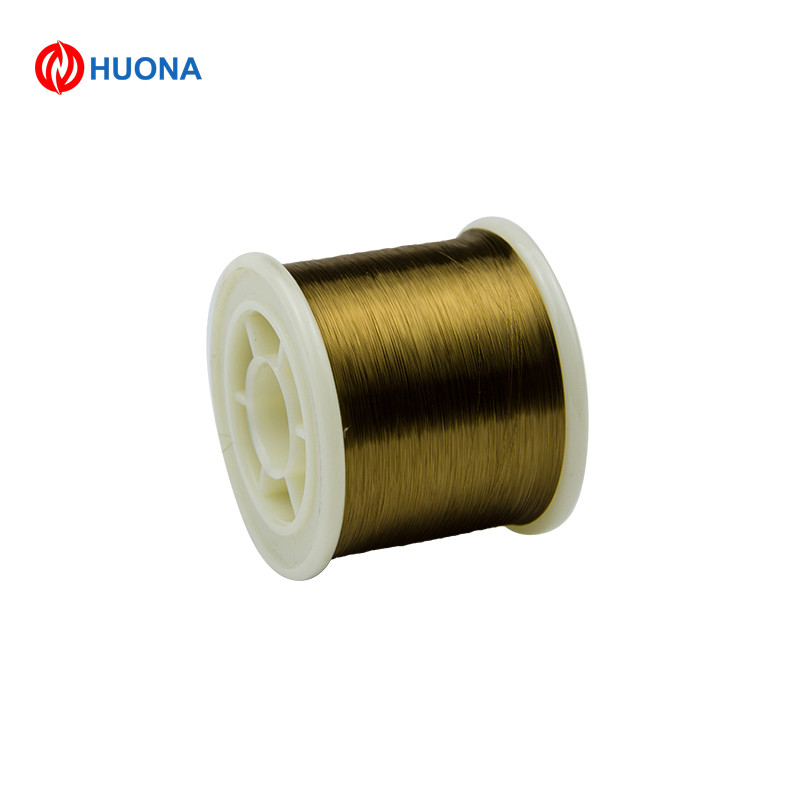

0.03mm Enamelled CuNi44 Wire Varnished Constantan Wire For Heating
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO 9001 |
| Model Number | CuNi44 Enamelled Wire |
| Minimum Order Quantity | 1spool |
| Price | Bargain |
| Packaging Details | By Spool |
| Delivery Time | 10~15 working days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 50T/Spool |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Nature,black,red,green,yellow | Solid Wire | CuNi44 |
|---|---|---|---|
| Class Grade | 130℃,155℃,180℃,200℃,220℃ | OEM | Available |
| Insulation Type | Enameling | Application | OEM |
| Highlight | CuNi44 enameled copper wire,0.03mm enameled copper wire,CuNi44 varnished copper wire |
||
You can tick the products you need and communicate with us in the message board.
Product Description
0.03mm Enamelled CuNi44 wire varnished Constantan wire for heating
Product Description
These enameled resistance wires have been broadly used for standard resistors,
High Low Voltage Resistor automobile parts, winding resistors, etc. using the insulation processing best suited for these applications,
taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Type of bare alloy wire
| Copper-nickel alloy wire, | Pure copper, Constantan Wire,CuNi1,CuNi2,CuNi6~CuNi44 Resistance Wire, | |
| Ni-Cr Alloy wire |
Pure Nickel NiCr35/20,NiCr70/30,NiCr60/15, NiCr80/20,NiCr90/10,NiCr AA,Karma. |
|
| Fe-Cr-Al Alloy wire |
Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2, |
|
| Cu-Ni-Mn Alloy wire | CuMn12Ni2,CuMn12Ni4,Manganin,NiMn2, | |
| Any copper alloy and nickel alloy is available | ||

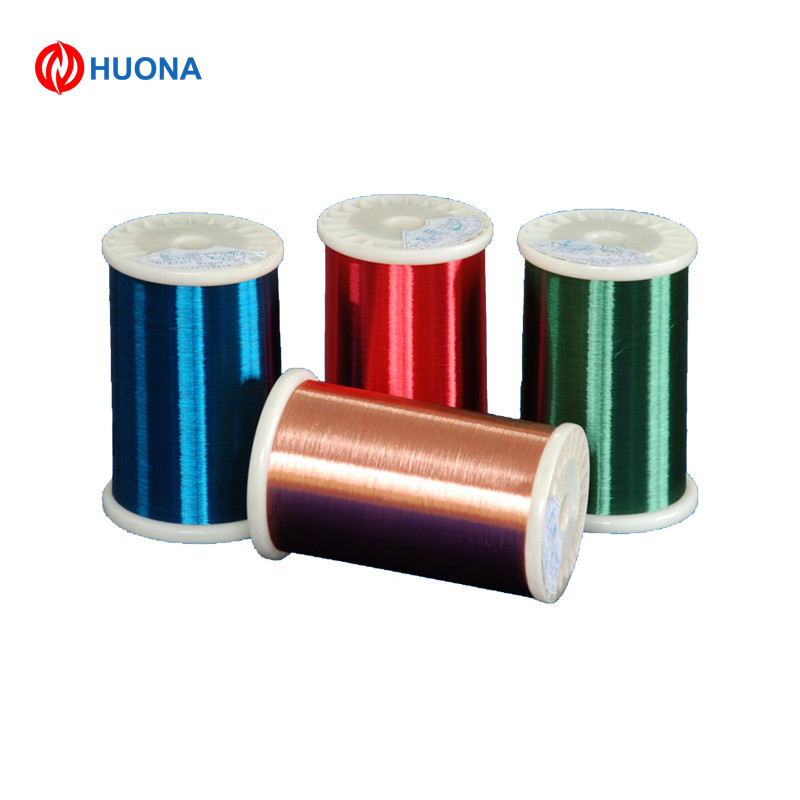

Color of enameled insulation:
| Red,Green,Yellow,Black,Blue,Nature etc. |
Type of insulation
| Insulation-enameled Name |
(working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
| Polyurethane enameled wire | 130 | UEW | QA | MW75C |
| Polyester enameled wire | 155 | PEW | QZ | MW5C |
| Polyester-imide enameled wire | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated enameled wire | 200 |
EIWH (DFWF) |
QZY/XY | MW35C |
| Polyamide-imide enameled wire | 220 | AIW | QXY | MW81C |
Style of supply
| Alloys Name | Type | Dimension | ||
| Enameled-W | Wire | D=0.018mm~3mm | ||
| Enameled-R | Ribbon | W=0.4~24 | T=0.01~0.2mm | |
