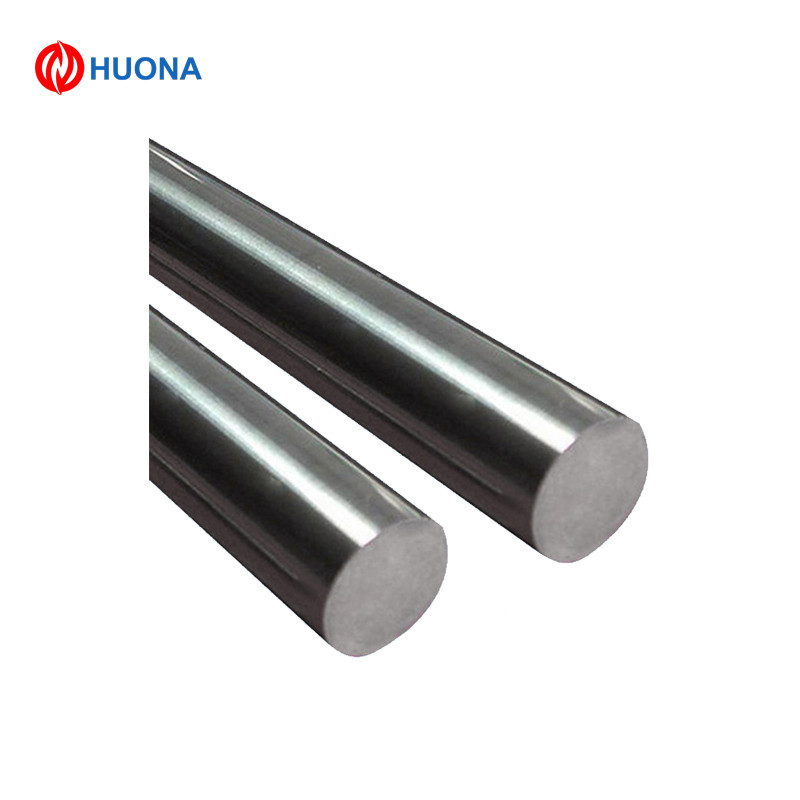

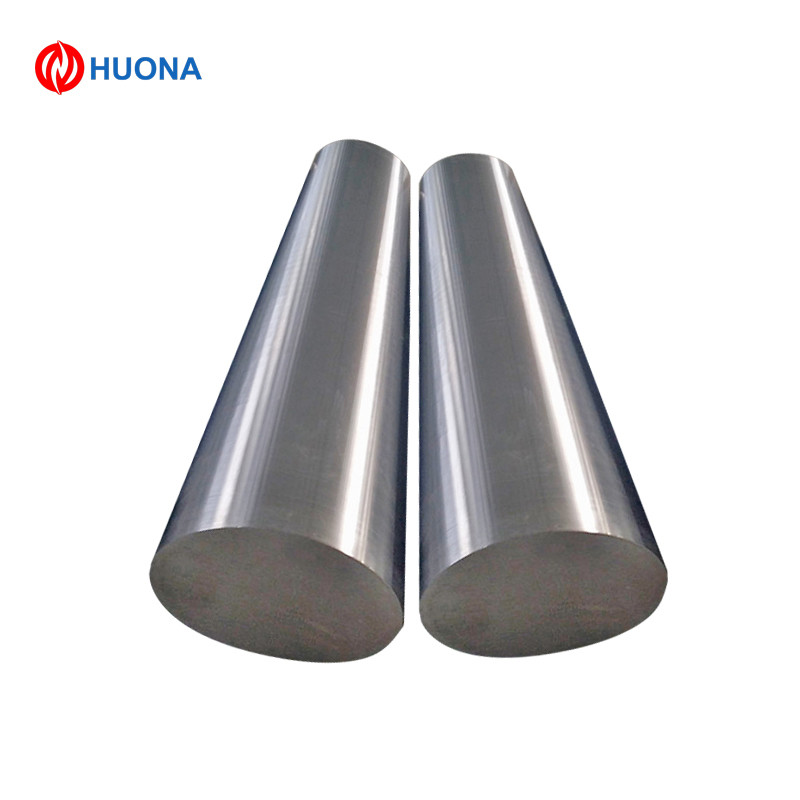

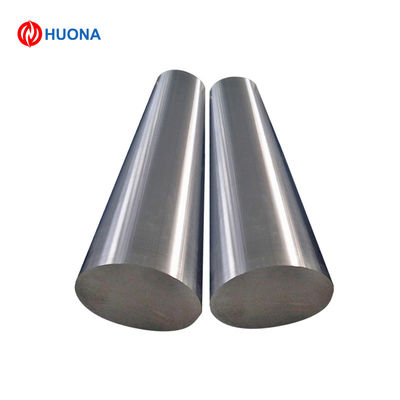

CuNi40 CuNi45 CuNi44 Heating Resistance Alloy Rod Alloy Steel Round Bar
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | CuNi 44 Rod |
| Minimum Order Quantity | 20KG |
| Price | Bargain |
| Packaging Details | Carton, Wooden Case |
| Delivery Time | 5-21DAYS |
| Payment Terms | Western Union,MoneyGram,T/T,L/C |
| Supply Ability | 1000 Ton/Year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | CuNi44 | Elongation | >25% |
|---|---|---|---|
| Diameter | 8-30mm | Surface | Bright Or Black Skin |
| Specification | Rod | Density | 8.9(g/cm3) |
| Length | 500-1500mm | Transport Package | Carton, Wooden Case |
| HS Code | 74082200 | ||
| Highlight | CuNi44 Alloy Steel Round Bar,CuNi44 Nickel Welding Rod,Heating Resistant Alloy Steel Round Bar |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Product Description
HUONA CuNi44 (CuNi40 CuNi45 CuNi44) Heating Resistance Alloy Rod
Constantan Definition
Resistance alloy with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits. Constantan is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.Chemical Content
Mechanical Properties
Constantan Tradenames:
Cuprothal, Alloy 294, Cuprothal 294, Nico, MWS-294, Cupron, Copel, Alloy 45,
Neutrology, Advance, CuNi 102, Cu-Ni 44, Konstantan
Resistance Alloy- Constantan Sizes / Temper Capabilities
Resistance alloy constantan wire material:
Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40 (6J40), CuNi44.
Characteristics
Constantan has a number of special characteristics due to which it is known as the most versatile alloy that is available. Some of its important characteristics are:
High specific heat resistance
Negligible temperature Coefficient
Easily ductile
Resistant to atmospheric corrosion
Can be easily soldered and molded
| Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
| Cd | Pb | Hg | Cr | ||||||
| 44 | 1.50% | 0.5 | - | Bal | - | ND | ND | ND | ND |
Mechanical Properties
| Max Continuous Service Temp | 400ºC |
| Resisivity at 20ºC | 0.49±5%ohm mm2/m |
| Density | 8.9 g/cm3 |
| Thermal Conductivity | -6(Max) |
| Melting Point | 1280ºC |
| Tensile Strength,N/mm2 Annealed,Soft | 340~535 Mpa |
| Tensile Strength,N/mm3 Cold Rolled | 680~1070 Mpa |
| Elongation(anneal) | 25%(Min) |
| Elongation(cold rolled) | ≥Min)2%(Min) |
| EMF vs Cu, μV/ºC (0~100ºC) | -43 |
| Micrographic Structure | austenite |
| Magnetic Property | Non |
Constantan Tradenames:
Cuprothal, Alloy 294, Cuprothal 294, Nico, MWS-294, Cupron, Copel, Alloy 45,
Neutrology, Advance, CuNi 102, Cu-Ni 44, Konstantan
Resistance Alloy- Constantan Sizes / Temper Capabilities
| Condition | Bright;Annealed; Soft |
| Wire | diameter 0.02mm-1.0mm packing in spool |
| big than 1.0mm packing in coil | |
| Rod | Bar diameter 1mm-30mm |
| Strip | Thickness 0.01mm-7mm |
| Width 1mm-280mm |
Resistance alloy constantan wire material:
Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40 (6J40), CuNi44.
Characteristics
Constantan has a number of special characteristics due to which it is known as the most versatile alloy that is available. Some of its important characteristics are:
High specific heat resistance
Negligible temperature Coefficient
Easily ductile
Resistant to atmospheric corrosion
Can be easily soldered and molded
