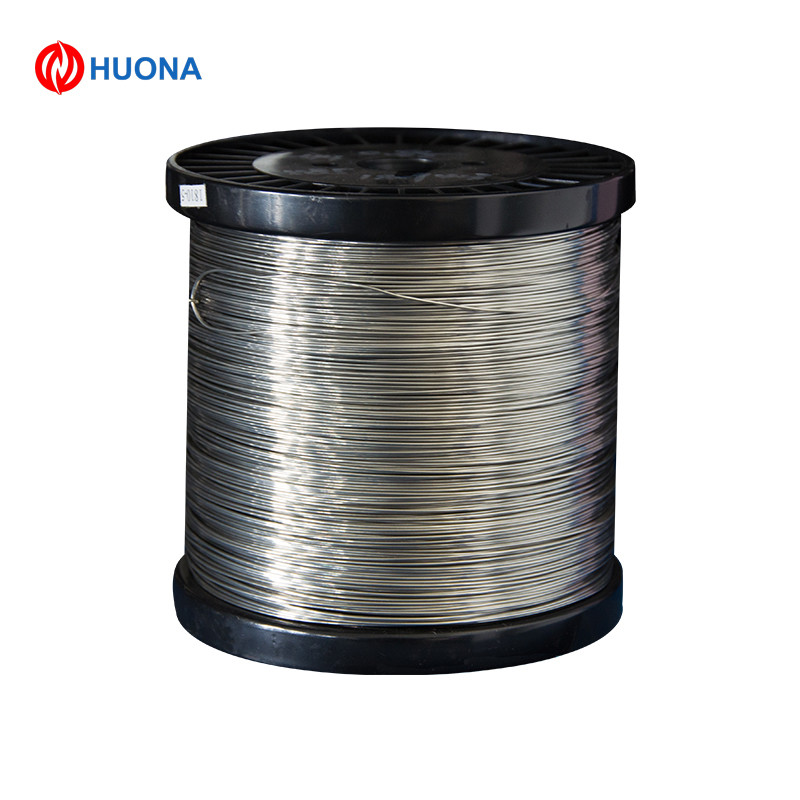

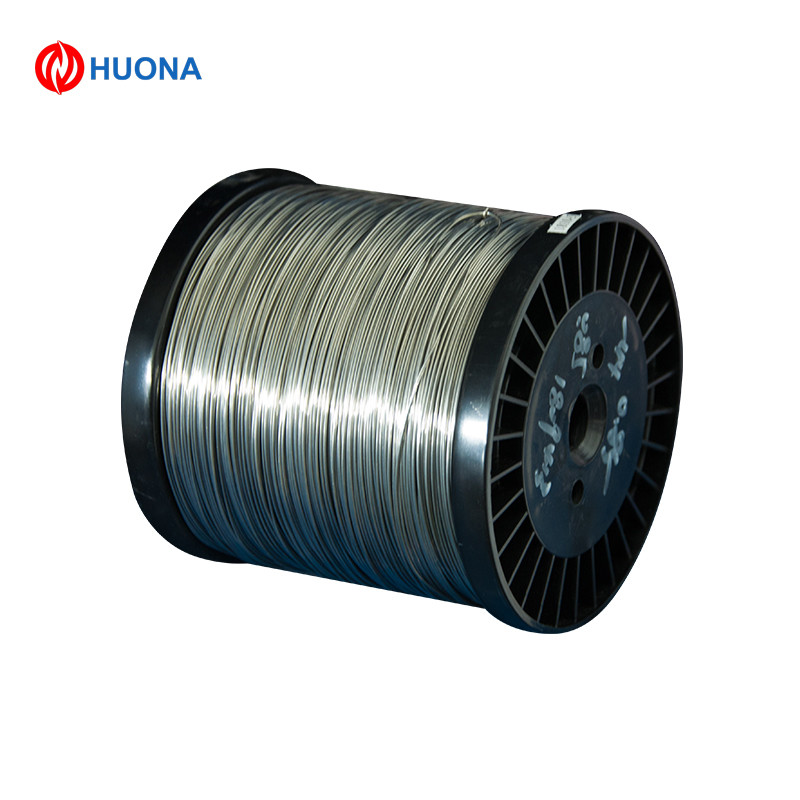

Heating Resistance Copper Nickel/CuNi44/Constantan Heating Wire For Winding
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Model Number | CuNi44 |
| Minimum Order Quantity | 100 Meters |
| Price | US$20.00 |
| Packaging Details | Spool Package With Carton Box, Coil Package With Polybag For Cuni44 |
| Delivery Time | 5-21DAYS |
| Payment Terms | T/T,Western Union,MoneyGram,L/C |
| Supply Ability | 500 Tons Per Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Nickel Copper | Resistivity | 0.5 |
|---|---|---|---|
| Density | 8.9 G/cm3 | Condition | Hard / Soft |
| Melting Point | 1100℃ | Tensile Strength | 420 MPA |
| Maximum Temperature | 420℃ | Sureface： | Bright |
| Highlight | CuNi44 Heating Resistance Wire,Heating Resistance Wire For Winding,Copper Nickel Alloy Wire For Winding |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Product Description
Copper Nickel/ CuNi44/Constantan Heating Wire / Wires
| Product Name | Copper Nickel Alloy CuNi Wire |
| Product Description | Copper Nickel Alloy is mainly made of copper and nickel. The copper and nickel can be melted together no matter what percentage. Normally the resistivity of CuNi alloy will be higher if the Nickel content is larger than Copper content. From CuNi6 to CuNi44, the resistivity is from 0.1μΩm to 0.49μΩm. That will help the resistor manufacture choosing the most suitable alloy wire. |
| Product Features |
By the way, the Copper Nickel wire is easy to be welded and easy to be fabricated, so it can be made into many forms and widely used in all areas. |
Specification
| Wire | D=0.03mm~8mm |
| Ribbon | Width=0.4mm-40mm, Thickness=0.03mm-2.9mm |
| Strip | Width=8mm-250mm, Thickness=0.1mm-3mm |
| Foil | Width=6mm-120mm, Thickness=0.003mm-0.1mm |
| Bar | Width=8mm-100mm, Thickness=50mm-1000mm |
| Other sizes | Available Upon Your Requirements |
