Type K Chromel-Alumel Thermocouple Strip 0.12×2.2mm Balanced Hardness Alloy Tape for Industrial Temperature Sensors
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO 9001 |
| Model Number | Type K |
| Minimum Order Quantity | 5KG |
| Price | Negotiable |
| Packaging Details | Carton/Wooden Case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Product Details
| Thermocouple Type | Type K (Standard Chromel Positive + Alumel Negative Matching Pair) | Standard Dimension | 0.12mm (Thickness) × 2.2mm (Width) |
|---|---|---|---|
| Custom Size Range | Thickness: 0.05–0.45mm; Width: 1.0–9.0mm | Surface Treatment | Balanced Semi-Soft Annealed, Gloss Polished, Edge Deburred, Film Wrapped |
| Operating Temperature | -195°C ~ 1290°C (Dry Conventional Industrial Oxidizing Environments) | Alloy Composition | Positive: Standard Chromel (Ni-Cr); Negative: Standard Alumel (Ni-Si-Mn) |
| Measurement Accuracy | IEC Grade 1 Standard Thermoelectric Tolerance | Processing Performance | Balanced Tensile Strength & Flexibility, Bendable, Stampable, Stretch-resistant |
| Highlight | Type K Chromel-Alumel thermocouple strip,Flat thermocouple strip for industrial sensors,Balanced hardness alloy thermocouple tape |
||
Product Description
Product Overview

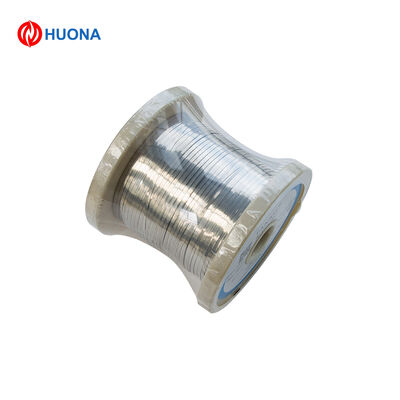

This balanced-performance Type K Chromel-Alumel flat thermocouple strip from Huona is a versatile general-purpose sensing alloy designed for multi-scenario industrial temperature measurement. Equipped with perfectly matched Chromel positive and Alumel negative alloy conductors, the strip adopts medium-spec precision rolling and balanced-hardness semi-soft annealing craft. It delivers moderate tensile strength and great bending flexibility, with uniformly glossy surface, consistent thickness and width tolerance, plus steady thermoelectric conversion performance. Packaged with transparent protective film wrapping on plastic spools as shown in the picture, it avoids surface scratches during transit and storage, suitable for mass production of standard surface thermocouples, general equipment temperature monitoring parts and multi-purpose thermal detection probes for factories and test workshops.
Core Specifications
Product Name: Type K Chromel-Alumel Balanced Hardness Universal Flat Thermocouple Strip
Conductor Material: Positive (Chromel / KP Ni-Cr Standard Alloy) / Negative (Alumel / KN Ni-Si-Mn Standard Alloy)
Processing Technology: Medium-spec precision rolling + balanced semi-soft annealing + edge smooth finishing
Standard Specification: 0.12mm Thickness × 2.2mm Width
Customizable Size Range: Thickness 0.05–0.45mm, Width 1.0–9.0mm
Surface Condition: Uniform glossy silver finish, smooth deburred edges, wrapped with transparent anti-scratch protective film
Thermoelectric Performance: Fully calibrated to global IEC Type K standards, low thermal signal fluctuation under variable working loads
Operating Temperature Range: -195°C ~ 1290°C (long-term stable operation in dry oxidizing industrial atmospheres)
Standards Compliance: IEC 60584-1, GB/T 4989, RoHS 2.0, REACH environmental certification
Key Differentiating Advantages
1. Universally Matched Chromel-Alumel Standard Alloy Pair
This flat strip adopts widely recognized industrial standard Chromel-Alumel alloy formula with strict raw material impurity control. Every batch undergoes full thermoelectric calibration to maintain linear voltage output throughout the whole temperature range, minimizing measurement deviation for daily industrial detection. Stable batch-to-batch consistency reduces adjustment work during sensor mass production, ideal for general standardized sensing component manufacturing.
2. Balanced High & Medium Temperature Anti-Oxidation Ability
With balanced alloy grain distribution, the material maintains reliable oxidation resistance at both medium and sub-high working temperatures. It slows oxide layer accumulation under regular cyclic heating and cooling, preventing gradual loss of sensing precision, and extends the service cycle of general-purpose thermocouple probes for conventional heating equipment.
3. Dual Balanced Mechanical Property: Strength & Flexibility
Semi-soft annealing achieves an ideal balance of tensile strength and bendability. The strip resists stretching breakage during assembly while supporting frequent winding, laminating and punching without cracking or rebound deformation. Its medium-thin flat design provides sufficient contact area for stable temperature capture without limiting installation in narrow spaces.
4. Anti-Scratch Packaged & Uniform Surface Dimensional Control
Adopting transparent plastic film full wrapping on spools, the strip surface stays intact during transportation and stock storage, avoiding scratches, dust and oxidation spots before processing. Precision rolling and slitting ensure tiny dimensional deviation across the entire reel, with smooth rounded edges that won’t damage insulation materials in sensor encapsulation procedures.
5. Wide Compatibility with Ordinary Industrial Working Environments
This Chromel-Alumel alloy flat tape possesses decent thermal shock and dry atmospheric corrosion resistance, adapting to most conventional factory thermal testing conditions including intermittent heating, frequent temperature shifts and general dry air surroundings. It sustains stable mechanical and thermoelectric parameters for long-term daily automatic temperature monitoring tasks.
Technical Specifications Table
| Attribute | Typical Specification |
|---|---|
| Thermocouple Type | Type K (Standard Chromel Positive + Alumel Negative Matching Pair) |
| Standard Dimension | 0.12mm (Thickness) × 2.2mm (Width) |
| Custom Size Range | Thickness: 0.05–0.45mm; Width: 1.0–9.0mm |
| Surface Treatment | Balanced Semi-Soft Annealed, Gloss Polished, Edge Deburred, Film Wrapped |
| Operating Temperature | -195°C ~ 1290°C (Dry Conventional Industrial Oxidizing Environments) |
| Alloy Composition | Positive: Standard Chromel (Ni-Cr); Negative: Standard Alumel (Ni-Si-Mn) |
| Measurement Accuracy | IEC Grade 1 Standard Thermoelectric Tolerance |
| Processing Performance | Balanced tensile strength & flexibility, bendable, stampable, stretch-resistant |
Supply & Packaging Standard
Supply Form: Continuous flat strip evenly wound on solid industrial plastic spools, fully wrapped with transparent protective film; standard full-length reels and custom cut fixed-length segments available
Packaging: Film anti-scratch wrapping + independent moisture-proof sealed outer package with shockproof padding, suitable for bulk cross-border shipment and long-term warehouse storage without surface damage
MOQ: 1 film-wrapped spool for sample trial production; large-volume bulk supply for general sensor manufacturers, equipment factories and testing laboratory suppliers
Customization Service: Custom strip thickness, width, spool loading weight, annealing hardness and protective packaging solution based on universal industrial sensor production requirements
Typical Application Scope
General Standard Thermocouple Fabrication: Main raw material for mass production of common patch and contact Type K temperature sensing probes.
Conventional Industrial Equipment Monitoring: Real-time temperature tracking for ordinary drying ovens, small heat treatment machines and automated production line heating modules.
Workshop & Laboratory Routine Testing: Multi-purpose temperature sensing parts for general thermal test benches and material conventional performance analysis equipment.
Light & Medium Industrial Heating Machinery: Stable temperature detection for textile drying gear, food processing heating devices and plastic forming medium-temperature equipment.
Multi-Scenario Universal Thermal Detection: Custom flat temperature measuring components for various common industrial temperature monitoring projects with balanced precision and cost demands.
