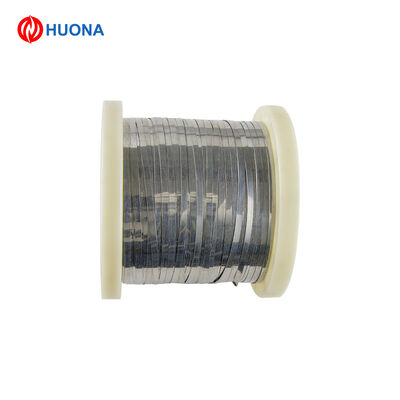

CuNi23 Copper Nickel Resistance Alloy Wire Good Ductility & Solderability Non-magnetic Alloy Wire for Electronic Instruments Industrial Heating Equipment
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | HUONA |
| Certification | SGS/ISO9001 |
| Model Number | wire |
| Minimum Order Quantity | negotiation |
| Price | negotiation |
| Packaging Details | Spool + Carton + Wooden Case |
| Delivery Time | 7-20days |
| Payment Terms | T/T |
| Supply Ability | 100 Tons per year |
Product Details
| Max Continuous Operating Temperature（℃） | 300 | Resisivity（ μΩ/m，20℃） | 0.49 |
|---|---|---|---|
| Density（g/m³） | 8.9 | TCR（10−6/℃） | ＜16 |
| Tensile Strength(N/m㎡） | ≥350 | Melting Point（℃） | 1150 |
| Magnetic Property | Non | Diameter | Negotiation |
| Highlight | Stable resistance performance,Easy processing & forming,Excellent solderability |
||
Product Description
CuNi23, also marked as NC030, is a widely used copper-nickel resistance alloy. It features stable resistance performance and low temperature coefficient of resistance, together with outstanding corrosion and oxidation resistance. This non-magnetic material has great ductility, and is easy to process and weld. Available in wire, strip and other forms, it fits various working conditions. It is extensively applied in precision resistors, thermocouples, heating elements, electronic instruments, electrical equipment and industrial control parts.
1. Chemical Composition
|
Ni |
23 |
|
Cu |
Bal |
|
Mn |
0.5 |
2. Technical Specifications
|
Parameter |
Specification |
|
Max continuous Operating Temperature(℃) |
300 |
|
Resisivity( μΩ/m,20℃) |
0.3 |
|
Density(g/m³) |
8.9 |
|
TCR(10−6/℃) |
＜16 |
|
Tensile strength(N/m㎡) |
≥350 |
|
Melting point(℃) |
1150 |
|
Magnetic Property |
non |
3. Production Attributes
|
Product Form |
wire |
|
Diameter |
negotiation |
|
Surface Finish |
Bright, Polished |
|
Packaging Type |
Coil, Bundle, Straight Rods |
|
Certification |
ISO9001, SGS, and so on |
|
Application Environment |
Chemical, Industrial,Home |
4. Applications
- Precision resistors and resistor components
- Thermocouples and temperature measuring parts
- Industrial heating elements
- Electronic instruments and meters
- Electrical equipment and control devices
- Household electrical appliances
5.Key Features
- Stable electrical resistance performance
- Low temperature coefficient of resistance
- Good corrosion and oxidation resistance
- Excellent ductility, easy to process
- Reliable weldability
- Non-magnetic property
- Uniform overall performance
