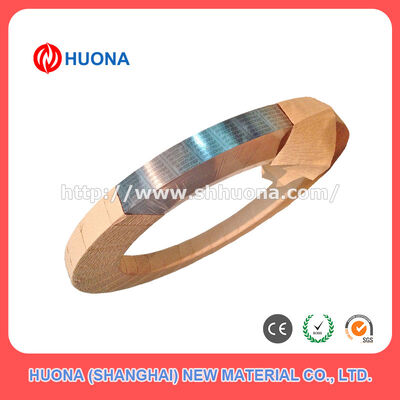

Industrial Grade Huona 5J1580 / 1580 Thermostatic Bimetallic Alloy Strip 0.15*60mm High Sensitivity for Precision Temperature Control
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | 5J1580 |
| Minimum Order Quantity | 10KG |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Product Details
| Alloy Grade | 5J1580 | Thickness | 0.15mm |
|---|---|---|---|
| Width | 60mm | Form | Coil |
| Tensile Strength | ≥530MPa | Elongation | ≥17% |
| Density | ~8.05g/cm³ | Surface Finish | Bright/light Oxide (standard) |
| Highlight | Industrial grade thermostatic bimetallic strip,High sensitivity temperature control alloy,Precision thermal bimetal 0.15x60mm |
||
Product Description
Industrial Grade 5J1580 Thermostatic Bimetallic Alloy Strip
High sensitivity 0.15×60mm precision temperature control strip for industrial applications requiring reliable thermal actuation and medium-temperature protection.
Product Overview
5J1580 (also known as Alloy 1580 / Type 1580 thermostatic bimetallic strip) from Huona New Material is a precision composite material formed by metallurgically bonding two metal layers with distinct thermal expansion coefficients. It produces predictable, reversible bending deformation in response to temperature changes, making it ideal for sensitive thermal actuation, precise temperature control, and medium-temperature overheat protection devices.
Manufactured via precision cold rolling and stress-relief annealing, it delivers consistent thermostatic performance and excellent mechanical stability across a wide temperature range.
Standard Designations & Core Specifications
Alloy Grade
- Chinese Grade: 5J1580
- International Equivalent: Alloy 1580 / Type 1580 (ASTM/ANSI standard)
Typical Dimensions
- Thickness: 0.15mm (customizable: 0.06-2.5mm)
- Width: 60mm (customizable: 12-320mm)
- Form: Coil (standard: 80m/roll; cut-to-size sheets available)
- Tolerance: Thickness ±0.006mm, Width ±0.12mm
Core Material Composition
- High-expansion layer: Fe-Ni-Cr-Mn alloy
- Low-expansion layer: Fe-Ni alloy (Invar-type)
Key Thermal Performance
- Curvature temperature coefficient (α): ~8.0×10⁻⁶ /℃ (20-130℃)
- Operating temperature range: -60℃ ~ 220℃ (continuous)
Compliant Standards: GB/T 4461-2016, ASTM B388, RoHS 2.0, REACH
Manufacturer: Huona New Material (Shanghai) Co., Ltd., certified to ISO 9001 and IATF 16949
Key Core Advantages
Balanced Sensitivity & Mechanical Strength
- Moderate Curvature Sensitivity: Curvature temperature coefficient of ~8.0×10⁻⁶ /℃, ideal for applications requiring balanced sensitivity and mechanical robustness
- Reversible Deformation: Fully reversible thermal cycling without permanent deformation or fatigue, ensuring long-term reliability
Excellent Mechanical Properties
- High Strength & Formability: Tensile strength ≥530MPa, elongation ≥17%, enabling complex stamping, bending, and punching operations
- Good Fatigue Resistance: Withstands repeated thermal cycling without cracking or performance degradation, suitable for dynamic applications
Uniform Quality & Consistency
- Precision Rolling: Tight thickness and width tolerances ensure uniform thermal response across the entire strip
- Strong Interlayer Bonding: Metallurgical bonding between high- and low-expansion layers prevents delamination under thermal and mechanical stress
Versatile Processability
- Easy Forming: Compatible with stamping, bending, punching, and riveting to produce complex bimetallic elements
- Weldability: Suitable for resistance welding and soldering, enabling seamless integration into electrical and mechanical components
Reliable Environmental Resistance
- Corrosion Resistance: Good resistance to atmospheric corrosion and mild chemicals, suitable for industrial and consumer applications
- Wide Temperature Stability: Maintains consistent thermostatic performance across -60℃ to 220℃, suitable for medium-temperature environments
Technical Specifications
| Attribute | Value (Typical) |
|---|---|
| Alloy Grade | 5J1580 (Alloy 1580 / Type 1580) |
| Thickness | 0.15mm (±0.006mm) |
| Width | 60mm (±0.12mm) |
| Form | Coil (80m standard) / Cut-to-size sheets |
| Curvature Temperature Coefficient | ~8.0×10⁻⁶ /℃ (20-130℃) |
| Operating Temperature | -60℃ ~ 220℃ (continuous) |
| Tensile Strength | ≥530MPa |
| Elongation | ≥17% |
| Density | ~8.05g/cm³ |
| Surface Finish | Bright/light oxide (standard) |
Product Specifications
| Item | Specification |
|---|---|
| Supply Form | Coil (80m/roll); cut-to-size sheets available |
| Thickness Range | 0.06-2.5mm |
| Width Range | 12-320mm |
| Surface Treatment | Bright finish / pickled (optional) |
| Packaging | Anti-corrosion paper + wooden reel (prevents oxidation and damage) |
| MOQ | 50kg, small batches available for R&D |
| Customization | Thickness/width/length; surface finish; thermal performance grade |
| Processability | Stamping, bending, punching, riveting, resistance welding, soldering |
Typical Application Scenarios
- Precision Thermostats: Household appliances (ovens, water heaters), automotive climate control, and industrial temperature regulators
- Medium-Temperature Overheat Protection: Circuit breakers, thermal fuses, and motor protection devices
- Thermal Actuators: Industrial valve actuators, fire safety devices, and automotive thermostat components
- Measuring Instruments: Bimetallic thermometers and medium-temperature temperature indicators
- Consumer Electronics: Power adapters, battery management systems, and small appliance safety controls
