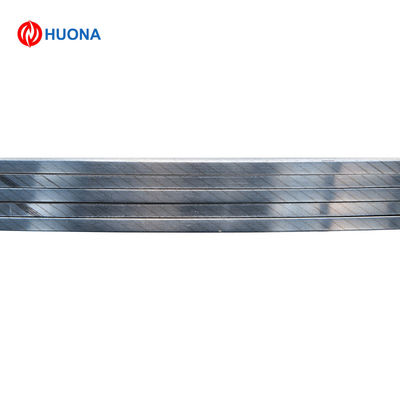

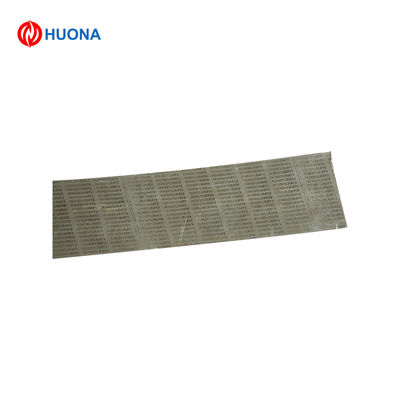

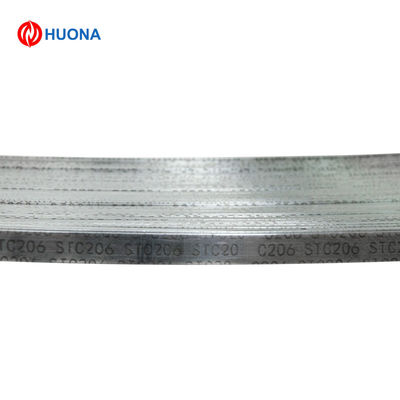

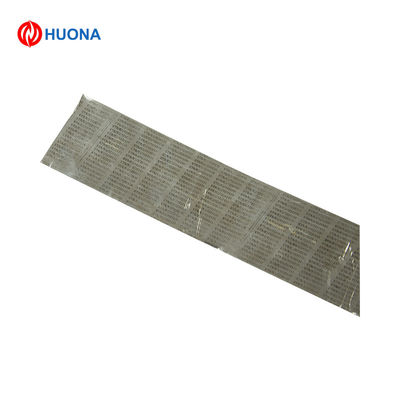

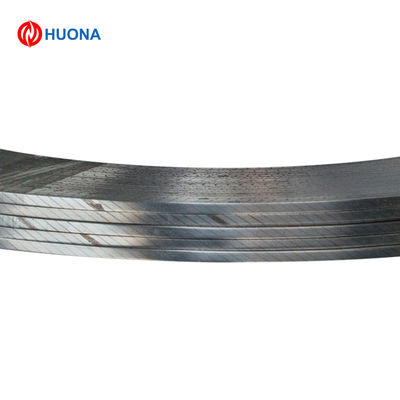

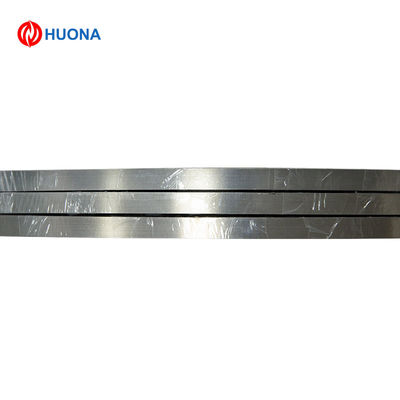

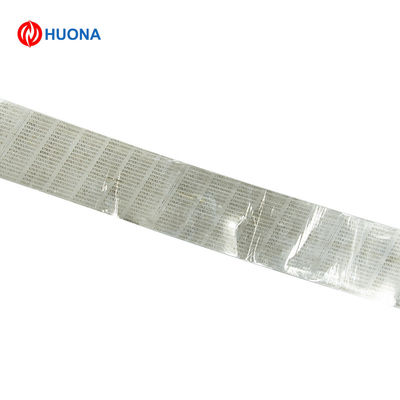

5j20110/5j1413/5j1416/5j1580 Nickel Iron Alloy Strip 0.3*6mm Size Customized Bimetal Strip
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 SGS |
| Model Number | STRIP |
| Minimum Order Quantity | 1KG |
| Price | US$30.00-60.00 |
| Packaging Details | 1000kg Per Week |
| Delivery Time | WEEK |
| Payment Terms | T/T |
| Supply Ability | 1000kg Per Week |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Customized Nickel Iron Alloy Strip,Customized alloy steel strip,5j1416 Nickel Iron Alloy Strip |
||
|---|---|---|---|
You can tick the products you need and communicate with us in the message board.
Product Description
Basic Info.
Purity
Nickel36
Alloy
Alloy
Type
Bimetal Strip
Powder
Not Powder
Product Name
Bimetal Strip
Grade
108sp/5j20110
Passive Component
Feni36
Intermediate Layer
Fe-Cu
Active Component
Mncu18ni10
Thickness
0.1 to 2.0mm
Width
1.0 to 200mm
Temper
Hard
Resistivity
1.10
Density
7.6g/cm3
Transport Package
Carton or Wooden Case
Specification
ASTM-B388
Trademark
HUONA
Origin
Xuzhou, Jiangsu, China
HS Code
7505120000
Production Capacity
1000kg Per Week
Product Description
DLX bimetallic strip or bimetal strip is a strip that consists of two strips of different metals which expand at different rates as they are heated. They are used to convert a temperature change into mechanical displacement. The different expansions force the flat strip to bend one way if heated, and in the opposite direction if cooled below its initial temperature. The metal with the higher coefficient of thermal expansion is on the outer side of the curve when the strip is heated and on the inner side when cooled.
| Code | Active Component | Passive Component | Sensitivity | Resistance | Suit Temperature |
| 5J20110(108SP) | Mn72Ni10Cu18 | FeNi36 | High | High | Middle |
| 5J14140 | Mn72Ni10Cu18 | FeNi36 | Middle | High | Middle |
| 5J5120 | Mn72Ni10Cu18 | Ni45Cr6 | Middle | High | Middle |
| 5J1480 | Ni22Cr3 | Ni36 | M | M | M |
| 5J1380 | Ni19Mn7 | Ni34 | M | M | L |
| 5J1580 | Ni20Mn6 | Ni36 | M | M | M |
| 5J1017 | Ni | Ni36 | M | L | M |
| 5J1413 | Cu62Zn38 | Ni36 | M | L | H |
| 5J1416 | Cu62Zn38 | Ni36 | M | L | H |
| 5J1070 | Ni19Cr11 | Ni42 | M | H |
Physical Properties
| Density | 7.6g/cm3 |
| Resistivity at 20 ºC | 1.10±4% |
| Thermal Conductivity | 6.0λ/ W |
| Elastic Modulus | 110-143 E/GPA |
| Bending K / 10-6 ºC-1 | 20.8 |
| Temperature Bending rate | 34%-42% |
| Allowable Temp | -70~200ºC |
| Liner Temperature | -20~150ºC |
