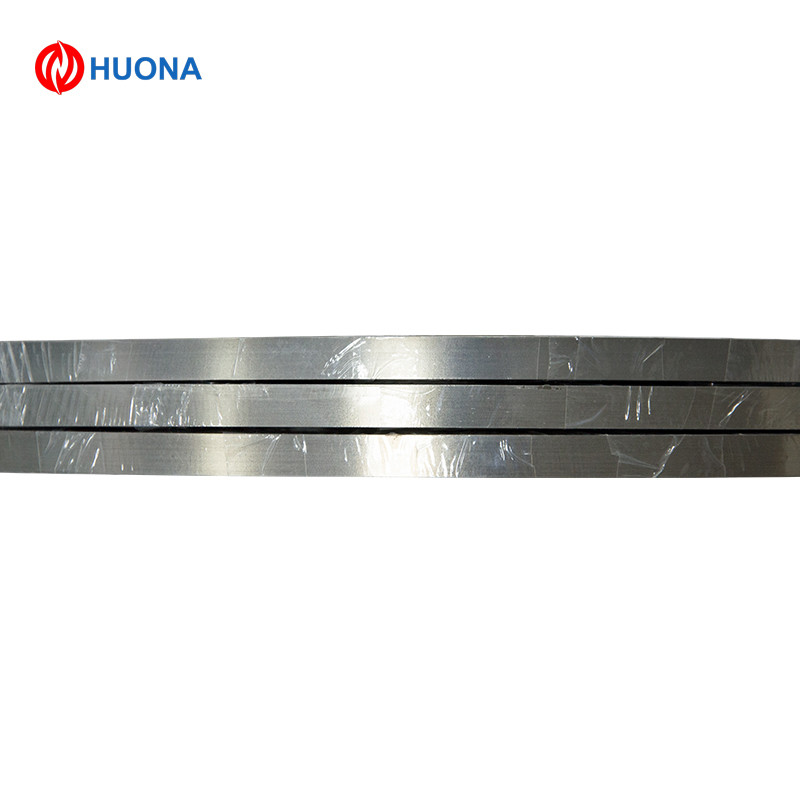

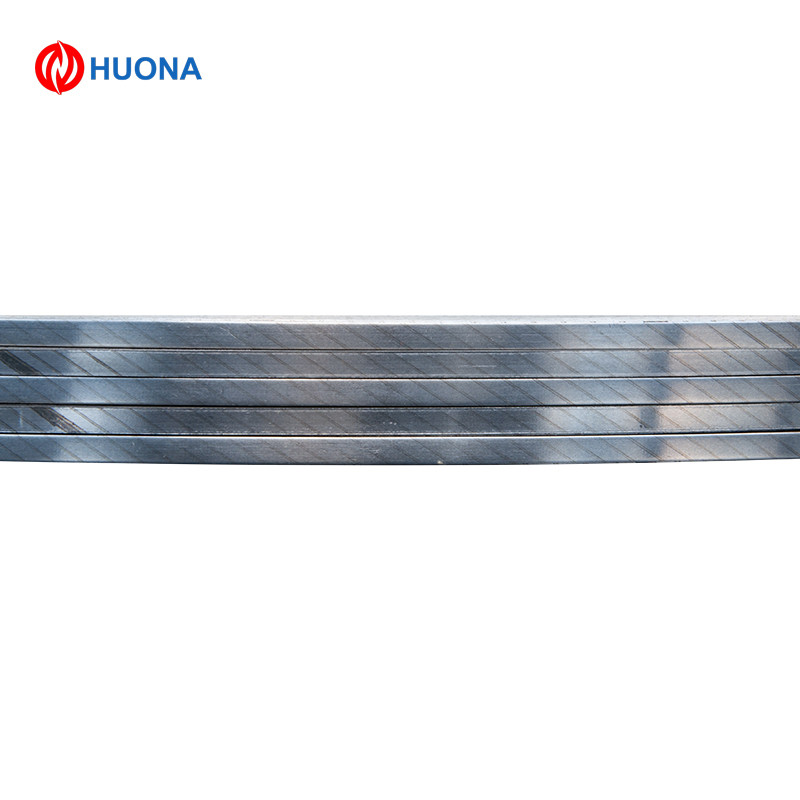

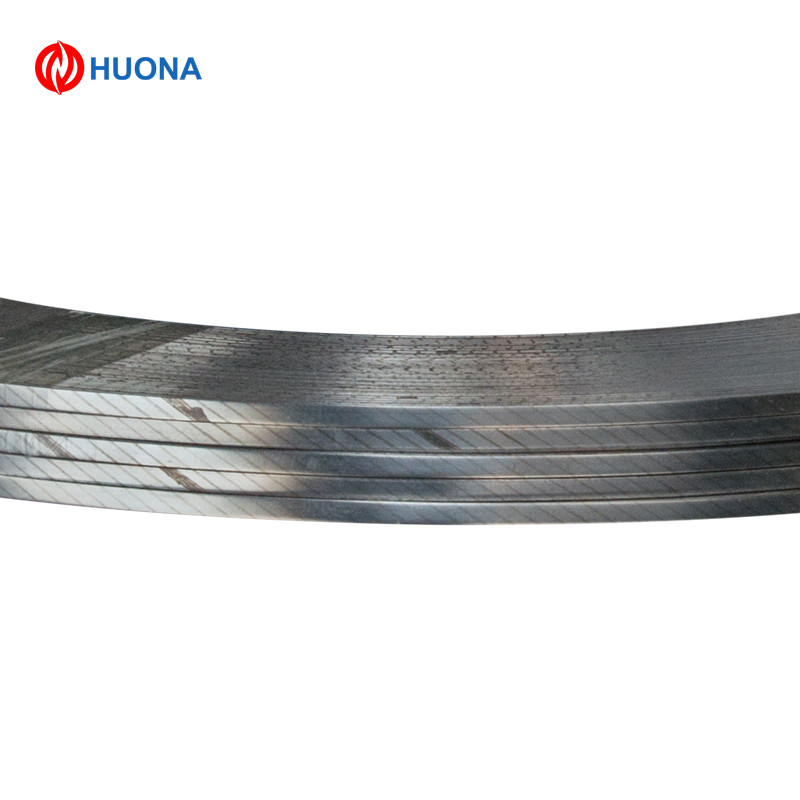

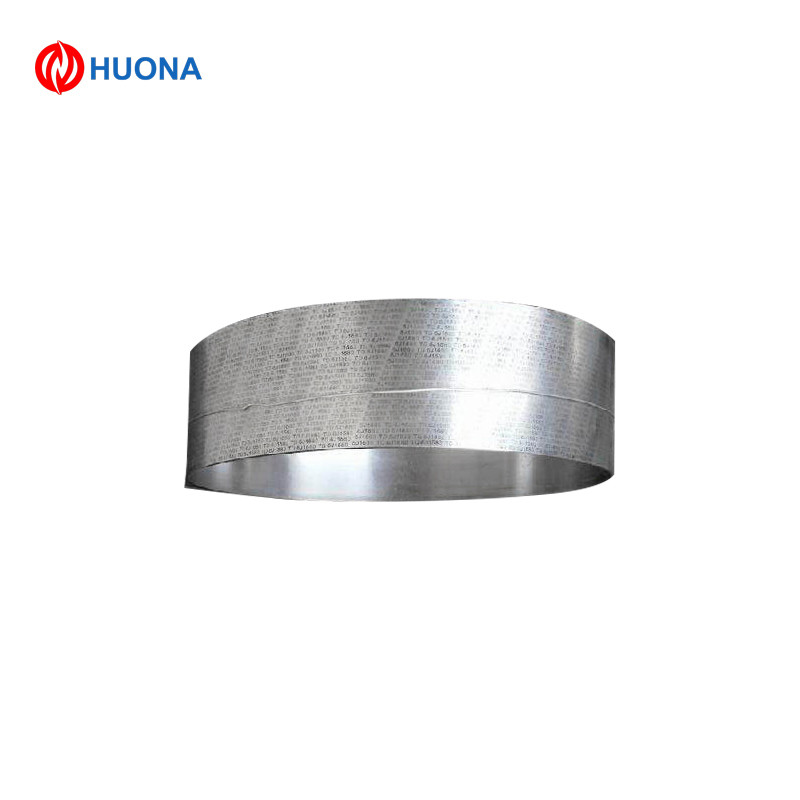

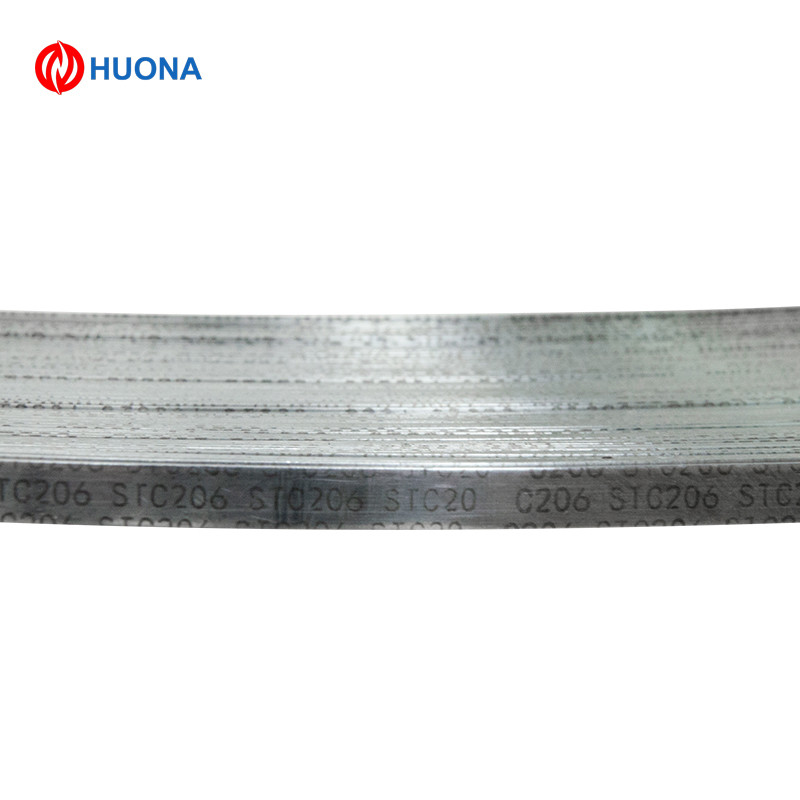

5J1480 ASTM Thermostat Bimetallic Strip 5mm-120mm Width Low Coefficient Of Expansion

  • 5J1480 ASTM Thermostat Bimetallic Strip 5mm-120mm Width Low Coefficient Of Expansion
  • 5J1480 ASTM Thermostat Bimetallic Strip 5mm-120mm Width Low Coefficient Of Expansion
  • 5J1480 ASTM Thermostat Bimetallic Strip 5mm-120mm Width Low Coefficient Of Expansion
  • 5J1480 ASTM Thermostat Bimetallic Strip 5mm-120mm Width Low Coefficient Of Expansion
  • 5J1480 ASTM Thermostat Bimetallic Strip 5mm-120mm Width Low Coefficient Of Expansion
  • 5J1480 ASTM Thermostat Bimetallic Strip 5mm-120mm Width Low Coefficient Of Expansion
Place of Origin Shanghai
Brand Name Huona
Certification ISO 9001
Model Number 5J1480
Minimum Order Quantity 10kg
Price USD 18-USD41/KGS
Packaging Details coil
Delivery Time 5-20 Days
Payment Terms L/C,T/T,Western Union,MoneyGram
Supply Ability 10000kg/week

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Boiler Plate Width 5mm~120mm
Standard GB,ASTM,JIS,AISI,BS Thickness 0.1mm
Product Name Bimetallic Strips Color Silver
Highlight

5J1480 Thermostat Bimetallic Strip

,

ASTM Thermostat Bimetallic Strip

,

ASTM heating bimetallic strip
Leave a Message
Product Description
Application: Boiler Plate Width: 5mm~120mm
Standard: GB,ASTM,JIS,AISI,BS Material: Bimetal
Thickness: 0.1mm Product Name: Bimetallic Strips
Color: Silver Keyword: Bimetallic Strip
Highlight:

low coefficient of expansion Bimetallic strip

,

135 Bimetallic strip

,

5J1480 Bimetallic strip


Huona Alloy-5J1480 (Bimetallic strip)



(Common Name: 135)

Bimetallic strip is used to convert a temperature change into mechanical displacement. The strip consists of two strips of different metals which expand at different rates as they are heated, usually steel and copper, or in some cases steel and brass. The strips are joined together throughout their length by riveting, brazing or welding. The different expansions force the flat strip to bend one way if heated, and in the opposite direction if cooled below its initial temperature. The metal with the higher coefficient of thermal expansion is on the outer side of the curve when the strip is heated and on the inner side when cooled

The sideways displacement of the strip is much larger than the small lengthways expansion in either of the two metals. This effect is used in a range of mechanical and electrical devices. In some applications the bimetal strip is used in the flat form. In others, it is wrapped into a coil for compactness. The greater length of the coiled version gives improved sensitivity.

Diagram of a bimetallic strip showing how the difference in thermal expansion in the two metals leads to a much larger sideways displacement of the strip.



Composition



Grade 5J1480
High expansion layer Ni22Cr3
Low expansion layer Ni36



Chemical composition (%)



Grade C Si Mn P S Ni Cr Cu Fe
Ni36 ≤0.05 ≤0.3 ≤0.6 ≤0.02 ≤0.02 35~37 - - Bal.



Grade C Si Mn P S Ni Cr Cu Fe
Ni22Cr3 ≤0.35 0.15~0.3 0.3~0.6 ≤0.02 ≤0.02 21~23 2.0~4.0 - Bal.

Typical Physical properties

Density (g/cm3) 8.2
Electrical resistivity at 20℃(Ωmm2/m) 0.8±5%
Thermal conductivity, λ/ W/(m*℃) 22
Elastic Modulus, E/ Gpa 147~177
Bending K / 10-6℃-1(20~135℃) 14.3
Temperature bending rate F/(20~130℃)10-6℃-1 26.2%±5%
Allowable temperature (℃) -70~ 350
Linear temperature (℃) -20~ 180



Application: The material is mainly in automatic control devices and instrumentation (eg: exhaust thermometers, thermostats, voltage regulators, temperature relay, automatic protection switching, diaphragm meters, etc.) make temperature control, temperature compensation, current limit, temperature indicator and other heat-sensitive components.



Feature: The basic characteristics of Thermostat Bimetallic is bending deformation with temperature changes, resulting in a certain moment.
Thermostat Bimetallic Strip expansion coefficient is different from the two or more layers of metal or alloy along the entire contact surface firmly bonded, having atemperature-dependent shape change occurs thermosensitivefunctional composites. Wherein thehigher expansion coefficientofthe activelayer is a layer called a low coefficient of expansion of the layer is named passive layer.
