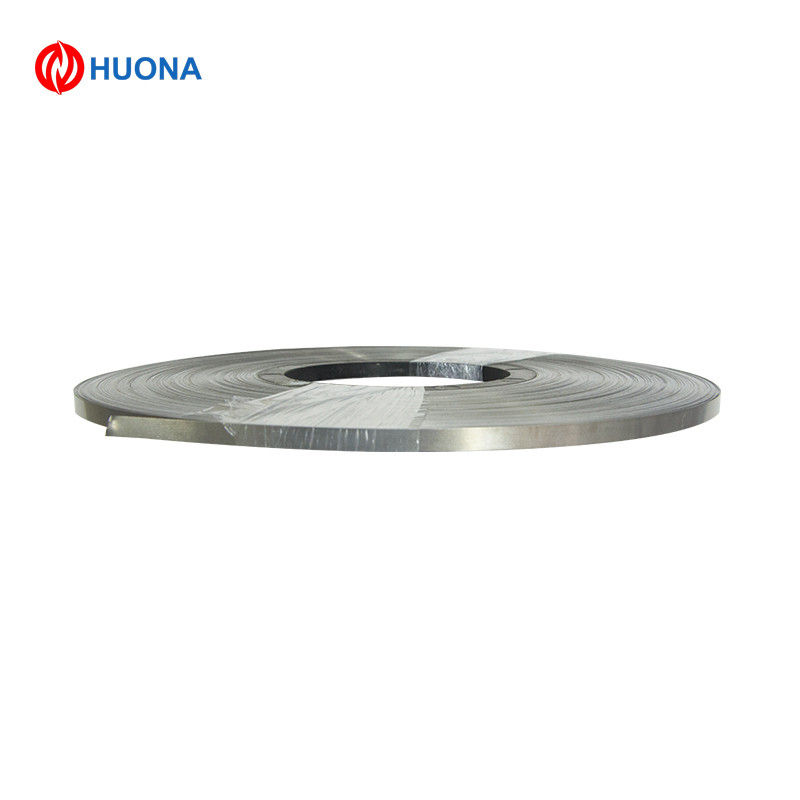

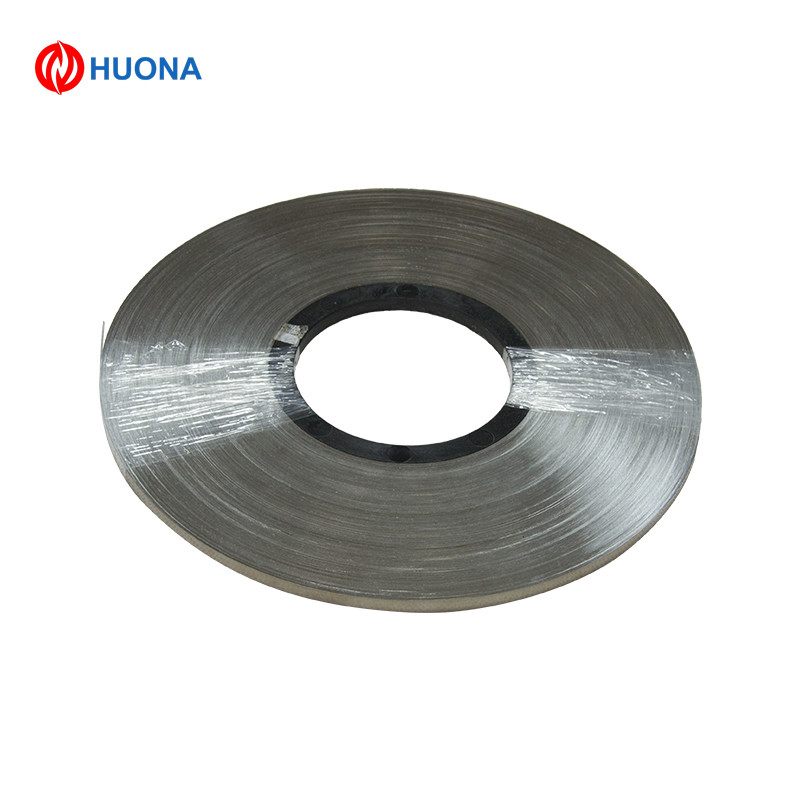

1mmx5mm Durable Thermal Bimetals Strip 5J20110 Flexible For Spring

  • 1mmx5mm Durable Thermal Bimetals Strip 5J20110 Flexible For Spring
  • 1mmx5mm Durable Thermal Bimetals Strip 5J20110 Flexible For Spring
Place of Origin Shanghai
Brand Name Huona
Certification ISO 9001
Model Number 5J20110
Minimum Order Quantity 100m
Price Bargain
Packaging Details plywood pallets or wooden cases
Delivery Time 5-21days
Payment Terms L/C,T/T,Western Union,MoneyGram
Supply Ability 100tons/month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resistance Value 0.226ohm/m+/-5% Conductor Dimension 1.0(+/-0.025)mmx5.0(+/-0.08)mm
Length 26m/kg Weight About 5kgs/coil
Grade 5J20110 Density 7.7g/cm3
Highlight

Flexible Heating Bimetallic Strip

,

Durable Heating Bimetallic Strip

,

Durable Thermal Bimetal tape
Leave a Message
Product Description

1mmx5mm Thermal Bimetals Strip 5J20110 For Spring



Application:This material is mainly used for automatic control devices and meters (such as: exhaust thermometer, thermostat, voltage regulator, temperature relay, automatic protection switch, diaphragm meter, etc.) as temperature control, temperature compensation, current limiting, temperature indicator and other thermal sensing elements.



Feature: The basic characteristics of Thermostat Bimetallic is bending deformation with temperature changes, resulting in a certain moment.
Thermostat Bimetallic Strip expansion coefficient is different from the two or more layers of metal or alloy along the entire contact surface firmly bonded, having a temperature-dependent shape change occurs thermosensitive functional composites. Wherein the higher expansion coefficient of the active layer is a layer called a low coefficient of expansion of the layer is named passive layer.


Description of this material


Composition

Grade 5J20110
High expansion layer Mn75Ni15Cu10
10Low expansion layer Ni36



Chemical composition(%)

Grade C Si Mn P S Ni Cr Cu Fe
Ni36 ≤0.05 ≤0.3 ≤0.6 ≤0.02 ≤0.02 35~37 - - Bal.
Grade C Si Mn P S Ni Cr Cu Fe
Mn75Ni15Cu10 ≤0.05 ≤0.5 Bal. ≤0.02 ≤0.02 14~16 - 9~11 ≤0.8



Typical Physical properties

Density (g/cm3) 7.7
Electrical resistivity at 20℃(Ωmm2/m) 1.13 ±5%
Thermal conductivity, λ/ W/(m*℃) 6
Elastic Modulus, E/ Gpa 113~142
Bending K / 10-6 ℃-1(20~135℃) 20.8
Temperature bending rate F/(20~130℃)10-6℃-1 39.0%±5%
Allowable temperature (℃) -70~ 200
Linear temperature (℃) -20~ 150



1mmx5mm Durable Thermal Bimetals Strip 5J20110 Flexible For Spring 0
FAQ

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.



2. How can you pay for small sample amount?

We have account, wire transfer for sample amount also ok.



3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.



4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.



5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.



6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
