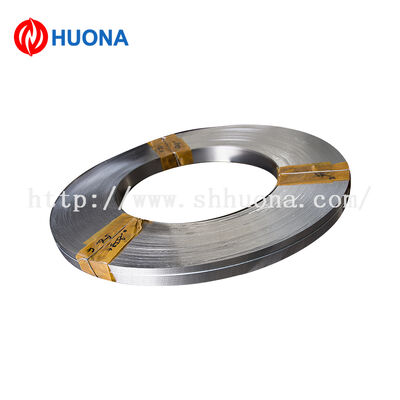

Huona 5J16110 Thermostatic Bimetallic Alloy 16110 0.25*30mm High Sensitivity Strip for Precision Temperature Sensing Applications
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | 5J16110 |
| Minimum Order Quantity | 10KG |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Product Details
| Alloy Grade | 5J16110 | Thickness | 0.25mm |
|---|---|---|---|
| Width | 30mm | Form | Coil |
| Elongation | ≥16% | Operating Temperature | -60℃ ~ 230℃ (continuous) |
| Curvature Temperature Coefficient | ~11.0×10⁻⁶ /℃ (20–130℃) | Density | ~8.1g/cm³ |
| Highlight | thermostatic bimetallic alloy strip,high sensitivity temperature sensing strip,precision thermal bimetal 0.25x30mm |
||
Product Description
5J16110 Thermostatic Bimetallic Alloy 16110
0.25×30mm High Sensitivity Strip for Precision Temperature Sensing Applications
Product Overview
5J16110 (also known as Alloy 16110 / Type 16110 thermostatic bimetallic strip) from Huona New Material is a precision composite material formed by metallurgically bonding two metal layers with distinct thermal expansion coefficients. It produces predictable, reversible bending deformation in response to temperature changes, making it ideal for high-sensitivity thermal actuation, precise temperature control, and medium-load overheat protection devices.
Standard Designations & Core Specifications
- Alloy Grade: Chinese Grade: 5J16110 | International Equivalent: Alloy 16110 / Type 16110 (ASTM/ANSI standard)
- Typical Dimensions: Thickness: 0.25mm (customizable: 0.08-3.0mm) | Width: 30mm (customizable: 10-350mm)
- Form: Coil (standard: 50m/roll; cut-to-size sheets available)
- Tolerance: Thickness ±0.008mm, Width ±0.15mm
- Core Material Composition: High-expansion layer: Fe-Ni-Cr-Mn alloy | Low-expansion layer: Fe-Ni alloy (Invar-type)
- Key Thermal Performance: Curvature temperature coefficient (α): ~11.0×10⁻⁶ /℃ (20-130℃) | Operating temperature range: -60℃ ~ 230℃ (continuous)
- Compliant Standards: GB/T 4461-2016, ASTM B388, RoHS 2.0, REACH
- Manufacturer: Huona New Material (Shanghai) Co., Ltd., certified to ISO 9001 and IATF 16949
Key Core Advantages
High-Sensitivity Thermostatic Response
- Strong Curvature Sensitivity: Curvature temperature coefficient of ~11.0×10⁻⁶ /℃, ideal for applications requiring rapid, precise actuation
- Reversible Deformation: Fully reversible thermal cycling without permanent deformation or fatigue
Robust Mechanical Properties
- High Strength & Formability: Tensile strength ≥560MPa, elongation ≥16%
- Good Fatigue Resistance: Withstands repeated thermal cycling without cracking
Uniform Quality & Consistency
- Precision Rolling: Tight thickness and width tolerances ensure uniform thermal response
- Strong Interlayer Bonding: Metallurgical bonding prevents delamination
Versatile Processability
- Easy Forming: Compatible with stamping, bending, punching, and riveting
- Weldability: Suitable for resistance welding and soldering
Reliable Environmental Resistance
- Corrosion Resistance: Good resistance to atmospheric corrosion and mild chemicals
- Wide Temperature Stability: Consistent performance across -60℃ to 230℃
Technical Specifications
| Attribute | Value (Typical) |
|---|---|
| Alloy Grade | 5J16110 (Alloy 16110 / Type 16110) |
| Thickness | 0.25mm (±0.008mm) |
| Width | 30mm (±0.15mm) |
| Form | Coil (50m standard) / Cut-to-size sheets |
| Curvature Temperature Coefficient | ~11.0×10⁻⁶ /℃ (20-130℃) |
| Operating Temperature | -60℃ ~ 230℃ (continuous) |
| Tensile Strength | ≥560MPa |
| Elongation | ≥16% |
| Density | ~8.1g/cm³ |
| Surface Finish | Bright/light oxide (standard) |
Product Specifications
| Item | Specification |
|---|---|
| Supply Form | Coil (50m/roll); cut-to-size sheets available |
| Thickness Range | 0.08-3.0mm |
| Width Range | 10-350mm |
| Surface Treatment | Bright finish / pickled (optional) |
| Packaging | Anti-corrosion paper + wooden reel |
| MOQ | 50kg, small batches available for R&D |
| Customization | Thickness/width/length; surface finish; thermal performance grade |
| Processability | Stamping, bending, punching, riveting, resistance welding, soldering |
Typical Application Scenarios
- High-Sensitivity Thermostats: Industrial temperature regulators, precision ovens, and medical equipment temperature control
- Medium-Load Overheat Protection: Motor protectors, circuit breakers, and power distribution equipment
- Thermal Actuators: Industrial valve actuators, fire safety devices, and automotive thermostat components
- Measuring Instruments: Precision bimetallic thermometers and temperature indicators
- Industrial Equipment: Boiler control, heat treatment furnaces, and HVAC system actuators
