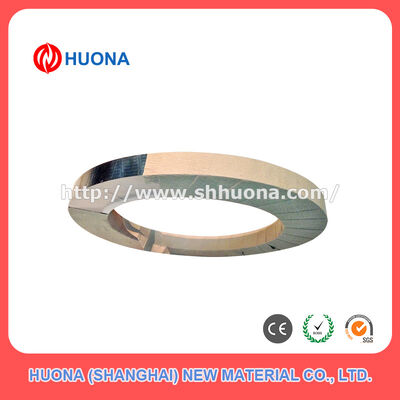

High Sensitivity 0.2*80mm 5J1480 Thermostatic Bimetallic Strip Durable for Precision Temperature Sensing Applications
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | 5J1480 |
| Minimum Order Quantity | 10KG |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Product Details
| Alloy Grade | 5J1480 | Thickness | 0.20mm |
|---|---|---|---|
| Width | 80mm | Form | Coil |
| Curvature Temperature Coefficient | ~8.0×10⁻⁶ /℃ (20–130℃) | Operating Temperature | -70℃ ~ 200℃ (continuous) |
| Tensile Strength | ≥520MPa | Density | ~8.0g/cm³ |
| Highlight | High sensitivity thermostatic bimetallic strip,0.2x80mm precision temperature sensor,Durable thermal bimetal strip |
||
Product Description
5J1480 Thermostatic Bimetallic Strip (Huona)
5J1480 thermostatic bimetallic strip from Huona New Material is a precision composite material formed by metallurgically bonding two metal layers with distinct thermal expansion coefficients. It produces predictable, reversible bending deformation in response to temperature changes, making it ideal for sensitive thermal actuation, precise temperature control, and low-temperature overheat protection devices.
Standard Designations & Core Specifications
- Alloy Grade: 5J1480 (Thermostatic Bimetallic Alloy)
- Typical Dimensions: Thickness: 0.20mm (customizable: 0.08-3.0mm), Width: 80mm (customizable: 15-350mm)
- Form: Coil (standard: 50m/roll; cut-to-size sheets available)
- Tolerance: Thickness ±0.008mm, Width ±0.15mm
- Core Material Composition: High-expansion layer: Fe-Ni-Mn alloy, Low-expansion layer: Fe-Ni alloy (Invar-type)
- Key Thermal Performance: Curvature temperature coefficient (α): ~8.0×10⁻⁶ /℃ (20-130℃), Operating temperature range: -70℃ ~ 200℃ (continuous)
- Compliant Standards: GB/T 4461-2016, ASTM B388, RoHS 2.0, REACH
- Manufacturer: Huona New Material (Shanghai) Co., Ltd., certified to ISO 9001 and IATF 16949
Key Core Advantages
Sensitive & Stable Thermostatic Response
- Moderate Curvature Sensitivity: Curvature temperature coefficient of ~8.0×10⁻⁶ /℃, ideal for applications requiring balanced sensitivity and mechanical strength
- Reversible Deformation: Fully reversible thermal cycling without permanent deformation or fatigue, ensuring long-term reliability
Excellent Mechanical Properties
- High Strength & Formability: Tensile strength ≥520MPa, elongation ≥18%, enabling complex stamping, bending, and punching operations
- Good Fatigue Resistance: Withstands repeated thermal cycling without cracking or performance degradation, suitable for dynamic applications
Uniform Quality & Consistency
- Precision Rolling: Tight thickness and width tolerances ensure uniform thermal response across the entire strip
- Strong Interlayer Bonding: Metallurgical bonding between high- and low-expansion layers prevents delamination under thermal and mechanical stress
Versatile Processability
- Easy Forming: Compatible with stamping, bending, punching, and riveting to produce complex bimetallic elements
- Weldability: Suitable for resistance welding and soldering, enabling seamless integration into electrical and mechanical components
Reliable Environmental Resistance
- Corrosion Resistance: Good resistance to atmospheric corrosion and mild chemicals, suitable for industrial and consumer applications
- Wide Temperature Stability: Maintains consistent thermostatic performance across -70℃ to 200℃, suitable for low-temperature environments
Technical Specifications
| Attribute | Value (Typical) |
|---|---|
| Alloy Grade | 5J1480 |
| Thickness | 0.20mm (±0.008mm) |
| Width | 80mm (±0.15mm) |
| Form | Coil (50m standard) / Cut-to-size sheets |
| Curvature Temperature Coefficient | ~8.0×10⁻⁶ /℃ (20-130℃) |
| Operating Temperature | -70℃ ~ 200℃ (continuous) |
| Tensile Strength | ≥520MPa |
| Elongation | ≥18% |
| Density | ~8.0g/cm³ |
| Surface Finish | Bright/light oxide (standard) |
Product Specifications
| Item | Specification |
|---|---|
| Supply Form | Coil (50m/roll); cut-to-size sheets available |
| Thickness Range | 0.08-3.0mm |
| Width Range | 15-350mm |
| Surface Treatment | Bright finish / pickled (optional) |
| Packaging | Anti-corrosion paper + wooden reel (prevents oxidation and damage) |
| MOQ | 50kg, small batches available for R&D |
| Customization | Thickness/width/length; surface finish; thermal performance grade |
| Processability | Stamping, bending, punching, riveting, resistance welding, soldering |
Typical Application Scenarios
- Precision Thermostats: Household appliances (refrigerators, air conditioners), automotive climate control, and industrial temperature regulators
- Low-Temperature Overheat Protection: Circuit breakers, thermal fuses, and electronic component protection
- Thermal Actuators: Refrigeration valve actuators, fire safety devices, and automotive thermostat components
- Measuring Instruments: Bimetallic thermometers and low-temperature temperature indicators
- Consumer Electronics: Battery management systems, power adapters, and small appliance safety controls
