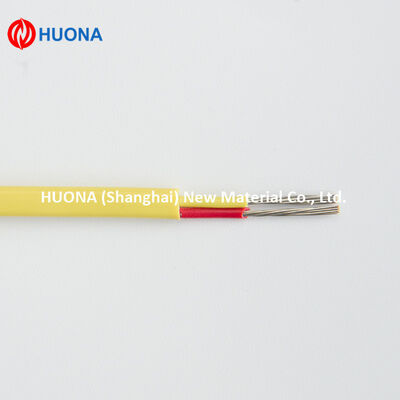

2*7*0.3mm Durable Type K Thermocouple Extension Cable Conductor PVC Insulation and Outer Sheath ANSI Color Code for Reliable Temperature Monitoring
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type K |
| Minimum Order Quantity | 200m |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Product Details
| Thermocouple Type | Type K (KX Extension Grade) | Conductor Structure | 2-core Multi-strand |
|---|---|---|---|
| Conductor Material | Positive: Chromel (Ni90Cr10); Negative: Alumel | Insulation Material | High-temperature PVC (105℃ Rating) |
| Insulation Color (ANSI) | Yellow (positive) / Red (negative) | Outer Sheath Material | Yellow PVC (oil-resistant, Flame-retardant) |
| Operating Temperature | Operating Temperature | Insulation Resistance | ≥100 MΩ·km (25℃) |
| Highlight | Type K thermocouple extension cable,Durable PVC insulation thermocouple wire,ANSI color code temperature monitoring cable |
||
Product Description
Type K Thermocouple Extension Cable
2×7×0.3mm Durable Type K Thermocouple Extension Cable with PVC Insulation and Outer Sheath, ANSI Color Code for Reliable Temperature Monitoring
Product Overview
Type K thermocouple extension cable from Huona New Material is engineered for reliable temperature signal transmission between Type K thermocouple sensors and control instruments. Featuring multi-strand conductors, PVC insulation and sheath, and ANSI-standard color coding, it delivers stable thermoelectric performance and excellent flexibility across -40℃ to 105℃ operating range. Ideal for industrial automation, process monitoring, and temperature measurement systems.
Standard Designations & Core Specifications
- Model: KX (Extension Grade for Type K Thermocouples)
- Thermocouple Type: Type K (Chromel-Alumel)
- Conductor Structure: 2-core multi-strand for enhanced flexibility
- Conductor Material: Positive (KP): Chromel (Ni 90% / Cr 10%); Negative (KN): Alumel (Ni 95% / Al 2% / Mn 2% / Si 1%)
- Insulation Material: High-temperature PVC (rated to 105℃)
- Color Coding: ANSI standard - Red (KN) / Yellow (KP)
- Outer Sheath: Yellow PVC (oil-resistant, flame-retardant, VW-1 rated)
- Compliant Standards: IEC 60584-2, ASTM E230, ANSI MC96.1, GB/T 4989, RoHS 2.0
- Manufacturer: Huona New Material (Shanghai) Co., Ltd., ISO 9001 and IATF 16949 certified
Key Advantages
Flexible Multi-Strand Design
- Fine stranded conductors provide excellent flexibility and fatigue resistance
- High-purity alloy conductors ensure stable signal transmission over medium distances
ANSI-Standard Polarity Identification
- Color-coded insulation and sheath ensure clear polarity identification
- Eliminates installation errors and simplifies maintenance procedures
Reliable Insulation & Durability
- High-temperature PVC insulation withstands continuous operation up to 105℃
- Robust PVC sheath provides oil resistance, abrasion resistance, and flame retardancy (VW-1 rated)
Stable Thermoelectric Performance
- Extension grade accuracy matches Type K thermocouple characteristics
- Optimized conductor design reduces electrical resistance and signal loss
Universal Compatibility
- Easy routing in cable trays, conduits, and tight spaces
- Compatible with all Type K thermocouple sensors and standard temperature controllers
Technical Specifications
| Attribute | Value |
|---|---|
| Thermocouple Type | Type K (KX Extension Grade) |
| Conductor Structure | 2-core multi-strand |
| Conductor Material | Positive: Chromel (Ni90Cr10); Negative: Alumel |
| Insulation Material | High-temperature PVC (105℃ rating) |
| Insulation Color (ANSI) | Yellow (positive) / Red (negative) |
| Outer Sheath Material | Yellow PVC (oil-resistant, flame-retardant) |
| Operating Temperature | -40℃ ~ 105℃ (continuous) |
| Insulation Resistance | ≥100 MΩ*km (25℃) |
| Flame Retardancy | VW-1 (UL standard) |
Product Specifications
| Item | Specification |
|---|---|
| Supply Form | Reel (100m/200m/500m); custom cut-length available |
| Conductor Count | 2-core (standard) |
| Color Coding | ANSI standard: Yellow (positive) / Red (negative) |
| Packaging | Wooden reel + plastic wrapping |
| Customization | Conductor gauge (0.2-1.5mm²); shielding option; outer sheath color; higher temperature ratings |
| Application | Industrial automation, process monitoring, power generation, HVAC systems |
Typical Application Scenarios
- Industrial Automation: Signal transmission between thermocouple sensors and PLC systems in manufacturing lines
- Process Monitoring: Temperature measurement in petrochemical refineries, power plants, and HVAC systems
- Furnace & Oven Control: Temperature signal transmission in industrial furnaces and heat treatment equipment
- Laboratory & Calibration: Precision temperature measurement in research institutes and testing laboratories
- Food & Beverage: Temperature monitoring in ovens, sterilizers, and processing equipment
