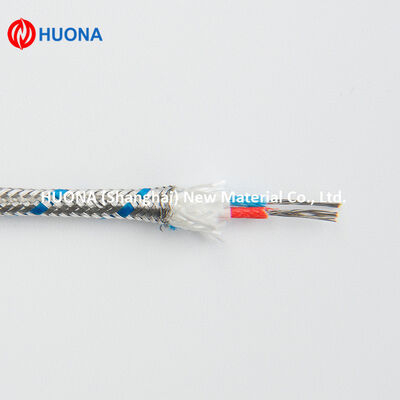

Class 1 Shielded Type T Thermocouple Extension Cable Multi-Strand Fiberglass Insulation
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type T |
| Minimum Order Quantity | 200m |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Product Details
| Thermocouple Type | Type T (TX Extension Grade) | Conductor Structure | 2-core Multi-strand |
|---|---|---|---|
| Conductor Material | Positive: Cu; Negative: Constantan (Cu55Ni45) | Insulation Material | Fiberglass/PTFE (200–260℃ Rating) |
| Insulation Color | Red (positive) / Blue (negative) | Shielding | Tinned Copper Braid (≥85% Coverage) |
| Outer Sheath | Tinned Copper Braid (metal Jacket) | Operating Temperature | -60℃ ~ 260℃ (continuous) |
| Highlight | Class 1 shielded thermocouple cable,Type T thermocouple extension cable,Multi-strand fiberglass thermocouple wire |
||
Product Description
Type T Thermocouple Extension Cable Overview
This shielded Type T thermocouple extension cable from Huona New Material delivers reliable temperature signal transmission in industrial environments with high electromagnetic interference. Featuring multi-strand Cu-Constantan conductors, high-temperature insulation, and tinned copper braid shielding, it provides stable thermoelectric performance and excellent anti-interference capability across a wide temperature range.
Standard Designations & Core Specifications
- Model: TX (Extension Grade for Type T Thermocouples)
- Thermocouple Type: Type T (Cu-Constantan)
- Conductor Structure: 2-core multi-strand for enhanced flexibility
- Conductor Material: Positive (TP): Pure copper (Cu) / Negative (TN): Constantan (Cu 55% / Ni 45%)
- Insulation Material: High-temperature fiberglass or PTFE (rated to 200-260℃)
- Color Coding: Red (positive) / Blue (negative)
- Shielding: Tinned copper braid (≥85% coverage) for EMI/RFI protection
- Outer Sheath: Tinned copper braid for mechanical strength
- Compliant Standards: IEC 60584-2, ASTM E230, ANSI MC96.1, GB/T 4989, RoHS 2.0
Key Performance Advantages
Superior Anti-Interference Performance
Dual shielding design with tinned copper braid shield and metal braided outer jacket provides comprehensive protection against electromagnetic and radio frequency interference. Twisted pair conductor structure minimizes crosstalk for enhanced signal integrity.
High-Temperature Resistance & Durability
Fiberglass/PTFE insulation withstands continuous operating temperatures up to 200-260℃, while the robust metal jacket offers excellent mechanical strength and abrasion resistance.
Clear Polarity Identification
Red (positive) and blue (negative) color-coded insulation ensures easy and error-free polarity identification during installation and maintenance.
Flexible Installation & Compatibility
Multi-strand conductors provide excellent flexibility for routing in tight spaces, with universal compatibility for Type T thermocouple sensors and standard temperature control systems.
Stable Thermoelectric Performance
Meets Class 1 accuracy standards with minimal signal drift and low electrical resistance for accurate temperature measurement over long transmission distances.
Technical Specifications
| Attribute | Value |
|---|---|
| Thermocouple Type | Type T (TX Extension Grade) |
| Conductor Structure | 2-core multi-strand |
| Conductor Material | Positive: Cu; Negative: Constantan (Cu55Ni45) |
| Insulation Material | Fiberglass/PTFE (200-260℃ rating) |
| Insulation Color | Red (positive) / Blue (negative) |
| Shielding | Tinned copper braid (≥85% coverage) |
| Outer Sheath | Tinned copper braid (metal jacket) |
| Operating Temperature | -60℃ ~ 260℃ (continuous) |
| Insulation Resistance | ≥100 MΩ*km (25℃) |
| Shield Coverage | ≥85% |
| Flame Retardancy | UL94-V0 |
Product Specifications
| Item | Specification |
|---|---|
| Supply Form | Reel (100m/200m/500m); custom cut-length available |
| Conductor Count | 2-core (standard) |
| Color Coding | Red (positive) / Blue (negative) |
| Packaging | Wooden reel + plastic wrapping |
| Customization | Conductor gauge (0.2-1.5mm²); insulation/sheath material; operating temperature rating |
| Application | Industrial automation, process monitoring, laboratory testing, high-temperature furnaces, cryogenic research |
Typical Application Scenarios
- Industrial Automation: Signal transmission between thermocouple sensors and PLC systems in manufacturing lines
- Process Monitoring: Temperature measurement in petrochemical refineries, power plants, and HVAC systems
- High-Temperature Furnaces: Temperature monitoring in industrial furnaces, ovens, and heat treatment equipment
- Laboratory & R&D: Precision temperature measurement in cryogenic systems and material testing laboratories
- Aerospace & Defense: Temperature monitoring in aerospace testing and military equipment
