High Precision Type T Miniature Thermocouple Connector with Fine Wire for Industrial Temperature Sensing
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type T |
| Minimum Order Quantity | 200m |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Product Details
| Thermocouple Type | Type T | Connector Type | Miniature Male Flat Pin |
|---|---|---|---|
| Housing Material | Blue Thermoplastic (220℃ Short-term Rating) | Pin Material | Positive: Cu; Negative: Constantan (Cu55Ni45) |
| Fine Wire Diameter | 0.08–0.2mm (customizable) | Fine Wire Insulation | Fiberglass/PTFE (200–260℃ Rating) |
| Operating Temperature | -40℃ ~ 220℃ (connector); -200℃ ~ 260℃ (wire) | Contact Resistance | ≤0.005Ω |
| Highlight | Type T thermocouple connector with fine wire,Miniature thermocouple connector for industrial sensing,High precision thermocouple connector with warranty |
||
Product Description

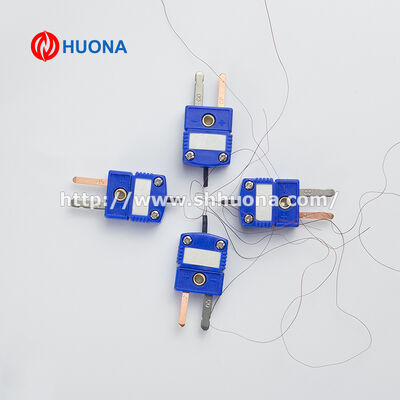

High Precision Type T Miniature Thermocouple Connector with Fine Wire
Type T miniature thermocouple connector (blue housing) from Huona New Material is a compact, high-precision connector designed for reliable connection between Type T thermocouple fine wires and temperature measurement instruments. Featuring color-coded copper/constantan pins (ANSI standard), a robust plastic housing, and integrated fine thermocouple wires, it ensures stable thermoelectric performance and secure signal transmission in precision temperature measurement applications.
Standard Designations & Core Specifications
- Model: Type T Miniature Thermocouple Connector (Male, Flat Pin)
- Thermocouple Type: Type T (Cu-Constantan)
- Connector Housing: Blue thermoplastic (heat-resistant, flame-retardant, rated to 220℃ short-term)
- Pin Material & Polarity:
- Positive (+): Pure copper (Cu, reddish-brown pin)
- Negative (-): Constantan (Cu-Ni alloy, gray pin)
- Pin Design: Flat blade type (ANSI standard), with polarity marking (+/-) on housing
- Fine Wire Specification:
- Conductor Material: Type T thermocouple grade (Cu/Constantan)
- Conductor Diameter: Ultra-fine (typically 0.08-0.2mm, customizable)
- Insulation: High-temperature fiberglass or PTFE (rated to 200-260℃)
- Mechanical Fastening: Two stainless steel screws for secure wire clamping
- Compliant Standards: IEC 60584-2, ASTM E230, ANSI MC96.1, GB/T 4989, RoHS 2.0
- Manufacturer: Huona New Material (Shanghai) Co., Ltd., certified to ISO 9001 and IATF 16949
Key Core Advantages
Precision Polarity Identification
- Color-Coded Pins & Housing: ANSI-standard blue housing + copper/constantan pins ensure clear polarity recognition, eliminating connection errors
- Marked Polarity: Housing is clearly labeled with "+" and "-" to avoid reverse wiring during installation
Secure & Stable Connection
- Screw-Clamp Design: Two stainless steel screws provide reliable clamping of fine thermocouple wires, preventing loosening due to vibration or thermal expansion
- Low Contact Resistance: High-purity pin material ensures minimal contact resistance, maintaining accurate thermoelectric signal transmission
Compact & Durable Design
- Miniature Size: Compact form factor saves space, ideal for high-density measurement setups and confined environments
- Robust Housing: Blue thermoplastic housing resists high temperatures, chemicals, and mechanical impact, ensuring long service life in industrial and laboratory conditions
Compatibility with Fine Wires
- Ultra-Fine Wire Compatibility: Designed specifically for thin thermocouple wires (0.08-0.2mm), making it ideal for micro-temperature measurement and sensitive applications
- High-Temperature Insulation: Integrated fine wires are insulated with high-temperature materials, suitable for continuous operation up to 200-260℃
Universal Compatibility
- Standardized Interface: Compatible with all standard Type T miniature thermocouple sockets and temperature controllers, data loggers, and PLC systems
- Wide Application Range: Suitable for precision measurement in laboratories, aerospace, medical devices, and industrial process monitoring
Technical Specifications
| Attribute | Value |
|---|---|
| Thermocouple Type | Type T (Cu-Constantan) |
| Connector Type | Miniature male flat pin |
| Housing Material | Blue thermoplastic (220℃ short-term rating) |
| Pin Material | Positive: Cu; Negative: Constantan (Cu55Ni45) |
| Fine Wire Diameter | 0.08-0.2mm (customizable) |
| Fine Wire Insulation | Fiberglass/PTFE (200-260℃ rating) |
| Operating Temperature | -40℃ ~ 220℃ (connector); -200℃ ~ 260℃ (wire) |
| Contact Resistance | ≤0.005Ω |
| Insulation Resistance | ≥100 MΩ (25℃) |
| Flame Retardancy | UL94-V0 |
Product Specifications
| Item | Specification |
|---|---|
| Supply Form | Individual connector with pre-attached fine wire (custom length available) |
| Connector Gender | Male (standard) |
| Color Coding | Blue housing; Cu (red-brown) positive pin; Constantan (gray) negative pin |
| Packaging | Anti-static bag + box (prevents damage during shipping) |
| Customization | Fine wire diameter/length; insulation material; connector color (other types available: K/J/E/S/R/B) |
| Application | Laboratory research, aerospace testing, medical devices, precision industrial monitoring, micro-temperature measurement |
Typical Application Scenarios
- Laboratory & R&D: Precision temperature measurement in material testing, thermal analysis, and scientific research
- Aerospace & Defense: High-precision temperature monitoring in aircraft, satellites, and military equipment
- Medical Devices: Temperature sensing in medical instruments and diagnostic equipment
- Industrial Automation: Micro-temperature measurement in semiconductor manufacturing and electronic testing
- Cryogenic Research: Low-temperature signal connection in cryogenic systems and refrigeration equipment
