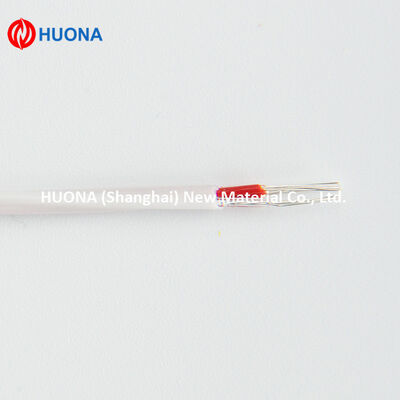

Stable Performance Type SC Thermocouple Compensating Cable Multi-Strand 2×7×0.2mm Copper-Constantan DIN Color Code PVC Insulation Sheath for Industrial Automation
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type SC |
| Minimum Order Quantity | 200m |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Product Details
| Thermocouple Type | SC | Conductor Structure | 2x7x0.2mm |
|---|---|---|---|
| Conductor Material | Positive: Cu; Negative: Constantan | Insulation Material | High-temperature PVC (105℃ Rating) |
| Insulation Color (DIN) | Green (positive) / White (negative) | Outer Sheath Material | White PVC (oil-resistant, Flame-retardant) |
| Operating Temperature | -40℃ ~ 105℃ (continuous) | Insulation Resistance | ≥100 MΩ·km (25℃) |
| Highlight | Stable performance thermocouple compensating cable,Multi-strand copper-constantan thermocouple cable,PVC insulation thermocouple cable DIN color |
||
Product Description
Type SC Thermocouple Compensating Cable
Multi-Strand 2×7×0.2mm Copper-Constantan with DIN Color Code and PVC Insulation Sheath for Industrial Automation
Type SC thermocouple compensating cable from Huona New Material is engineered for reliable temperature signal transmission between Type S/R thermocouple sensors and control instruments. Featuring multi-strand conductors (2×7×0.2mm, equivalent to Cu-Constantan 0.6mm), PVC insulation and sheath, and DIN-standard color coding, it delivers stable thermoelectric performance and excellent flexibility across -40℃ to 105℃. Ideal for industrial automation, process monitoring, and temperature measurement systems.
Standard Designations & Core Specifications
- Model: SC (Compensating Grade for Type S/R Thermocouples)
- Conductor Structure: 2-core multi-strand (7 strands of 0.2mm per core, total cross-section equivalent to 0.6mm)
- Conductor Material: Positive (SC+): Cu | Negative (SC-): Constantan
- Insulation Material: High-temperature PVC (rated to 105℃), color-coded per DIN standard: Green (positive) / White (negative)
- Outer Sheath Material: White PVC (oil-resistant, flame-retardant, VW-1 rated)
- Compliant Standards: IEC 60584-2, ASTM E230, DIN 43710, GB/T 4989, RoHS 2.0
- Manufacturer: Huona New Material (Shanghai) Co., Ltd., certified to ISO 9001 and IATF 16949
Key Performance Advantages
Flexible Multi-Strand Design
- 7×0.2mm Stranded Conductors: Excellent flexibility and resistance to fatigue for dynamic installations
- Equivalent 0.6mm Cross-Section: Low electrical resistance and consistent signal transmission
DIN-Standard Polarity Identification
- Color-Coded Insulation: DIN-standard green (positive) / white (negative) ensures clear polarity identification
Reliable Insulation & Durability
- High-Temperature PVC Insulation: Withstands continuous operating temperatures up to 105℃
- Robust PVC Sheath: Oil-resistant, abrasion-resistant, and flame-retardant (VW-1 rated)
Stable Thermoelectric Performance
- Compensating Grade Accuracy: Matches thermoelectric characteristics of Type S/R thermocouples
- Low Resistance: High-purity Cu-Constantan conductors ensure stable signal transmission
Universal Compatibility
- Flexible Installation: Easy routing in cable trays, conduits, and tight spaces
- Wide Compatibility: Works with Type S/R thermocouple sensors and standard temperature controllers
Technical Specifications
| Attribute | Value |
|---|---|
| Thermocouple Type | SC (Compensating Grade for S/R) |
| Conductor Structure | 2-core multi-strand (7×0.2mm per core) |
| Conductor Cross-Section | Equivalent to 0.6mm |
| Conductor Material | Positive: Cu; Negative: Constantan |
| Insulation Material | High-temperature PVC (105℃ rating) |
| Insulation Color (DIN) | Green (positive) / White (negative) |
| Outer Sheath Material | White PVC (oil-resistant, flame-retardant) |
| Operating Temperature | -40℃ ~ 105℃ (continuous) |
| Insulation Resistance | ≥100 MΩ*km (25℃) |
| Flame Retardancy | VW-1 (UL standard) |
Product Specifications
| Item | Specification |
|---|---|
| Supply Form | Reel (100m/200m/500m); custom cut-length available |
| Conductor Count | 2-core (standard) |
| Color Coding | DIN standard: Green (positive) / White (negative) |
| Packaging | Wooden reel + plastic wrapping |
| Customization | Shielding option; outer sheath color; operating temperature rating |
| Application | Industrial automation, process monitoring, power generation, laboratory calibration |
Typical Application Scenarios
Industrial Automation: Signal transmission between thermocouple sensors and PLC systems
Process Monitoring: Temperature measurement in petrochemical refineries and power plants
Furnace & Oven Control: Temperature signal transmission in industrial heat treatment equipment
Laboratory & Calibration: Precision temperature measurement in research institutes
Aerospace & Defense: Temperature monitoring in aerospace testing and military equipment
