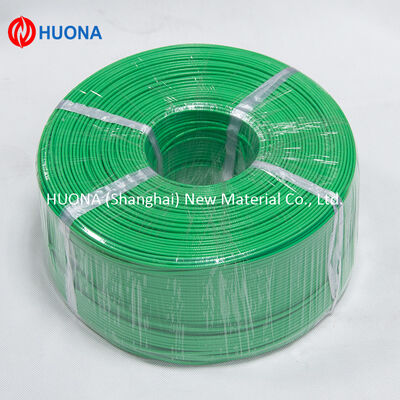

Type SC Thermocouple Compensating Cable 22AWG Solid Cu-Constantan 0.64mm ANSI Color Code
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type SC |
| Minimum Order Quantity | 200m |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Product Details
| Thermocouple Type | SC (Compensating Grade For S/R) | Conductor Structure | 2-core Solid |
|---|---|---|---|
| Conductor Diameter | 0.64mm (22AWG) | Conductor Material | Positive: Cu; Negative: Constantan0.6 |
| Insulation Material | High-temperature PVC (105℃ Rating) | Insulation Color (ANSI) | Black (positive) / Red (negative) |
| Shielding (Optional) | Tinned Copper Braid (≥85% Coverage) | Outer Sheath Material | PVC (oil-resistant, Flame-retardant) |
| Highlight | Type SC thermocouple cable 22AWG solid,Cu-Constantan thermocouple cable 0.64mm,ANSI color code thermocouple cable |
||
Product Description
Type SC Thermocouple Compensating Cable Overview
Type SC thermocouple compensating cable (22AWG solid conductor) from Huona New Material is engineered for precise temperature signal transmission between Type S/R thermocouple sensors and control instruments. Featuring solid copper-constantan conductors (0.6mm diameter, 22AWG), high-temperature insulation, and ANSI-standard color coding, this cable delivers stable thermoelectric performance and reliable signal integrity across -20℃ to 105℃ operating range.
Standard Designations & Core Specifications
- Model: SC (Compensating Grade for Type S/R Thermocouples)
- Conductor Structure: 2-core solid (single solid wire per core)
- Conductor Diameter: 0.6mm (equivalent to 22AWG)
- Conductor Material: Positive (SC+): Pure copper (Cu); Negative (SC-): Constantan (Cu 55% / Ni 45%)
- Insulation Material: High-temperature PVC (rated to 105℃), color-coded per ANSI standard: Black (positive) / Red (negative)
- Shielding (Optional): Tinned copper braid (coverage ≥85%) for EMI/RFI protection
- Outer Sheath Material: PVC (oil-resistant, flame-retardant, VW-1 rated), color: Black (standard) or custom
- Compliant Standards: IEC 60584-2, ASTM E230, ANSI MC96.1, GB/T 4989, RoHS 2.0
- Manufacturer: Huona New Material (Shanghai) Co., Ltd., certified to ISO 9001 and IATF 16949
Key Performance Advantages
Stable Thermoelectric Performance
Compensating grade accuracy matches Type S/R thermocouple characteristics, ensuring minimal signal drift and precise temperature measurement. Solid 0.6mm copper/constantan conductors provide low electrical resistance and consistent signal transmission over long distances.
ANSI-Standard Polarity Identification
Color-coded insulation with ANSI-standard black (positive) / red (negative) ensures clear polarity identification, eliminating installation errors and simplifying maintenance procedures.
Reliable Insulation & Durability
High-temperature PVC insulation withstands continuous operating temperatures up to 105℃, preventing degradation. Flame-retardant PVC outer sheath provides oil resistance, abrasion protection, and VW-1 rated flame retardancy.
Optional Anti-Interference Shielding
Tinned copper braid shielding (≥85% coverage) effectively blocks electromagnetic and radio frequency interference, ensuring stable signal transmission in high-noise industrial environments.
Flexible Installation & Compatibility
Solid conductor design balances rigidity and flexibility for easy installation in cable trays, conduits, and tight spaces. Universal compatibility with all Type S/R thermocouple sensors and standard temperature control systems.
Technical Specifications
| Attribute | Value |
|---|---|
| Thermocouple Type | SC (Compensating Grade for S/R) |
| Conductor Structure | 2-core solid |
| Conductor Diameter | 0.64mm (22AWG) |
| Conductor Material | Positive: Cu; Negative: Constantan |
| Insulation Material | High-temperature PVC (105℃ rating) |
| Insulation Color (ANSI) | Black (positive) / Red (negative) |
| Shielding (Optional) | Tinned copper braid (≥85% coverage) |
| Outer Sheath Material | PVC (oil-resistant, flame-retardant) |
| Operating Temperature | -20℃ ~ 105℃ (continuous) |
| Insulation Resistance | ≥100 MΩ*km (25℃) |
| Flame Retardancy | VW-1 (UL standard) |
Product Specifications
| Item | Specification |
|---|---|
| Supply Form | Reel (100m/200m/500m); custom cut-length available |
| Conductor Count | 2-core (standard) |
| Color Coding | ANSI standard: Black (positive) / Red (negative) |
| Packaging | Wooden reel + plastic wrapping (prevents damage during shipping) |
| Customization | Shielding option; outer sheath color; operating temperature rating (FEP/PFA optional for higher temperatures) |
| Application | Industrial furnaces, petrochemical processing, power generation, laboratory calibration, temperature measurement systems |
Typical Application Scenarios
- Industrial Furnaces: Temperature signal transmission in high-temperature industrial furnaces and heat treatment equipment
- Petrochemical & Refining: Process temperature monitoring in reactors, pipelines, and storage tanks
- Power Generation: Boiler and turbine temperature measurement in power plants
- Laboratory & Calibration: Precision temperature measurement and calibration in research institutes and testing laboratories
- Aerospace & Defense: Temperature monitoring in aerospace testing and military equipment
