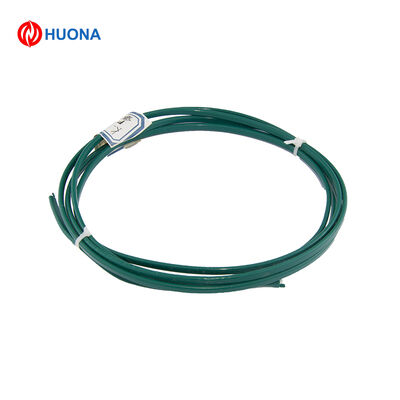

Huona Hot Sale Type K Extension Wire PVC Insulated 2×0.5mm Green Thermocouple Wire
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type K |
| Minimum Order Quantity | 200m |
| Price | Negotiable |
| Packaging Details | Carton/Wooden Case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Thermocouple Type | Type K (Chromel/Alumel) | Conductor Diameter | 2×0.5mm (±0.02mm) |
|---|---|---|---|
| Insulation Material | PVC (green, 105℃ Rating) | Operating Temperature Range | -40℃ To 105℃ (continuous); -40℃ To 120℃ (short-term ≤30min) |
| Accuracy Class | Class 2 | Thermoelectric Potential Error | ±2.5℃ (0–333℃); ±0.75% T (333–105℃) |
| Insulation Resistance (25℃) | ≥100 MΩ·km | Bending Radius | ≥5× Cable Diameter (static) |
| Highlight | Type K thermocouple wire PVC insulated,green thermocouple extension wire,0.5mm thermocouple cable with warranty |
||
Product Description
Type K Thermocouple Extension Wire
PVC Insulated, 2×0.5mm Green Thermocouple Wire for reliable temperature signal transmission in industrial and laboratory applications.
Product Overview
Type K thermocouple extension wire from Huona New Material is a flexible, general-purpose signal transmission cable featuring Type K (Chromel/Alumel) conductors and green PVC insulation. Designed for low-to-medium temperature environments, it delivers stable thermoelectric performance up to 105℃ continuous / 120℃ short-term. Ideal for industrial control systems, HVAC, laboratory testing, and general-purpose temperature sensing.
Standard Designations & Core Material
- Thermocouple Type: Type K (Chromel/Alumel; IEC 60584-2 Class 2)
- Conductor: 2×0.5mm diameter (tolerance: ±0.02mm)
- Insulation: PVC (green, IEC color for Type K)
- Chemical Composition: Positive (KP): Ni 89%/Cr 10%/Fe 1%; Negative (KN): Ni 95%/Al 2%/Mn 2%/Si 1%
- Insulation Material: Polyvinyl Chloride (PVC, 105℃ rating)
- Compliant Standards: IEC 60584-3, GB/T 4989-2013, ASTM E230, RoHS 2.0
- Manufacturer: Huona New Material, certified to ISO 9001 and IATF 16949
Key Advantages
Flexible & Easy Installation
High flexibility with minimum bending radius ≥5× cable diameter, suitable for tight installation spaces. Lightweight design ideal for portable testing equipment and long-distance signal extension.
High flexibility with minimum bending radius ≥5× cable diameter, suitable for tight installation spaces. Lightweight design ideal for portable testing equipment and long-distance signal extension.
Reliable Signal Transmission
Class 2 accuracy with thermoelectric potential error ≤±2.5℃ (0-333℃) / ±0.75% t (333-105℃). Smooth conductor surfaces ensure reliable soldering/crimping to connectors, minimizing signal loss.
Class 2 accuracy with thermoelectric potential error ≤±2.5℃ (0-333℃) / ±0.75% t (333-105℃). Smooth conductor surfaces ensure reliable soldering/crimping to connectors, minimizing signal loss.
Environmental Adaptability
Operates stably at -40℃ to 105℃, suitable for indoor and mild outdoor environments. PVC insulation resists moisture, dust, and mild abrasion, extending service life in general industrial settings.
Operates stably at -40℃ to 105℃, suitable for indoor and mild outdoor environments. PVC insulation resists moisture, dust, and mild abrasion, extending service life in general industrial settings.
Technical Specifications
| Attribute | Value (Typical) |
|---|---|
| Thermocouple Type | Type K (Chromel/Alumel) |
| Conductor Diameter | 2×0.5mm (±0.02mm) |
| Insulation Material | PVC (green, 105℃ rating) |
| Operating Temperature Range | -40℃ to 105℃ (continuous); -40℃ to 120℃ (short-term ≤30min) |
| Accuracy Class | Class 2 |
| Thermoelectric Potential Error | ±2.5℃ (0-333℃); ±0.75% t (333-105℃) |
| Insulation Resistance (25℃) | ≥100 MΩ*km |
| Bending Radius | ≥5× cable diameter (static) |
| Surface Finish | Insulation: smooth green; conductors: bright alloy |
Product Specifications
| Item | Specification |
|---|---|
| Supply Form | Coil (bulk); bulk packaging (10/50/100 coils/carton) |
| Conductor Type | Solid (standard) or stranded (optional) |
| Processability | Supports soldering, crimping, and standard thermocouple connector termination |
| Packaging | PE film + cardboard coil + carton (prevents damage during shipping) |
| MOQ | 200 meters |
| Customization | Conductor diameter (0.3-1.0mm); insulation color (customizable); solid/stranded conductors |
Typical Applications
- Industrial Control Systems: Temperature signal extension between sensors and PLCs/HVAC controllers
- Laboratory & R&D: General-purpose temperature sensing in research equipment and environmental chambers
- Food Processing: Low-to-medium temperature monitoring in food storage and preparation equipment
- Automotive & Electronics: Engine bay and battery temperature signal transmission (mild environment)
