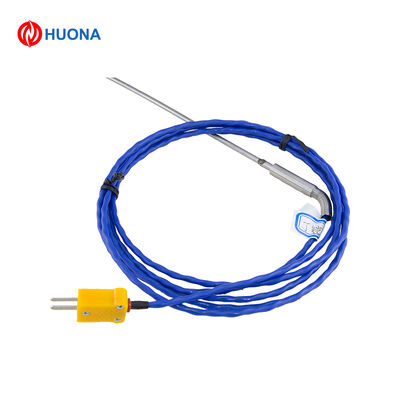

Stainless Steel Sheathed Type J Thermocouple Probe 3×100mm 2m Silicone Lead Mini Plug
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type J |
| Minimum Order Quantity | 100m |
| Price | Negotiable |
| Packaging Details | Carton/Wooden Case |
| Delivery Time | 5-21 days |
| Payment Terms | Western Union,T/T |
| Supply Ability | 500 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Thermocouple Type | Type J | Sheath Material | 304 Stainless Steel |
|---|---|---|---|
| Sheath Dimensions | 3mm (diameter) × 100mm (length); Tolerance ±0.1mm / ±1mm | Conductor Diameter | 2×0.5mm (±0.02mm) |
| Lead Length | 2m (customizable: 1m/3m/5m) | Insulation Material | Silicone (extruded, 200℃ Rating) |
| Connector | Mini Type J Plug | Accuracy Class | Class 1 |
| Highlight | Stainless steel J thermocouple probe,Type J thermocouple with silicone lead,Mini plug thermocouple probe 3x100mm |
||
Product Description
Stainless Steel Sheathed Type J Thermocouple Probe
3×100mm with 2m Silicone Lead and Mini Plug
Industrial-grade temperature sensor featuring Type J thermocouple junction, 304 stainless steel protective sheath, high-temperature silicone insulated lead wire, and standard black mini thermocouple plug. Engineered for durability and accuracy across -40℃ to 750℃ operating range.
Standard Designations & Core Materials
- Thermocouple Type: Type J (Iron/Constantan) compliant with IEC 60584-2 Class 1
- Key Specification: 3mm sheath diameter × 100mm sheath length with 2×0.5mm conductor diameter
- Chemical Composition: Positive (JP): Pure Iron (Fe ≥99.5%); Negative (JN): Constantan (Cu55/Ni45)
- Sheath Material: 304 Stainless Steel for corrosion resistance and high-temperature performance
- Insulation Material: High-temperature silicone with 200℃ rating
- Compliant Standards: IEC 60584-2, GB/T 4989-2013, ASTM E230, RoHS 2.0
- Manufacturer: Huona New Material, certified to ISO 9001 and IATF 16949
Key Performance Advantages
Superior Type J Thermoelectric Performance
- High EMF Output & Stability: Higher thermoelectric potential than Type K at lower temperatures (0-400℃)
- Precision Accuracy: Error ≤±1.0℃ (0-200℃) / ±0.75% t (200-750℃)
- Oxidation Resistance: Reliable performance in reducing environments where Type K may suffer drift
Rugged Stainless Steel Sheath Protection
- Mechanical & Corrosion Resistance: 304 stainless steel resists bending, abrasion, and mild chemical corrosion
- Extended Service Life: 3× longer lifespan compared to unprotected probes
- High-Temperature Integrity: Withstands continuous operation up to 750℃
Flexible Silicone Lead & Plug-and-Play Convenience
- Silicone Insulation: Operates at -60℃ to 200℃ with excellent flexibility and IP65 waterproof/oil resistance
- Standard Mini Plug: Black Type J mini plug ensures universal compatibility with most handheld thermometers
- Easy Setup: Eliminates wiring errors and reduces installation time
Technical Specifications
| Attribute | Value (Typical) |
|---|---|
| Thermocouple Type | Type J (Iron/Constantan) |
| Sheath Material | 304 Stainless Steel |
| Sheath Dimensions | 3mm diameter × 100mm length; tolerance ±0.1mm / ±1mm |
| Conductor Diameter | 2×0.5mm (±0.02mm) |
| Lead Length | 2m (customizable: 1m/3m/5m) |
| Insulation Material | Silicone (extruded, 200℃ rating) |
| Connector | Mini Type J plug |
| Operating Temperature Range | -40℃ to 750℃ (continuous); -40℃ to 800℃ (short-term ≤30min) |
| Accuracy Class | Class 1 (IEC 60584-2) |
| Thermoelectric Potential Error | ±1.0℃ (0-200℃); ±0.75% t (200-750℃) |
| Thermal Response Time (τ₅₀) | ≤2s (in air at 700℃) |
| Insulation Resistance (25℃) | ≥100 MΩ*km |
| Bending Radius | ≥10× cable diameter (static) |
| Protection Level | IP65 (silicone lead); IP67 (sheath junction) |
Product Specifications
| Item | Specification |
|---|---|
| Supply Form | Single probe (pre-assembled with plug); bulk packaging (10/50/100 pcs/carton) |
| Lead Color | Blue (standard); customizable colors |
| Junction Type | Grounded (fast response) |
| Packaging | Anti-static bag + foam insert + carton (prevents damage during shipping) |
| Customization | Sheath diameter (1-6mm); sheath length (50-500mm); lead length (0.5-10m); connector type (standard/micro); grounded/ungrounded junction |
Typical Application Scenarios
- Industrial Temperature Testing: Furnace temperature monitoring, metal heat treatment profiling, and HVAC system testing
- Food Processing: Oven and food temperature measurement in wet environments
- Laboratory & R&D: General-purpose temperature sensing in research equipment and environmental chambers
- Automotive & Electronics: Engine component testing, battery temperature monitoring, and electronic device thermal profiling
