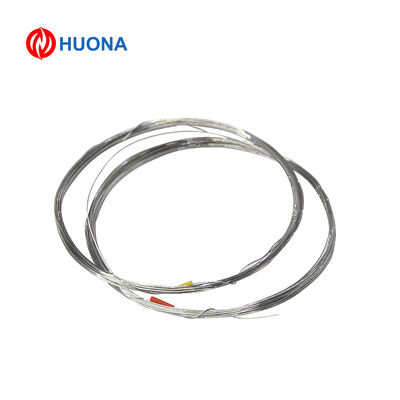

Ultra-High Temp Thermocouple Wire Type R 0.35mm
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type R |
| Minimum Order Quantity | 2m |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 50000m per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Positive (RP): Pt87Rh13; Negative (RN): 99.99% Pure Pt | Diameter | 0.35mm (tolerance: ±0.002mm) |
|---|---|---|---|
| Thermoelectric Potential (1000℃ Vs 0℃) | 10.503mV (complies With IEC 60584-2) | Operating Temperature Range | 0–1300℃ (continuous); 0–1600℃ (short-term ≤30min) |
| Accuracy Class | Class 1 (IEC 60584-2) | Thermal Response Time (τ₅₀) | ≤1.8s (in Air At 800℃) |
| Tensile Strength (Annealed) | 340–390 MPa | Elongation (25℃) | ≥18% |
| Highlight | Type R thermocouple wire 0.35mm,Ultra-high temp thermocouple cable,Thermocouple wire Type R high temperature |
||
Product Description
Ultra-High Temp Thermocouple Wire Type R 0.35mm
R-type noble metal thermocouple wire (0.35mm diameter) from Huona New Material is a high-precision temperature-sensing element composed of Pt13Rh (positive electrode, 13% rhodium-87% platinum alloy) and 99.99% pure platinum (negative electrode).
Standard Designations & Core Material Foundation
- Thermocouple Type: R-type (Pt13Rh/Pt; noble metal thermocouple, compliant with IEC 60584-2 Class 1)
- Key Specification: 0.35mm diameter (tolerance: ±0.002mm)
- Chemical Composition: Positive (RP): Pt87Rh13; Negative (RN): 99.99% pure Pt
- Compliant Standards: IEC 60584-2, GB/T 1672-1997, ASTM E230
- Manufacturer: Huona New Material, certified to ISO 9001 and IATF 16949
Key Performance Advantages
Ultra-High Measurement Precision & Long-Term Stability
Class 1 top-tier accuracy with thermoelectric potential error ≤±1℃ (0-1100℃) and minimal drift of <2μV after 1000 hours at 1200℃.
Optimized 0.35mm Ultra-Fine Diameter Performance
Fast thermal response (τ₅₀ ≤1.8s) with tensile strength ≥340 MPa, ideal for narrow measurement spaces.
Excellent High-Temperature & Environmental Resistance
Operates continuously at 0-1300℃, withstands short-term exposure to 1600℃, with elongation ≥18% for complex sensor packaging.
Technical Specifications
| Conductor Material | Positive (RP): Pt87Rh13; Negative (RN): 99.99% pure Pt |
| Diameter | 0.35mm (tolerance: ±0.002mm) |
| Thermoelectric Potential (1000℃ vs 0℃) | 10.503mV (complies with IEC 60584-2) |
| Operating Temperature Range | 0-1300℃ (continuous); 0-1600℃ (short-term ≤30min) |
| Accuracy Class | Class 1 (IEC 60584-2) |
| Thermal Response Time (τ₅₀) | ≤1.8s (in air at 800℃) |
| Tensile Strength (Annealed) | 340-390 MPa |
| Elongation (25℃) | ≥18% |
Product Specifications
| Supply Form | Spools (50m/100m per spool; spool diameter 80mm) |
| Cutting Precision | Cut-to-length (minimum 100mm, tolerance ±0.1mm) |
| Surface Treatment | Bright annealed; optional gold-plated coating |
| Packaging | Vacuum-sealed aluminum foil bags with desiccants |
| Customization | Pre-welded thermocouple tips; diameter adjustment (0.2-0.5mm) |
Typical Application Scenarios
- Laboratory Calibration: Core element for calibrating industrial high-temperature thermometers
- Aerospace Testing: Temperature monitoring of aircraft engine turbine blades (1200-1300℃)
- Superalloy Heat Treatment: Thermal profiling of nickel-based superalloy component annealing
- Semiconductor Manufacturing: Temperature sensing in wafer epitaxy equipment
