In Stock High Quality ТБ2013/TM-2/108SP Bimetallic Strip for Temp Control
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | ТБ2013/TM-2/108SP |
| Minimum Order Quantity | 30kg |
| Price | Negotiable |
| Packaging Details | Carton/Wooden Case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 500 tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | ТБ2013/TM-2/108SP Bimetallic Strip | Resistivity (25℃) | 113μΩ·cm |
|---|---|---|---|
| Elongation (25℃) | ≥14% | Tensile Strength (Transverse) | ≥460 MPa |
| Operating Temperature Range | -70~200 ℃ | Density | 7.7 G/cm³ |
| Temperature Curvature（20~130℃） | 39×10-6/℃ | Elastic Modulus | ≥113000MPa |
| Highlight | bimetallic strip for temperature control,thermal bimetal strip ТБ2013,TM-2 bimetal strip with warranty |
||
Product Description

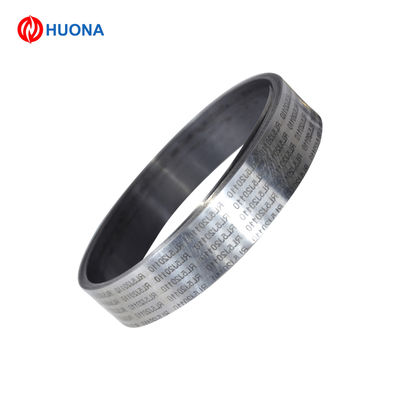

In Stock High Quality ТБ2013/TM-2/108SP Bimetallic Strip for Temp Control
Product Overview
ТБ2013/TM-2/108SP bimetallic strip, a high-performance functional composite developed and manufactured by Huona New Material, is a specialized grade optimized for medium-to-high temperature thermal actuation scenarios. Composed of two dissimilar alloys with precisely controlled thermal expansion coefficients--bonded via Huona's proprietary hot-rolling diffusion technology--this strip integrates three core advantages: stable temperature responsiveness, excellent mechanical fatigue resistance, and broad environmental adaptability.
Standard Designations & Core Composition
- Product Grade: ТБ2013/TM-2/108SP
- Composite Structure: Typically consists of a "high-expansion layer" and a "low-expansion layer"; interfacial bonding strength ≥140 MPa
- Compliant Standards: Adheres to GOST 28561-90 (Russian standard for bimetallic strips) and IEC 60694 for thermal control components; compatible with EU RoHS requirements
- Manufacturer: Huona New Material, certified to ISO 9001 and ISO 14001, with in-house alloy formulation and composite bonding capabilities
Key Advantages (vs. Generic Bimetallic Strips)
- Broad Temperature Adaptability: Operates stably in -50℃ to 250℃ (continuous use), with short-term resistance up to 300℃
- Low Thermal Hysteresis: Hysteresis error ≤3℃ (between heating and cooling actuation points) at 150℃
- Strong Fatigue Resistance: Withstands ≥15,000 thermal cycles (-50℃ to 250℃) without interfacial delamination
- Vibration & Corrosion Resistance: Transverse tensile strength ≥460 MPa ensures structural stability under vibration
- Consistent Dimensional Precision: Available in common thicknesses (0.15mm-0.8mm) and widths (10mm-200mm) with tight tolerances
Technical Specifications
| Attribute | Value (Typical) |
|---|---|
| Thickness Range | 0.15mm - 0.8mm (custom up to 1.2mm) |
| Width Range | 10mm - 200mm (standard widths: 15mm, 20mm, 27mm) |
| Length per Roll | 50m - 300m (cut-to-length available: ≥100mm) |
| Operating Temperature Range | -50℃ to 250℃ (continuous); Short-term: up to 300℃ (≤1 hour) |
| Actuation Temperature Deviation | ±2℃ (at rated actuation point, 80℃-200℃) |
| Tensile Strength (Transverse) | ≥460 MPa |
Product Specifications
| Item | Specification |
|---|---|
| Surface Finish | Mill finish (oxide-free) or zinc-plated/nickel-plated |
| Flatness | ≤0.1mm/m |
| Machinability | Compatible with CNC stamping, laser cutting, and bending |
| Bonding Quality | 100% interfacial bonding (no voids >0.1mm²) |
Typical Applications
- Industrial Temperature Control: Thermostats for industrial ovens, boilers, and HVAC systems
- Overheat Protection: Thermal circuit breakers for electric motors and power transformers
- Automotive & Marine: Temperature sensors and protectors for engine compartments
- Precision Instruments: Temperature-compensating elements for pressure gauges
- Household & Commercial Appliances: Overheat protectors for electric water heaters
Huona New Material implements strict quality control for ТБ2013/TM-2/108SP bimetallic strips. Free samples and detailed performance reports are available upon request.
