Huona CuNi44/NC050/6J40 Strip Superior Corrosion Resistance
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO 9001 |
| Model Number | CuNi44 |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | Carton/Wooden Case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 500 tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | CuNi44 Strip | Chemical Composition (wt%) | Cu: 55.0-57.0%; Ni: 43.0-45.0%; Fe: ≤0.5%; Mn: ≤1.0%; Si: ≤0.1%; C: ≤0.05% |
|---|---|---|---|
| Thickness Range | 0.01mm - 2.0mm | Width Range | 5mm - 600mm |
| Temper Options | Soft (annealed), Half-hard, Hard (cold-rolled) | Tensile Strength | Soft: 450-500 MPa; Half-hard: 500-550 MPa; Hard: 550-600 MPa |
| Yield Strength | Soft: 150-200 MPa; Half-hard: 300-350 MPa; Hard: 450-500 MPa | Elongation (25°C) | Soft: ≥25%; Half-hard: 15-20%; Hard: ≤10% |
| Highlight | CuNi44 corrosion resistant strip,Copper Nickel alloy NC050 strip,6J40 high performance alloy strip |
||
You can tick the products you need and communicate with us in the message board.
Product Description

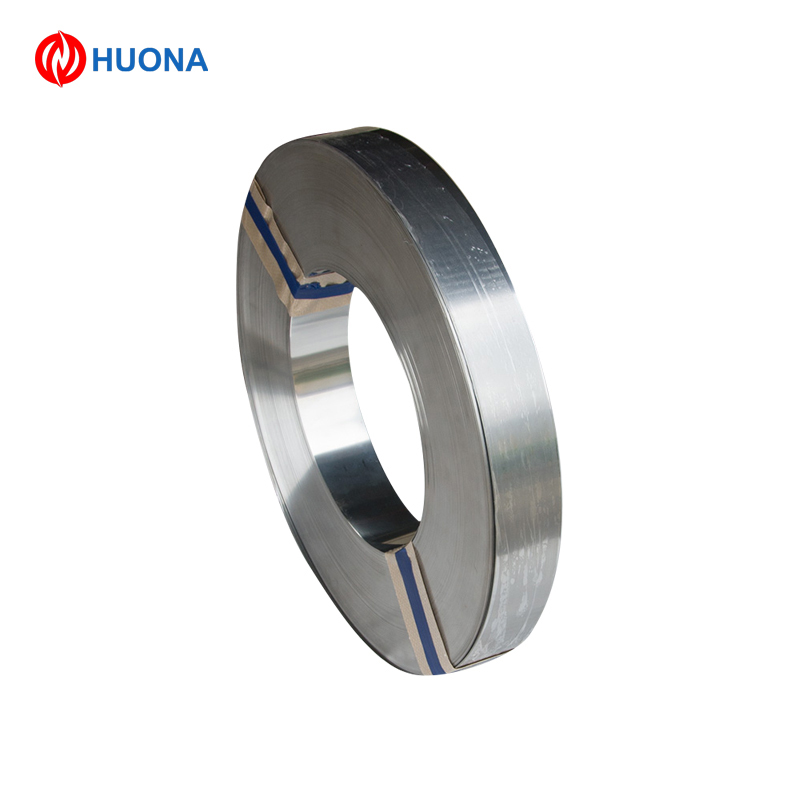

Huona CuNi44/NC050/6J40 Strip Superior Corrosion Resistance
Product Overview
CuNi44 strip, a high-performance copper-nickel alloy strip developed and manufactured by Huona New Material, features a nominal nickel content of 44% with copper as the base metal. Leveraging our advanced cold-rolling and precision annealing technologies, this strip achieves tight dimensional tolerances and consistent material properties across batches. It integrates exceptional electrical resistance stability, superior corrosion resistance, and excellent formability--striking a perfect balance for precision electrical components, sensor elements, and industrial hardware that demand long-term reliability.
Standard Designations
- Alloy Grade: CuNi44 (Copper-Nickel 44)
- UNS Number: C71500
- International Standards: Complies with DIN 17664, ASTM B122, and GB/T 2059
- Form: Rolled flat strip (custom profiles available upon request)
- Manufacturer: Huona New Material, certified to ISO 9001 and RoHS for quality and environmental compliance
Key Advantages (vs. Similar Alloys)
- Ultra-Stable Electrical Resistance: Resistivity of 49 ± 2 μΩ*cm at 20°C and low temperature coefficient of resistance (TCR: ±40 ppm/°C, -50°C to 150°C)--far superior to CuNi30 (TCR ±50 ppm/°C) and pure copper
- Superior Corrosion Resistance: Withstands atmospheric corrosion, freshwater, and mild chemical environments; passes 1000-hour ASTM B117 salt spray testing with negligible oxidation
- Excellent Formability: High ductility enables cold rolling to thin gauges (0.01mm) and complex stamping without cracking
- Balanced Mechanical Properties: Tensile strength of 450-550 MPa (annealed) and elongation ≥25%
- Cost-Effective Precision: Offers performance comparable to precious metal alloys at a lower cost
Technical Specifications
| Attribute | Value (Typical) |
|---|---|
| Chemical Composition (wt%) | Cu: 55.0-57.0%; Ni: 43.0-45.0%; Fe: ≤0.5%; Mn: ≤1.0%; Si: ≤0.1%; C: ≤0.05% |
| Thickness Range | 0.01mm - 2.0mm (tolerance: ±0.0005mm for ≤0.1mm; ±0.001mm for >0.1mm) |
| Width Range | 5mm - 600mm (tolerance: ±0.05mm for ≤100mm; ±0.1mm for >100mm) |
| Temper Options | Soft (annealed), Half-hard, Hard (cold-rolled) |
| Tensile Strength | Soft: 450-500 MPa; Half-hard: 500-550 MPa; Hard: 550-600 MPa |
| Yield Strength | Soft: 150-200 MPa; Half-hard: 300-350 MPa; Hard: 450-500 MPa |
| Elongation (25°C) | Soft: ≥25%; Half-hard: 15-20%; Hard: ≤10% |
| Hardness (HV) | Soft: 120-140; Half-hard: 160-180; Hard: 200-220 |
| Resistivity (20°C) | 49 ± 2 μΩ*cm |
| Thermal Conductivity (20°C) | 22 W/(m*K) |
| Operating Temperature Range | -50°C to 300°C (continuous use) |
Product Specifications
| Item | Specification |
|---|---|
| Surface Finish | Bright annealed (Ra ≤0.2μm), matte (Ra ≤0.8μm), or polished (Ra ≤0.1μm) |
| Flatness | ≤0.05mm/m (for thickness ≤0.5mm); ≤0.1mm/m (for thickness >0.5mm) |
| Machinability | Excellent (compatible with CNC cutting, stamping, bending, and etching) |
| Weldability | Suitable for TIG/MIG welding and soldering (forms corrosion-resistant joints) |
| Packaging | Vacuum-sealed in anti-oxidation bags with desiccants; wooden spools (for rolls) or cartons (for cut sheets) |
| Customization | Slitting to narrow widths (≥5mm), cut-to-length pieces, special tempers, or anti-tarnish coating |
Typical Applications
- Electrical Components: Precision wirewound resistors, current shunts, and potentiometer elements
- Sensors & Instrumentation: Strain gauge grids, temperature sensor substrates, and pressure transducers
- Industrial Hardware: Corrosion-resistant clips, terminals, and connectors for marine, chemical, and HVAC systems
- Medical Devices: Miniature components in diagnostic equipment and wearable sensors
- Aerospace & Automotive: Low-power heating elements and electrical contacts in avionics and electric vehicle control systems
Huona New Material implements strict quality control for CuNi44 strip: each batch undergoes XRF chemical composition analysis, mechanical property testing (tensile, hardness), and dimensional inspection (laser micrometry). Free samples (100mm×100mm) and material test reports (MTR) are available upon request. Our technical team provides tailored support--including temper selection for stamping, etching parameter optimization, and corrosion protection recommendations--to help customers maximize the performance of CuNi44 in their applications.
