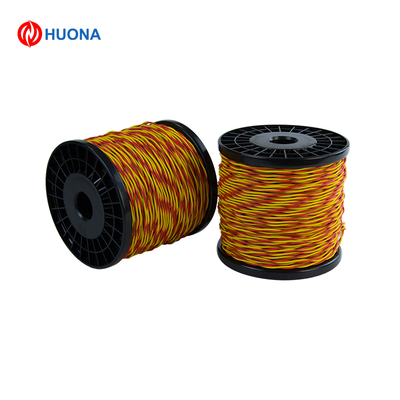

Type KCA 2*0.71 Thermocouple Cable with Fiberglass Insulation
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type KCA |
| Minimum Order Quantity | 200m |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 300000m per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Type KCA Thermocouple Cable | Positive | Iron |
|---|---|---|---|
| Negative | Constantan22 | Diameter | 0.71mm (tolerance: ±0.02mm) |
| Insulation Material | Fiberglass | Temperature Range | Continuous: -60°C To 450°C; Short-term: Up To 550°C |
| Resistance At 20°C | ≤35Ω/km (per Conductor) | Cable Structure | 2-core |
| Highlight | Type KCA thermocouple cable with fiberglass,0.71mm thermocouple wire with insulation,fiberglass insulated Type KCA cable |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Type KCA 2*0.71 Thermocouple Cable with Fiberglass Insulation
Product Attributes
| Attribute | Value |
|---|---|
| Product Name | Type KCA Thermocouple Cable |
| Positive | Iron |
| Negative | Constantan22 |
| Diameter | 0.71mm (tolerance: ±0.02mm) |
| Insulation Material | Fiberglass |
| Temperature Range | Continuous: -60°C to 450°C; Short-term: up to 550°C |
| Resistance at 20°C | ≤35Ω/km (per conductor) |
| Cable Structure | 2-core |
Product Overview
The Type KCA 2*0.71 thermocouple cable, expertly crafted by Huona New Material, is engineered for precise temperature measurement across diverse industrial applications. Featuring Iron-Constantan22 conductors (0.71mm diameter) with high-quality fiberglass insulation in red and yellow colors, this cable offers a reliable and cost-effective solution for temperature sensing.
Standard Designations
- Thermocouple Type: KCA (compensating cable for Type K thermocouples)
- Conductor Specification: 2*0.71mm Iron-Constantan22 conductors
- Insulation Standard: Fiberglass insulation meets IEC 60751 and ASTM D2307 standards
- Manufacturer: Huona New Material (ISO 9001 certified)
Key Advantages
- Cost-Effective Precision: Iron-Constantan22 conductors provide budget-friendly performance without sacrificing quality
- High-Temperature Resilience: Continuous operation from -60°C to 450°C (short-term up to 550°C)
- Durability: Fiberglass braid resists abrasion, chemical corrosion, and thermal aging
- Flame-Retardant: Low smoke emission properties enhance safety in high-risk environments
- Efficient Signal Transmission: Optimized conductors minimize signal loss with color-coded insulation for easy installation
Technical Specifications
| Conductor Material | Positive: Iron; Negative: Constantan22 |
| Conductor Diameter | 0.71mm (tolerance: ±0.02mm) |
| Insulation Material | Fiberglass (red for positive, yellow for negative) |
| Insulation Thickness | 0.3mm - 0.5mm |
| Overall Cable Diameter | 2.2mm - 2.8mm |
| Temperature Range | Continuous: -60°C to 450°C; Short-term: up to 550°C |
| Resistance at 20°C | ≤35Ω/km (per conductor) |
| Bending Radius | Static: ≥8× cable diameter; Dynamic: ≥12× cable diameter |
Product Specifications
| Cable Structure | 2-core |
| Length per Spool | 100m, 200m, 300m (custom lengths available) |
| Moisture Resistance | Water-resistant |
| Packaging | Plastic spools with moisture-proof wrapping |
Typical Applications
- Industrial furnaces and heat treatment processes
- Metal smelting and casting operations
- Ceramic and glass manufacturing kilns
- Automotive and aerospace engine testing
Huona New Material maintains strict quality control for every batch of thermocouple cables, with comprehensive thermal stability and insulation resistance testing. Free samples (1m length) and technical datasheets are available. Our technical team offers expert advice for specific application requirements.
