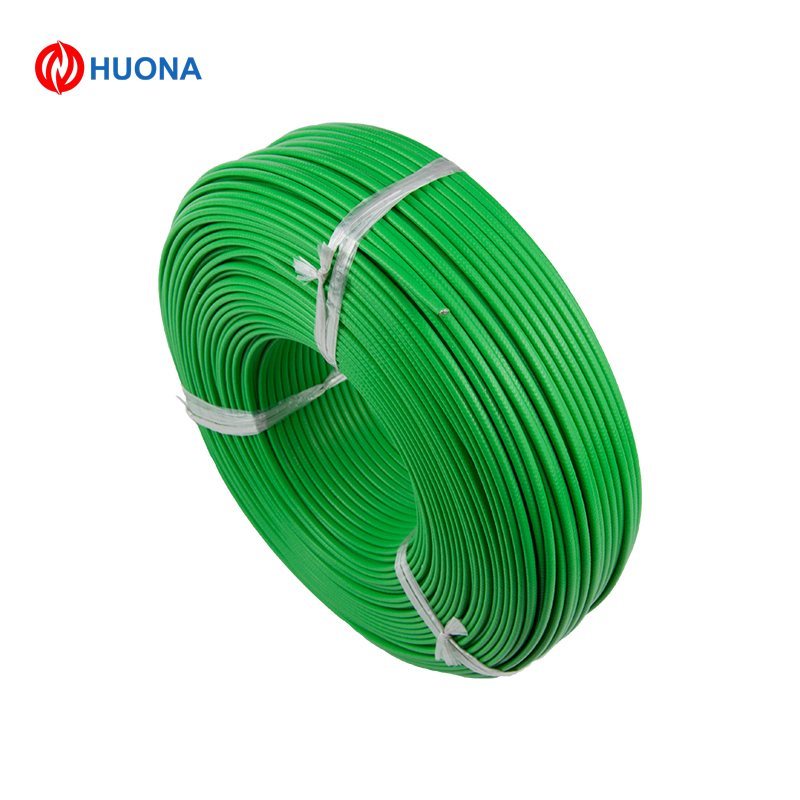

Type K Silicone Thermocouple Compensation Cable
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type K |
| Minimum Order Quantity | 200m |
| Price | Negotiable |
| Packaging Details | on Reel, Carton Box |
| Delivery Time | 5-21days |
| Payment Terms | L/C,Western Union,T/T,MoneyGram |
| Supply Ability | 500 tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Type K thermocouple cable,silicone thermocouple wire,thermocouple compensation cable |
||
|---|---|---|---|
You can tick the products you need and communicate with us in the message board.
Product Description
Silicone Compensation Type K Thermocouple Cable
Product Overview
Silicone compensation Type K thermocouple cable extends signals from Type K thermocouples (Chromel-Alumel) to measuring instruments. Featuring compensation alloy conductors (copper-nickel for positive, nickel-manganese for negative) that replicate Type K thermoelectric properties, ensuring precise temperature signal transmission. The silicone insulation and jacket provide exceptional high-temperature resistance and flexibility for industrial environments.
Standard Designations
- Thermocouple Type: K (compensation cable)
- IEC Standard: IEC 60584-3 (compensation cables for thermocouples)
- Silicone Insulation Standard: UL 94 V-0 flammability rating
- Color Coding: Positive (yellow), Negative (red) per IEC standards
Key Features
- High-Temperature Resistance: Continuous operation from -60°C to 200°C (250°C short-term)
- Signal Accuracy: ≤2.5μV/°C EMF deviation at 100°C vs. Type K thermocouple
- Flexibility: Minimum bending radius ≥5× cable diameter
- Chemical Resistance: Withstands oils, acids, and ozone in harsh environments
- Electrical Insulation: ≥100 MΩ*km at 20°C
Technical Specifications
| Part Number: K-SR-SR-0.81R | |
|---|---|
| Conductor |
Material: NiCr.(+)/NiAl.(-)
Size: 26/0.2mm
O.D.(Ref): 1.20mm
|
| Insulation |
Material: Silicone rubber
Thickness: 0.50mm
O.D.(Ref): 2.20±0.05mm
Color: Green(+)/White(-)
|
| Lay Up |
2 cores twisted
O.D.(Ref): 4.40±0.1mm
|
| Jacket |
Material: Silicone rubber
Thickness: 0.80mm
O.D.(Ref): 6.00±0.2mm
Color: Green
|
Typical Applications
Industrial furnaces and ovens
Chemical processing plants
Automotive engine bays
Power generation facilities
High-temperature HVAC systems
We also supply other thermocouple compensation cables (Type J, T, N) with various insulations (PTFE, fiberglass). Free samples and technical datasheets including EMF vs. temperature curves available upon request. Custom lengths and conductor sizes can be tailored to specific requirements.
