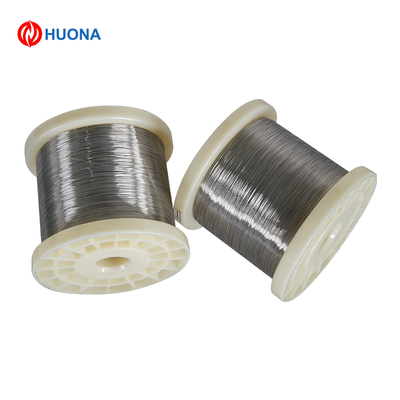

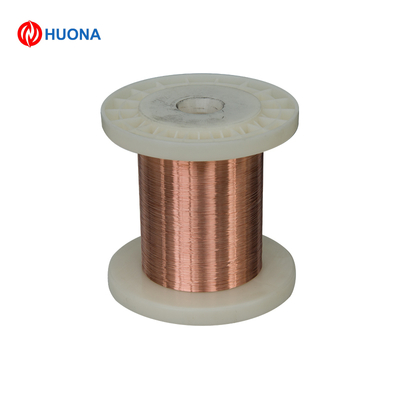

Type T Thermocouple Bare Wire Copper Constantan -200°C to 350°C
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | Type T |
| Minimum Order Quantity | 100m |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21days |
| Payment Terms | L/C,Western Union,T/T,MoneyGram |
| Supply Ability | 500 tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Type T Thermocouple Bare Wire | Positive | Copper |
|---|---|---|---|
| Negative | Constantan | Temperature Range | - 200°C To 350°C |
| Accuracy | Class 1: ±0.5°C Or ±0.4% T | Tensile Strength (Copper) | 200 - 250 MPa |
| Tensile Strength (Constantan) | 400 - 500 MPa | Resistance (at 20°C, For 0.5mm Diameter) | ≤40 Ω/km |
| Highlight | Type T thermocouple bare wire,Copper Constantan thermocouple cable,Thermocouple wire -200°C to 350°C |
||
Product Description
Type T Thermocouple Bare Wire High-Precision Temperature Sensing Wire
Key Specifications
| Product Name | Type T Thermocouple Bare Wire |
| Positive Leg | Copper |
| Negative Leg | Constantan |
| Temperature Range | -200°C to 350°C |
| Accuracy | Class 1: ±0.5°C or ±0.4% t |
| Tensile Strength (Copper) | 200-250 MPa |
| Tensile Strength (Constantan) | 400-500 MPa |
| Resistance (at 20°C, 0.5mm diameter) | ≤40 Ω/km |
Product Overview
Type T thermocouple bare wire consists of uninsulated copper (positive) and constantan (negative) conductors designed for direct temperature sensing in non-corrosive environments. This high-accuracy solution is ideal for laboratory testing, cryogenic applications, and custom sensor assemblies where insulation isn't required.
Standard Designations
- Thermocouple Type: T-type (Copper-Constantan)
- IEC Standard: IEC 60584-1
- ANSI Standard: ANSI MC96.1
- Color Coding: Positive (blue), Negative (red) per IEC standards
Key Features
- Direct thermal contact with measured objects via uninsulated design
- High accuracy across -200°C to 350°C range
- Exceptional stability in cryogenic environments
- Low electrical resistance minimizes signal loss
- Compatible with standard T-type connectors
Technical Specifications
| Temperature Range | -200°C to 350°C (continuous); 400°C (short-term) |
| EMF Output at 100°C | 4.277 mV (reference junction at 0°C) |
| Accuracy | Class 1: ±0.5°C or ±0.4% of reading |
| Available Wire Diameters | 0.12mm, 0.2mm, 0.3mm, 0.5mm, 0.8mm, 1.0mm |
Chemical Composition
| Component | Positive Leg (Copper) | Negative Leg (Constantan) |
|---|---|---|
| Copper (Cu) | ≥99.99% | 55-60% |
| Nickel (Ni) | ≤0.002% | 40-45% |
| Iron (Fe) | ≤0.001% | ≤0.5% |
| Manganese (Mn) | ≤0.001% | ≤1.0% |
| Total Impurities | ≤0.01% | ≤1.0% |
Product Specifications
| Length per Spool | 50m, 100m, 300m, 500m, 1000m |
| Packaging | Plastic spools with moisture-proof packaging |
| Surface Finish | Annealed, bright and clean surface |
| Identification | Color-coded ends per IEC standards |
| Customization Options | Cut-to-length service, custom spool sizes, special surface cleaning |
We also offer insulated T-type thermocouple wires, matching connectors, and accessories. Free samples and technical data sheets available upon request. Custom products can be manufactured to meet specific application requirements.
