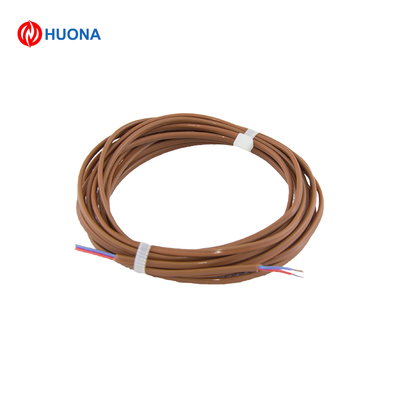

High Performance J Type Thermocouple Compensating Cable with FEP Insulation Precision Temperature Transmission
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | Type J |
| Minimum Order Quantity | 100m |
| Price | Bargain |
| Packaging Details | Carton/Woodbox |
| Delivery Time | 5-21days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 2000tons/Year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Thermocouple Type J | Positive | Iron |
|---|---|---|---|
| Negative | Constantan | Insulated Material | FEP |
| Wire Diameter | Customizable | Temperature Range | -40℃-750℃ |
You can tick the products you need and communicate with us in the message board.
Product Description
High Performance J Type Thermocouple Compensating Cable with FEP Insulation
Product Overview
The J-type thermocouple extension wire with FEP (Fluorinated Ethylene Propylene) insulation is a specialized cable designed for accurately transmitting thermoelectric potential from J-type thermocouples to measuring instruments. Featuring excellent electrical insulation, high-temperature resistance, and chemical resistance, this cable is ideal for industrial applications including chemical plants, power generation facilities, and food processing environments.
Key Features
- Accurate Signal Transmission: Ensures precise transfer of thermoelectric signals with minimal measurement errors
- High-Temperature Resistance: FEP insulation withstands continuous operation up to 200°C with higher short-term peaks
- Chemical Resistance: Protects against acids, alkalis, and solvents in corrosive environments
- Excellent Electrical Insulation: Reduces interference for stable signal transmission
- Flexible Design: Easy installation in tight spaces with complex routing requirements
- Durable Construction: Resistant to aging, UV radiation, and mechanical abrasion for long-term use
Technical Specifications
| Attribute | Value |
|---|---|
| Product Name | Thermocouple Type J |
| Conductor Material | Positive: Iron Negative: Constantan (Nickel-Copper alloy) |
| Insulated Material | FEP |
| Wire Diameter | Customizable (standard gauges: AWG 18, 20, 22) |
| Temperature Range | -40℃ to 750℃ |
| Color Coding | Positive: Red Negative: Blue (customizable) |
| Resistance per Unit Length | Varies by conductor gauge (e.g., AWG 20: 16.19 Ω/km at 20°C) |
Product Specifications
| Item | Specification |
|---|---|
| Wire Diameter | Customizable (e.g., AWG 18 ≈ 1.02mm) |
| Length | Standard rolls: 100m, 200m, 500m (custom lengths available) |
| Packaging | Spool-wound (plastic or cardboard), cartons or pallets for shipping |
| Connection Terminals | Optional pre-crimped terminals (bullet, spade) or bare-ended |
Chemical Composition
- Positive Conductor (Iron): Primarily iron with trace elements for optimal electrical/mechanical properties
- Negative Conductor (Constantan): 60% copper, 40% nickel with stabilizing alloying elements
- FEP Insulation: Fluoropolymer with high fluorine/carbon content for superior performance
We also supply K-type, T-type thermocouple wires and related accessories. Free samples and technical datasheets available. Custom specifications including insulation materials, conductor gauges, and packaging can be tailored to your requirements.
