CuNi40 Constantan Enameled Wire 0.1mm Polyimide 220 Temper
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | CuNi40 |
| Minimum Order Quantity | 5 |
| Price | Negotiable |
| Packaging Details | Carton/Woodbox |
| Delivery Time | 5-21days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 2000tons/Year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Copper Nickel | Application | Transformer, Instrument, Electrical Equipment, Motor |
|---|---|---|---|
| Shape | Round Wire | Density | 8.9g/cm³ |
| Extensibility | ≥15 | Elongation | >25 |
| Package Size | 20*20*20 | Material | CuNiMn Alloy |
| Highlight | CuNi40 enameled wire 0.1mm,Constantan wire polyimide insulation,Copper nickel alloy wire 220 temper |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Product Description

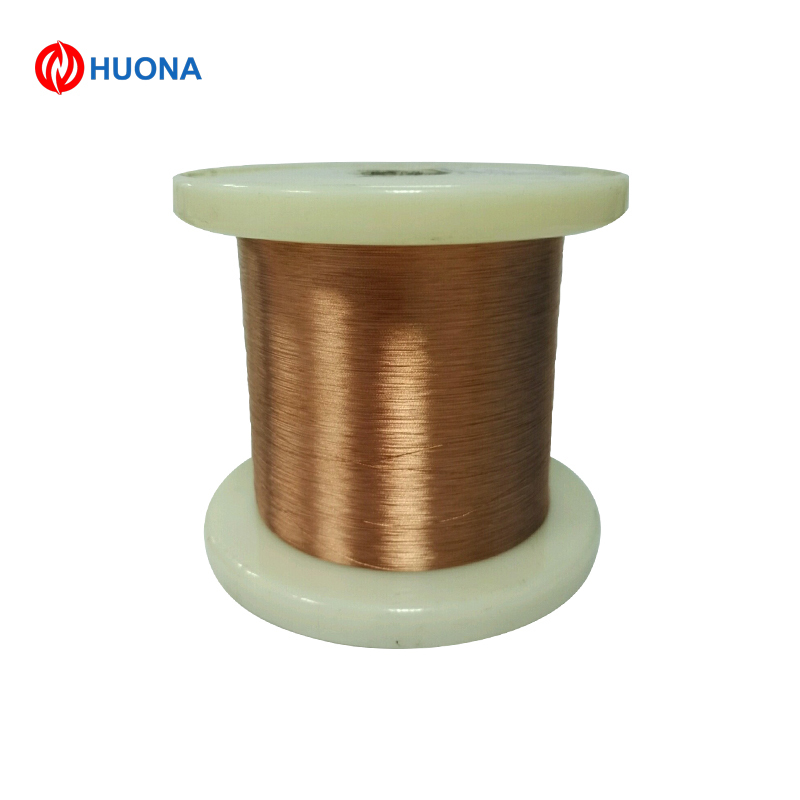

CuNi40 / Constantan Enamelled Wire 0.1mm 220 Temper Polyimide
Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Tpye of Insulation:
1) Polyester resistance wire , class 130
2) Modified polyester resistance wire , class 155
3) Polyesterimide resistance wire , class 180
4) Polyester (imide) coated with polyamide-imide resistance wire , class 200
5) Polyimide resistance wire , class 220
| Constantan 6J40 | New Constantan | Manganin | Manganin | Manganin | ||
| 6J11 | 6J12 | 6J8 | 6J13 | |||
| Main Chemical Elements % | Mn | 1~2 | 10.5~12.5 | 11~13 | 8~10 | 11~13 |
| Ni | 39~41 | - | 2~3 | - | 2~5 | |
| Cu | REST | REST | REST | REST | REST | |
| Al2.5~4.5 Fe1.0~1.6 | Si1~2 | |||||
| Temperature Range for Components | 5~500 | 5~500 | 5~45 | 10~80 | 10~80 | |
| Density | 8.88 | 8 | 8.44 | 8.7 | 8.4 | |
| g/cm3 | ||||||
| Resistivity | 0.48 | 0.49 | 0.47 | 0.35 | 0.44 | |
| μΩ.m,20 | ±0.03 | ±0.03 | ±0.03 | ±0.05 | ±0.04 | |
| Extensibility | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 | |
| %Φ0.5 | ||||||
| Resistance | -40~+40 | -80~+80 | -3~+20 | -5~+10 | 0~+40 | |
| Temperature | ||||||
| Quotiety | ||||||
| α,10 -6 / | ||||||
| Thermoelectromotive | 45 | 2 | 1 | 2 | 2 | |
| force to Copper | ||||||
| μv/(0~100) |
||||||
Tpye of Bare Wire
|
main property type |
|
Cuni1 |
CuNI2 |
CuNI6 |
CuNI10 |
CuNi19 |
CuNi23 |
CuNi30 |
CuNi34 |
CuNI44 |
|
main chemical composition |
Ni |
1 |
2 |
6 |
10 |
19 |
23 |
30 |
34 |
44 |
|
|
MN |
/ |
/ |
/ |
/ |
0.5 |
0.5 |
1.0 |
1.0 |
1.0 |
|
|
CU |
rest |
rest |
rest |
rest |
rest |
rest |
rest |
rest |
rest |
|
max working temperature |
|
/ |
200 |
220 |
250 |
300 |
300 |
350 |
350 |
400 |
|
density g/cm3 |
|
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
|
resistivity at 20 °c |
|
0.03 |
0.05 |
0.1 |
0.15 |
0.25 |
0.3 |
0.35 |
0.40 |
0.49 |
|
temperature coefficient of resistance |
|
<100 |
<120 |
<60 |
<50 |
<25 |
<16 |
<10 |
-0 |
<-6 |
|
tensile strength mpa |
|
>210 |
>220 |
>250 |
>290 |
>340 |
>350 |
>400 |
>400 |
>420 |
|
elongation |
|
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
|
melting point °c |
|
1085 |
1090 |
1095 |
1100 |
1135 |
1150 |
1170 |
1180 |
1280 |
|
coefficient of conductivity |
|
145 |
130 |
92 |
59 |
38 |
33 |
27 |
25 |
23 |
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Package Gross Weight
5.000kg
