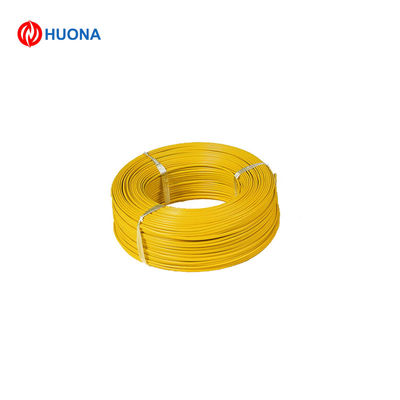

Type K Nicr-Nial Fiberglass Insulated Thermocouple Wire Used for Thermostat

Place of Origin	Shanghai
Brand Name	Huona
Certification	ISO9001
Model Number	Type K
Minimum Order Quantity	5
Price	Bargain
Packaging Details	on Reel, Carton Box
Delivery Time	5-21days
Payment Terms	L/C,T/T,Western Union,MoneyGram
Supply Ability	1000 Tons/ Year

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Conductor Material	KC	Sheath Material	Fiberglass
Material Shape	Round Wire	Usage	Thermocouple Sensors
Section Area	0.5mm2, 0.75mm2, 1.0mm2	Dia	0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mm
Wire Shape	Round/Flat	Mainly Usage	Measure The Temperature Of Molten Steel
Highlight	fiberglass thermocouple cable , fiberglass thermocouple extension wire , insulated thermocouple cable

Leave a Message

Product Description

Type K NiCr - NiAl Fiberglass Insulated Thermocouple Wire for Thermostat

Product Overview

The Type K NiCr - NiAl fiberglass insulated thermocouple wire is specifically designed for thermostats and serves as a crucial component in temperature measurement systems.

Product Features

Features	Details
Insulation Material	Utilizes fiberglass insulation, which offers excellent heat resistance and electrical insulation properties. It can operate stably in high - temperature environments, effectively preventing electrical failures such as short - circuits.
Thermocouple Type	Belongs to the Type K thermocouple wire, made of NiCr - NiAl alloy. It can accurately sense temperature changes and output corresponding electrical signals.

Production Capacity and Types

HUONA has strong production capabilities and can produce a variety of thermocouple compensating cables, including but not limited to:

Type KX
Type NX
Type EX
Type JX
Type NC
Type TX
Type SC/RC
Type KCA
Type KCB

Meanwhile, we also offer cables with different insulation materials, such as PVC, PTFE, silicone, and fiberglass, to meet the requirements of various application scenarios.

Working Principle

When the temperature changes, the compensating cable generates a small voltage and transmits it to the connected thermocouple, enabling temperature measurement. Thermocouple compensating cables can also be called instrumentation cables and are commonly used for process temperature measurement. Their structure is similar to that of pair instrumentation cables, but the conductor materials are different. Thermocouples are used to sense temperature and are connected to pyrometers for temperature indication and control. The electrical connection between thermocouples and pyrometers is achieved through thermocouple extension cables / thermocouple compensating cables. The conductors of these thermocouple cables are required to have similar thermo - electric (emf) properties as those of the thermocouples used for temperature sensing.

Compliance with Standards

Our thermocouple compensating products are manufactured in strict accordance with the following standards:

GB/T 4990 - 2010: "Alloy wires of extension and compensating cables for thermocouples" (Chinese National Standard)
IEC584 - 3: "Thermocouples - Part 3 - Compensating wires" (International Standard)

Explanation of Compensating Wire Designations

The designations of compensating wires are represented as: thermocouple code + C/X, for example, SC, KX.

X: Short for "extension", indicating that the alloy of the compensating wire is the same as that of the thermocouple.
C: Short for "compensation", indicating that the alloy of the compensating wire has similar characteristics to that of the thermocouple within a certain temperature range.

Detailed Parameter of thermocouple cable

Thermocouple Code	Comp. Type	Comp. Wire Name	Positive		Negative
Thermocouple Code	Comp. Type	Comp. Wire Name	Name	Code	Name	Code
S	SC	copper-constantan 0.6	copper	SPC	constantan 0.6	SNC
R	RC	copper-constantan 0.6	copper	RPC	constantan 0.6	RNC
K	KCA	Iron-constantan22	Iron	KPCA	constantan22	KNCA
K	KCB	copper-constantan 40	copper	KPCB	constantan 40	KNCB
K	KX	Chromel10-NiSi3	Chromel10	KPX	NiSi3	KNX
N	NC	Iron-constantan 18	Iron	NPC	constantan 18	NNC
N	NX	NiCr14Si-NiSi4Mg	NiCr14Si	NPX	NiSi4Mg	NNX
E	EX	NiCr10-Constantan45	NiCr10	EPX	Constantan45	ENX
J	JX	Iron-constantan 45	Iron	JPX	constantan 45	JNX
T	TX	copper-constantan 45	copper	TPX	constantan 45	TNX

7x0.2mm Type K thermocouple Compensating Wire / Cable

The color of Insulation and Sheath
Type	Insulation Color		Sheath Color
	Positive	Negative	G		H
	Positive	Negative	/	S	/	S
SC/RC	RED	GREEN	BLACK	GRAY	BLACK	YELLOW
KCA	RED	BLUE	BLACK	GRAY	BLACK	YELLOW
KCB	RED	BLUE	BLACK	GRAY	BLACK	YELLOW
KX	RED	BLACK	BLACK	GRAY	BLACK	YELLOW
NC	RED	GRAY	BLACK	GRAY	BLACK	YELLOW
NX	RED	GRAY	BLACK	GRAY	BLACK	YELLOW
EX	RED	BROWN	BLACK	GRAY	BLACK	YELLOW
JX	RED	PURPLE	BLACK	GRAY	BLACK	YELLOW
TX	RED	WHITE	BLACK	GRAY	BLACK	YELLOW
Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign

The insulation material can be tailor made as per your request.
