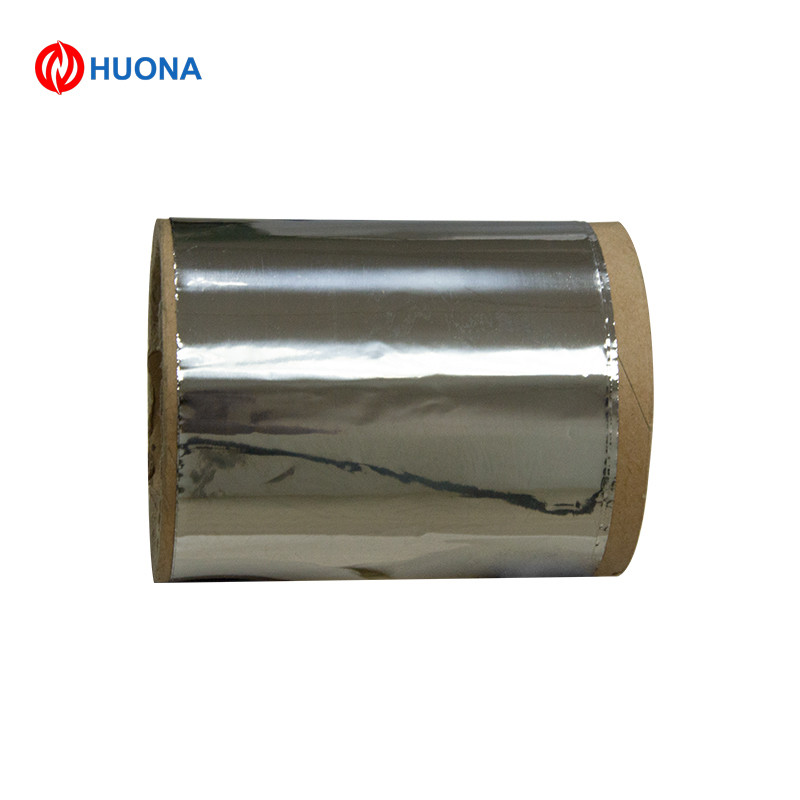

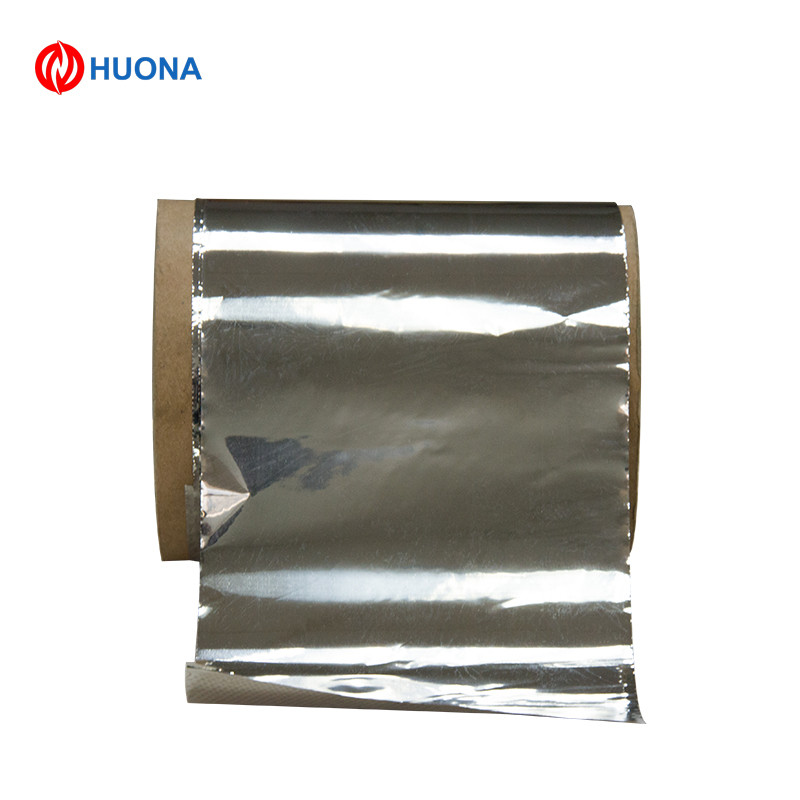

0.02 X 200~250 mm Constantan CuNi44 Copper Nickel Resistance Foil /Strip
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | CuNi44 |
| Minimum Order Quantity | 30KG |
| Price | Bargain |
| Packaging Details | Carton, Wooden Case |
| Delivery Time | 5-60DAYS |
| Payment Terms | L/C,D/A,Western Union,MoneyGram |
| Supply Ability | 1000 Ton/Year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | CuNi44 | Density | 8.9g/cm3 |
|---|---|---|---|
| Elongation | >25% | Shape | Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil |
| Resistivity | 0.49 | Tensil Strength | >420MPa |
| Thickness | 0.005-0.1mm | Width | 0.5-250mm |
| Specification | 0.02x110mm | Origin | China |
| Production Capacity | 1000 Ton/Year | Trademark | Huona |
| Highlight | cuni44 copper nickel alloy,cuni44 copper nickel strip,420mpa copper nickel alloy |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Product Description
0.02x110mm CuNi Alloy Constantan Foil
Constantan Definition
Resistance alloy with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". CuNi44 Alloy wire also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits. CuNi44/ CuNi40 /CuNi45 Constantan Copper Nickel Alloy Wire is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.
Chemical Content(%) CuNi44
|
Ni |
Mn |
Fe |
Si |
Cu |
Other |
ROHS Directive |
|||
|
Cd |
Pb |
Hg |
Cr |
||||||
|
44 |
1.50% |
0.5 |
- |
Bal |
- |
ND |
ND |
ND |
ND |
Mechanical Properties CuNi44
|
Max Continuous Service Temp |
400 ºC |
|
Resistivity at 20ºC |
0.49 ± 5% ohm*mm2/m |
|
Density |
8.9 g/cm3 |
|
Temperature Coefficient of Resistance |
< -6 ×10-6/ºC |
|
EMF VS Cu (0~100ºC) |
-43 μV/ºC |
|
Melting Point |
1280 ºC |
|
Tensile Strength |
Min 420 Mpa |
|
Elongation |
Min 25% |
|
Micrographic Structure |
Austenite |
|
Magnetic Property |
Non. |
Product features:
1)Excellent anti-oxidation and mechanical strength at high temperature;
2)High resistivity and low temperature coefficient of resistance;
3)Excellent reelability and forming performance;
4)Excellent welding performace
