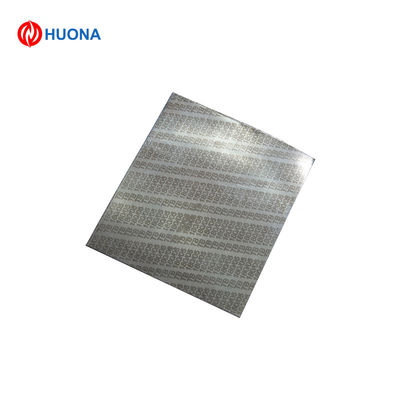

Bimetallic Alloy Sheet Bimetal Strip 5j20110 Fpa721-110 Tb 208/110 DIN Tb20110 Imphy 108sp
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | 5J20110 |
| Minimum Order Quantity | 5 |
| Price | Bargain |
| Packaging Details | The Wooden Case |
| Delivery Time | 5-21days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 500 Ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | 5J20110 | OEM | Yes |
|---|---|---|---|
| Allows The Use Of Temperature | -70~200 | Specification | Discuss |
| Modulus Of Elasticity | 113000 | Transport Package | The Wooden Case |
| Linear Temperature | -20~150 | Density (g/cm3) | 7.7 |
| Highlight | 5j20110 Bimetallic Alloy Sheet,Durable Bimetallic Alloy Sheet,5j20110 Low Expansion Alloy |
||
Product Description
Bimetallic Alloy Sheet Bimetal Strip 5J20110 FPA721-110 TB 208/110 DIN TB20110 Imphy 108SP
Bimetallic alloy strip 5J20110 FPA721-110 TB 208/110 TRUFLEX for thermal control switches and electrical applications.
Product Overview
Common Names: Truflex P675R, Chace 7500, Telcon200, Kan 200
Bimetallic 108SP offers exceptional thermal sensitivity and higher resistivity with lower modulus of elasticity and allowable stress, enabling improved instrument sensitivity, reduced size, and increased force capabilities.
Material Composition
Grade Specification
| Grade | Ka 200 |
|---|---|
| High Expansion Layer | Mn75Ni15Cu10 |
| Low Expansion Layer | Ni36 |
Chemical Composition (%)
Ni36 Grade:
| C | Si | Mn | P | S | Ni | Cr | Cu | Fe |
|---|---|---|---|---|---|---|---|---|
| ≤0.05 | ≤0.3 | ≤0.6 | ≤0.02 | ≤0.02 | 35~37 | - | - | Bal. |
Mn72Ni10Cu18 Grade:
| C | Si | Mn | P | S | Ni | Cr | Cu | Fe |
|---|---|---|---|---|---|---|---|---|
| ≤0.05 | ≤0.5 | Bal. | ≤0.02 | ≤0.02 | 9~11 | - | 17~19 | ≤0.8 |
Physical Properties
| Property | Value |
|---|---|
| Density (g/cm³) | 7.7 |
| Electrical resistivity at 20°C (ohm mm²/m) | 1.13 ±5% |
| Thermal conductivity, λ/W/(m*°C) | 6 |
| Elastic Modulus, E/GPa | 113~142 |
| Bending K / 10⁻⁶ °C⁻¹ (20~135°C) | 20.8 |
| Temperature bending rate F/(20~130°C)10⁻⁶°C⁻¹ | 39.0%±5% |
| Allowable temperature (°C) | -70~200 |
| Linear temperature (°C) | -20~150 |
Applications
Primarily used as non-magnetic non-matching ceramic sealing material in gyroscopes and other electric vacuum devices.
Supply Specifications
| Alloys Name | Type | Dimension |
|---|---|---|
| Kan 200 | Strip | W= 5~120mm | T= 0.1mm |
