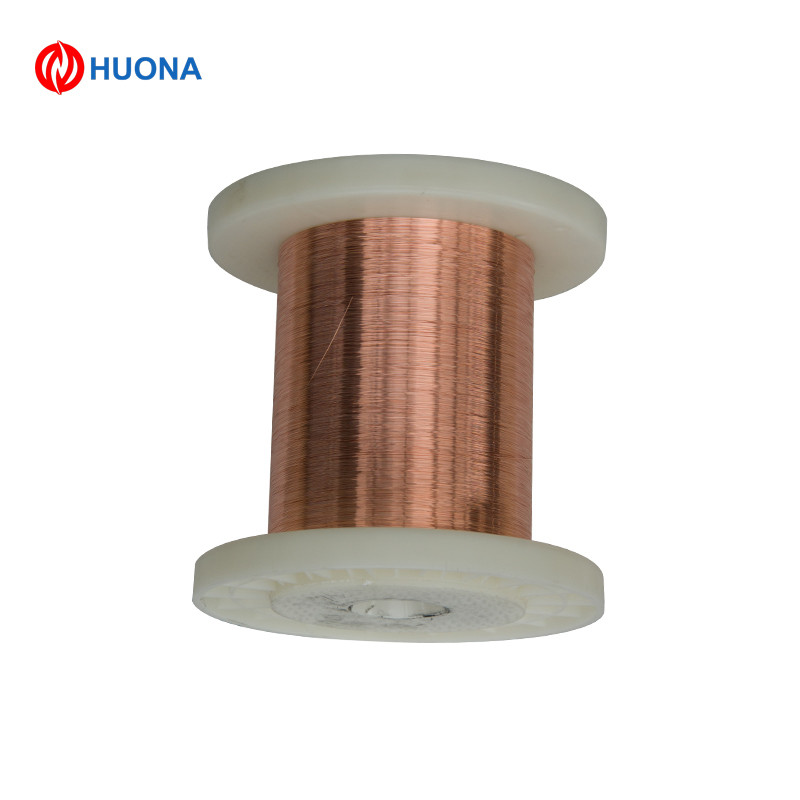

CuNi2 Alloy (NC005) / Cuprothal 05 Copper Nickel Alloy Resistance Wire
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | CuNi2 |
| Minimum Order Quantity | 5 |
| Price | Negotiable |
| Packaging Details | Cartons/Woodbox |
| Delivery Time | 5-21days |
| Payment Terms | L/C,T/T,MoneyGram,Western Union |
| Supply Ability | 500 tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | CuNi2 | Density | 8.9 G/cm3 |
|---|---|---|---|
| Resisivity At 20℃ | 0.05±10%ohm Mm2/m | Max Continuous Service Temp | 200℃ |
| Transport Package | Cartons | Surface | Bright |
| Elongation(anneal) | 25%(min) | Melting Point | 1090℃ |
| Highlight | cuni2 copper nickel alloy,cuni2 copper nickel strip,alloy copper nickel strip |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Chemical Content, %
| Ni | Mn | Fe | Si | Cu | Other | ROHS Directive Cd | ROHS Directive Pb | ROHS Directive Hg | ROHS Directive Cr |
|---|---|---|---|---|---|---|---|---|---|
| 2.0 | - | - | - | Bal | - | ND | ND | ND | ND |
Mechanical Properties
| Property Name | Value |
|---|---|
| Max Continuous Service Temp | 200℃ |
| Resisivity at 20℃ | 0.05±10%ohm mm2/m |
| Density | 8.9 g/cm3 |
| Thermal Conductivity | <120 |
| Melting Point | 1090℃ |
| Tensile Strength, N/mm2 Annealed,Soft | 140~310 Mpa |
| Tensile Strength, N/mm2 Cold Rolled | 280~620 Mpa |
| Elongation(anneal) | 25%(min) |
| Elongation(cold rolled) | 2%(min) |
| EMF vs Cu, μV/ºC (0~100ºC) | -12 |
| Micrographic Structure | austenite |
| Magnetic Property | Non |
Application of CuNi2
CuNi2 low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.
