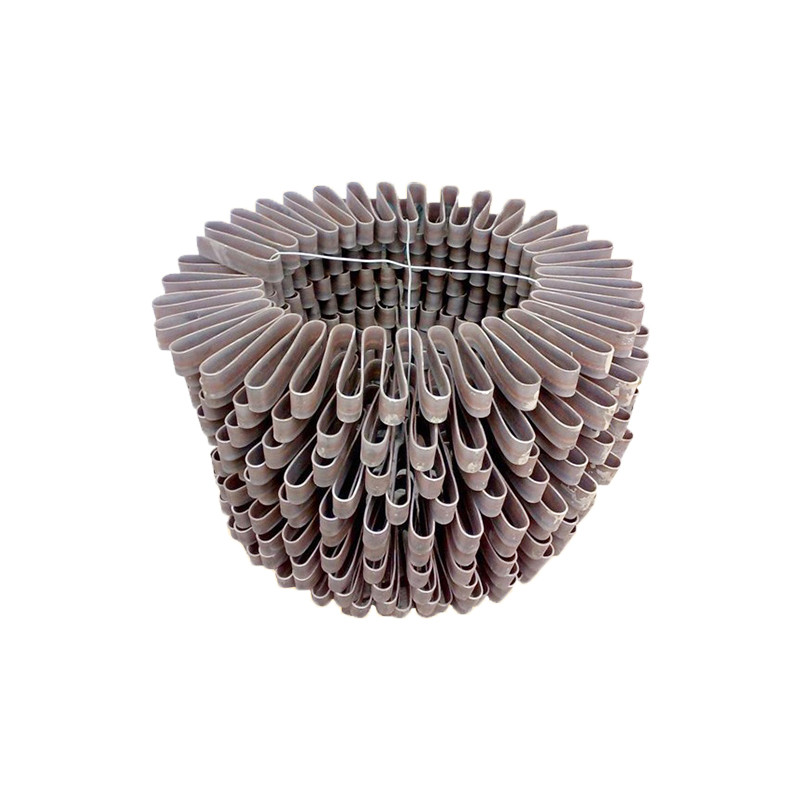

Z Shaped Furnace Annealed Wire Resistance 0cr21al6nb Hn A1 Heating Resistance Wire

Place of Origin	China
Brand Name	HUONA
Certification	ISO9001, RoHS
Model Number	0cr21al6nb
Minimum Order Quantity	1KG
Price	Need to negotiate
Packaging Details	Spool, Carton, Wooden Case
Delivery Time	Around a week
Payment Terms	T/T
Supply Ability	300 Tons/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Z-Shaped Furnace Annealed Strip	Composition	0cr21al6nb
Product Shape	Z-shaped	Product Type	Strip
Product Usage	Heating Resistance Element For Urnace	Sample	Support
Highlight	Integrated Nichrome Wire For Heating Element , Integrated High Temperature Alloy , 220V Nichrome Wire For Heating Element

Leave a Message

Product Description

Company Info.

Basic Info.

Model NO.

Hn A1

Carbon Content

PCD

Hole

Chemical Composition

0cr21al6nb

Product Name

Heating Resistance Strip

Characteristics

High Resistivity, Good Oxidation Resistance

The Highest Use Temperature

1400℃

Density

7.1g/cm3

Resisivity

1.45

Elongation

>10%

Sample

Support

Transport Package

Wooden Cases or Cartons

Specification

Can customize

Trademark

HUONA

Origin

China

HS Code

7408220000

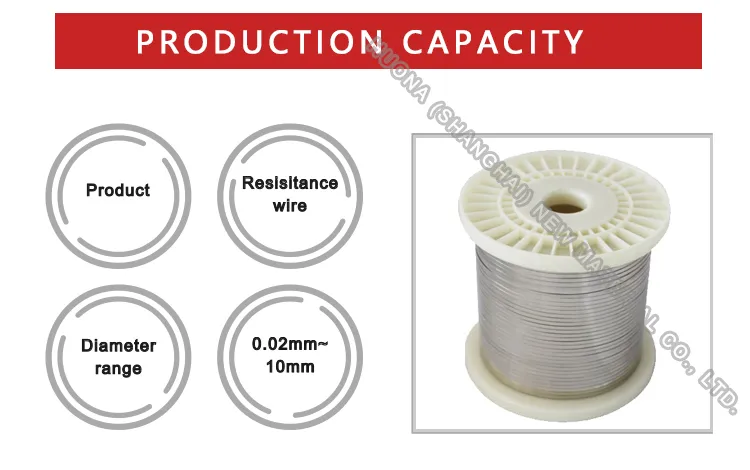

Production Capacity

300 Tons/Month

Product Description

Z-shaped Furnace annealed wire Resistance / 0cr21al6nb / Hn A1/Heating resistance wire

Kan-thal A-1 large-sized cold-drawn wire products can be used for high-temperature resistance furnace. Practice has proved that: the product process is stable, integrated performance is good. Has good high temperature oxidation resistance and longer service life; excellent winding properties at room temperature processing, ease of processing molding; little rebound resilience and so on. Processing performance is very good; operating temperature can reach 1400 ºC.
Main specifications and uses:

Conventional Product specifications: 0.5 ~ 10 mm

Uses: mainly used in powder metallurgy furnace, diffusion furnace, radiant tube heater and all kinds of high-temperature furnace heating body.

MAIN CHEMICAL ELEMENTS AND PROPERTIES

Properties Grade

25.0

6.0

Suitable

Balance

Max Continuous Service Temperature(ºC)

Diameter 1.0-3.0

Diameter large than 3.0,

1225-1350ºC

1400ºC

Resisivity 20ºC (ohm*mm2/m)

1.45

Density(g/cm³)

7.1

Approximate Melting Point( ºC)

1500

Elongation (%)

16-33

Repeatedly Bend Frequency(F/R) 20ºC

7-12

Continuous Service Time under 1350 ºC

More than 60 hours

Micrographic Structure

Ferrite

The relationship between the maximum operating temperature and the furnace atmosphere

Furnace

Dry Air

Humid Air

hydrogen-argon

Argon

Decomposition

atmosphere

gas

ammonia gas

Temp(ºC)

1400

1200

1400

950

1200

User Manual

Rated Voltage: 220V/380V

The installation process to avoid knocking, to avoid the damp, hand-held stove wire, they should wear gloves. Wire should be installed after the furnace has remained flat, and prevent surface scratches, dirt, corrosion, or improper installation, by affecting the life of

In the rated voltage to use. In strong reducing atmosphere, acid atmosphere, an atmosphere of high humidity will affect the use of life;

Temperature before use should be in dry non-corrosive atmosphere, about 1000 ºC spend a few hours, so that furnace wire protective film formed on the surface after normal use, so that can guarantee the normal life of furnace wire;

Furnace installation should ensure that the insulated wire good power to avoid touching furnace after the wire, guard against electric shock or burns.
