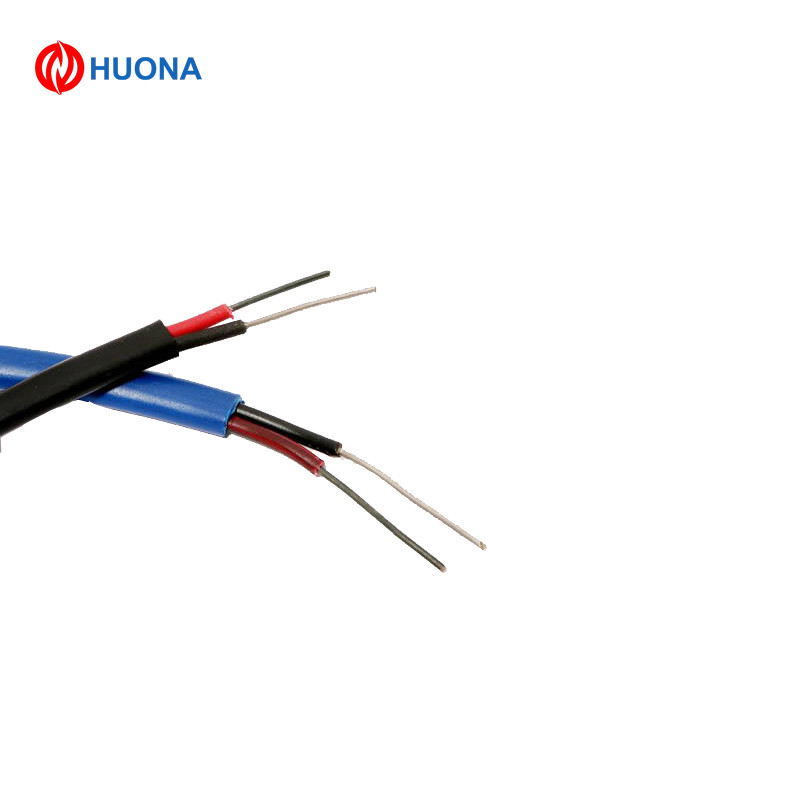

Durable Flexible Thermocouple Cable With PTFE Insulation Material

  • Durable Flexible Thermocouple Cable With PTFE Insulation Material
  • Durable Flexible Thermocouple Cable With PTFE Insulation Material
Place of Origin Shanghai
Brand Name Huona
Certification ISO 9001
Model Number Type N
Minimum Order Quantity 300meters
Price Negotiable
Packaging Details coil+ctn
Delivery Time 8-15 working days after payment confirmed
Payment Terms L/C,T/T,Western Union,MoneyGram
Supply Ability 10000m/7days

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material NiCrSi+NiSi Type N
Standard ASTM,ANSI,JIS,IEC,IEC584 Insulation Material FEP, PFA, PVC, PTFE
Size All Size Available Jacket FEP, PFA, PVC, PTFE
Highlight

Durable Flexible Thermocouple Cable

,

Durable high temperature thermocouple cable

,

PTFE Flexible Thermocouple Cable
Leave a Message
Product Description

Specifications
1.Style:Extension Wire
2.Thermocouple copper wire


Thermocouple copper wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.



Thermocouple variety and index


Thermocouple Variety and Index

Variety
Type
Measurement Range(°C)

NiCr-NiSi
K
-200-1300

NiCr-CuNi
E
-200-900

Fe-CuNi
J
-40-750

Cu-CuNi
T
-200-350

NiCrSi-NiSi
N
-200-1300

NiCr-AuFe0.07
NiCr-AuFe0.07
-270-0



Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire
Dimensions / Tolerance mm ) : 4.0+-0.25



Color code & initial calibration tolerances for thermocouple wire:

Thermocouple Type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor		 Jacket Temperature Range Standard
Limits		 Special
Limits
Iron(+) vs.
Constantan(-)		 J White/Red Brown 0°C to +285°C
285°C to +750°C		 ±2.2°C
± .75%		 ±1.1°C
± .4%
CHROMEL(+) vs.
ALUMEL(-)		 K Yellow/Red Brown -200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C		 ± 2%
±2.2°C
±2.2°C
± .75%		 ±1.1°C
± .4%
Copper(+) vs.
Constantan(-)		 T Blue/Red Brown -200°C to -65°C
-65°C to +130°C
130°C to +350°C		 ± 1.5%
±1°C
± .75%		 ± .8%
± .5°C
± .4%
CHROMEL(+) vs.
Constantan(-)		 E Purple/Red Brown -200°C to -170°C
-170°C to +250°C
250°C to +340°C
340°C+900°C		 ± 1%
±1.7°C
±1.7°C
± .5%		 ±1°C
±1°C
± .4%
± .4%


Color Code & Initial Calibration Tolerance for Extension Wire:

Extension type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor		 Jacket Temperature Range Standard
Limits		 Special
Limits
Iron (+) vs. Constantan(-) JX White/Red Black 0°C to +200°C ±2.2°C ±1.1°C
CHROMEL (+) vs. ALUMEL (-) KX Yellow/Red Yellow 0°C to +200°C ±2.2°C ±1.1°C
Copper(+) vs. Constantan(-) TX Blue/Red Blue -60°C to +100°C ±1.1°C ± .5°C
CHROMEL(+) vs. Constantan(-) EX Purple/Red Purple 0°C to +200°C ±1.7°C ±1.1°C


PVC-PVC Physical Properties:

Characteristics Insulation Jacket
Abrasion Resistance Good Good
Cut Through Resistance Good Good
Moisture Resistance Excellent Excellent
Solder Iron Resistance Poor Poor
Service Temperature 105ºC continuous
150ºC single		 105ºC continuous
150ºC single
Flame Test Self-extinguishing Self-extinguishing
